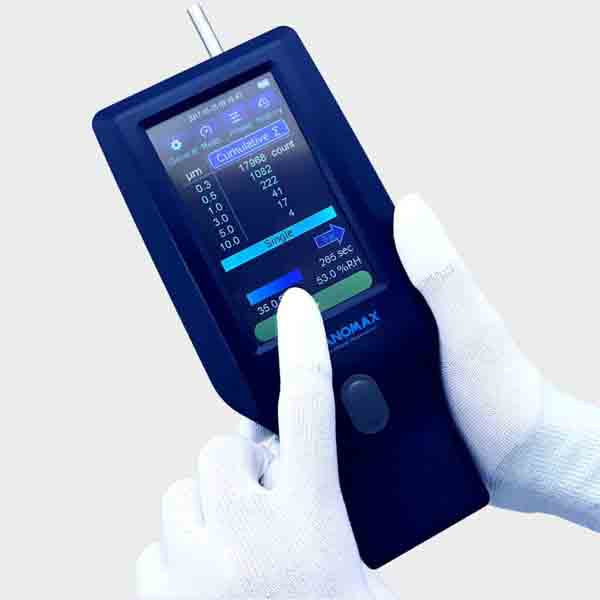

6 Channel Particle Counter - Kanomax 3889

SKU : IAQKN3889
MAKE : KANOMAX
MODEL : 3889
AVAILABILITY : IN STOCK
Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 14,500.00
AED 14,500.00 - AED 14,500.00
Current price AED 14,500.00
(Including VAT)

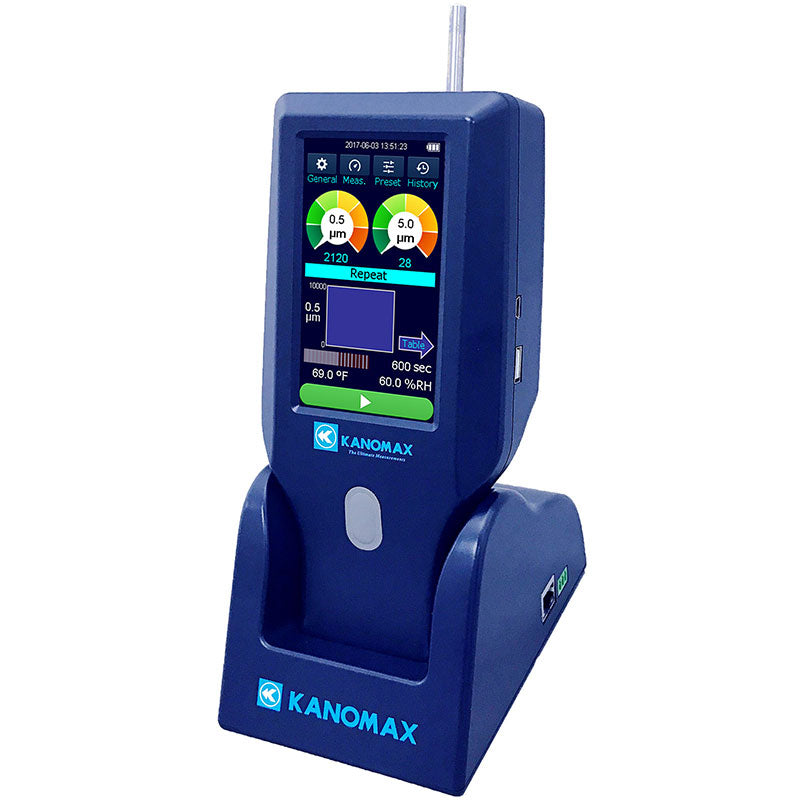

6 Channel Particle Counter - Kanomax 3889

Hand Held Particle Counter - Kanomax 3889 set the standard of instrumentation in cleanroom / operating room monitoring and verification, filter testing, IAQ investigation, data center cleaning and many more highly specialized and highly sensitive applications. These beautifully engineered devices boast some of the most highly advanced technology in the industry. A combination of accuracy and practicality, these devices are designed for accuracy and performance.

Since their inception, Kanomax Hand Held Particle Counter - Kanomax 3889have been the trusted choice in measuring instruments of by an ever-growing group of leaders in pharmaceutical, semiconductor, food and beverage industries. The 3888 and 3889 models perform with the same reliability and accuracy as their predecessors, but now feature assets that make them easier to use and measurements can be gathered significantly faster. They have very large, full color 4.3 inch LCD touchscreens, which can actually display data graphically for speedy interpretation. Despite the fact that measurements can very easily be taken directly from the instrument, these new models also include the easiest options for transferring data to PCs and other devices. There is an onboard USB input, which will accept a USB drive and download any number of the possible 10,000 data logs and transferred into a Windows 10 application.

The Kanomax Handheld Particle Counters also meet ISO 21501-4 Standard and are fully RoHS compliant.

6 Channel Particle Counter

Sizes

6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm)

Flow rate

0.1CFM (2.83L/min)
Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4)

Maximum measurable Concentration

10% for 2,000,000 particles/CF
(compliant with JIS B9921 and ISO21501-4)

Counting efficiency

50±20%(for PSL particles near the minimum measurable size)
100±10%(for PSL particles of 1.5 to 2 times as large as the minimum
measurable size) (Compliant with JIS B9921 and ISO21501-4)

False count

≦1 particle/5 minutes
(Compliant with JIS B9921 and ISO21501-4)

Size resolution

≦15% (for PSL particles near 0.3μm)
(Compliant with JIS B9921 and ISO21501-4)

Display

Communication -Standard USB (Host: for printer and USB flash memory, Device: for PC)
Stand (option)- RS485, Ethernet, and WiFi connection points in the base/stand
Recording media -Media Internal memory
Number and format -Up to 10,000 records in CSV format

Power

Internal supply- Li-ion rechargeable battery (Replaceable)
External supply -AC adaptor Input 100 to 240 V
continuous operation time- 5 hours(Single measurement)

Operating environment

Main body- From 10 to 40 ℃, from 0 to 85%RH (With no condensation)
Probe -From 0 to 50 ℃, from 2 to 98%RH(With no condensation)

Dimension

W213 X H100 X D55 mm

Weight

650g

Hydrothermal Measurement

Available as an option for the 6-channel portable particle counter
Temperature : From 0 to 50℃
Humidity : From 2.0 to 98.0%RH



Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

6 Channel Particle Counter - Kanomax 3889

Hand Held Particle Counter - Kanomax 3889 set the standard of instrumentation in cleanroom / operating room monitoring and verification, filter testing, IAQ investigation, data center cleaning and many more highly specialized and highly sensitive applications. These beautifully engineered devices boast some of the most highly advanced technology in the industry. A combination of accuracy and practicality, these devices are designed for accuracy and performance.

Since their inception, Kanomax Hand Held Particle Counter - Kanomax 3889have been the trusted choice in measuring instruments of by an ever-growing group of leaders in pharmaceutical, semiconductor, food and beverage industries. The 3888 and 3889 models perform with the same reliability and accuracy as their predecessors, but now feature assets that make them easier to use and measurements can be gathered significantly faster. They have very large, full color 4.3 inch LCD touchscreens, which can actually display data graphically for speedy interpretation. Despite the fact that measurements can very easily be taken directly from the instrument, these new models also include the easiest options for transferring data to PCs and other devices. There is an onboard USB input, which will accept a USB drive and download any number of the possible 10,000 data logs and transferred into a Windows 10 application.

The Kanomax Handheld Particle Counters also meet ISO 21501-4 Standard and are fully RoHS compliant.

6 Channel Particle Counter

Sizes

6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm)

Flow rate

0.1CFM (2.83L/min)
Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4)

Maximum measurable Concentration

10% for 2,000,000 particles/CF
(compliant with JIS B9921 and ISO21501-4)

Counting efficiency

50±20%(for PSL particles near the minimum measurable size)
100±10%(for PSL particles of 1.5 to 2 times as large as the minimum
measurable size) (Compliant with JIS B9921 and ISO21501-4)

False count

≦1 particle/5 minutes
(Compliant with JIS B9921 and ISO21501-4)

Size resolution

≦15% (for PSL particles near 0.3μm)
(Compliant with JIS B9921 and ISO21501-4)

Display

Communication -Standard USB (Host: for printer and USB flash memory, Device: for PC)
Stand (option)- RS485, Ethernet, and WiFi connection points in the base/stand
Recording media -Media Internal memory
Number and format -Up to 10,000 records in CSV format

Power

Internal supply- Li-ion rechargeable battery (Replaceable)
External supply -AC adaptor Input 100 to 240 V
continuous operation time- 5 hours(Single measurement)

Operating environment

Main body- From 10 to 40 ℃, from 0 to 85%RH (With no condensation)
Probe -From 0 to 50 ℃, from 2 to 98%RH(With no condensation)

Dimension

W213 X H100 X D55 mm

Weight

650g

Hydrothermal Measurement

Available as an option for the 6-channel portable particle counter
Temperature : From 0 to 50℃
Humidity : From 2.0 to 98.0%RH
