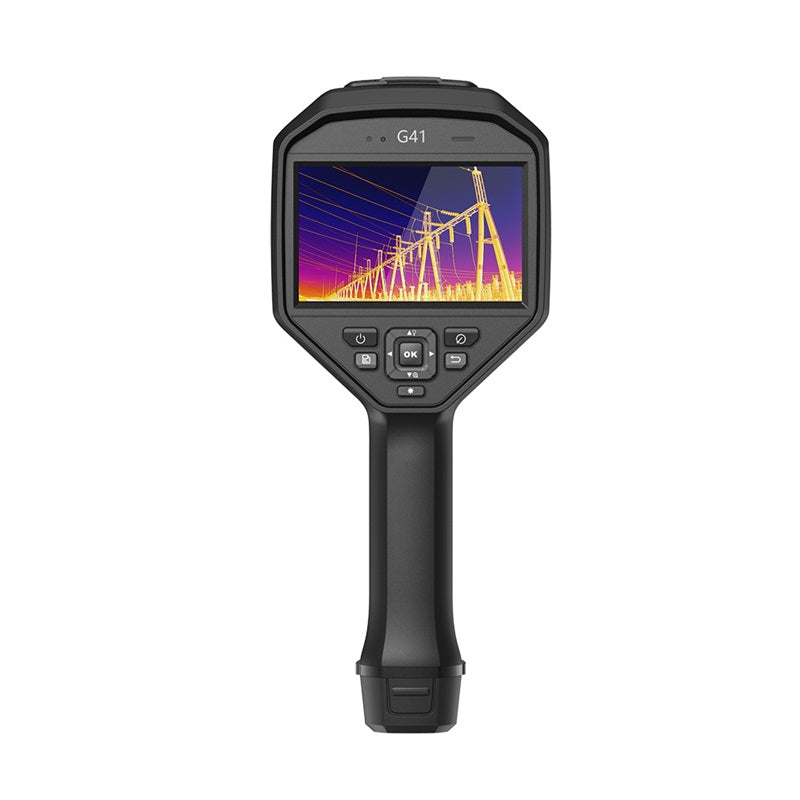

Advanced Handheld Thermal Camera Hikmicro G41
The HIKMICRO G41 Handheld Thermal Camera is a high-performance device designed for industrial, predictive, oil and gas, and utility maintenance inspections. Equipped with a 480 x 360 high-resolution thermal detector and advanced features such as GPS and compass annotations, continuous digital zoom, and 1-Tap level and span, the G41 allows professionals to easily detect equipment malfunctions. The camera connects seamlessly with the HIKMICRO Viewer App or HIKMICRO Analyzer software for easy transfer, analysis, sharing of images, and generating reports.
Features:
- High Sensitivity Thermal Detector: 480 x 360 resolution, NETD < 35 mK.
- Wide Temperature Measurement Range: -20°C to 650°C (-4°F to 1202°F).
- High Accuracy: ±2°C/3.6°F or ±2%.
- Continuous Digital Zoom: 1.x to 8.x.
- Advanced Focus Modes: Laser Assisted AF, Continuous AF, Manual Focus, Touch AF.
- GPS and Compass Annotation: For precise location and orientation data.
- LED Light and Laser Pointer: For clear visibility and precise targeting.
- Multiple Imaging Modes: Infrared, Visual, Fusion, PIP, Blending.
- 4.3-inch Touch Screen: 800 x 480 resolution.
- Comprehensive Data Storage: Removable 64 GB Micro SD Card.
- Connectivity: Wi-Fi, Bluetooth, USB Type-C, HDMI.
- Rugged Design: IP54 rated, withstands drops up to 2 meters.
Specification | Details |
Infrared Image | |
IR Resolution | 480 × 360 (172,800 pixels) |
SuperIR | 960 × 720 (691,200 pixels) |
NETD | < 35 mK (@ 25°C, F#=1.0) |
Image Frequency | 50 Hz |
Detector Pitch | 17 μm |
Spectral Range | 7.5 μm to 14 μm |
Focal Length | 25 mm |
Field of View (FOV) | 18.7° × 14° |
Min. Focus Distance | 0.3 m (0.98 ft) |
Image Display | |
Visual Camera | 3264 × 2448 (8 MP) |
Display | 800 × 480 Resolution, 4.3" LCD Touch Screen |
Digital Zoom | 1.x to 8.x continuous |
Measurement and Analysis | |
Temperature Range | -20 °C to 650 °C (-4 °F to 1202 °F) |
Accuracy | Max (±2°C/3.6°F, ±2%) |
Measurement Tools | Center Spot, Hot Spot, Cold Spot, user-definable: Delta T, 10 spots, 1 line, 5 rectangles, 5 circles |
Data Storage and Communication | |
Storage Media | Removable 64 GB Micro SD Card |
Video Storage Capacity | Approx. 54 hours |
Video File Format | MP4 video and radiometric video |
General | |
Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
Bluetooth | Bluetooth 4.2 |
USB Interface | USB Type-C |
HDMI Interface | Yes |
LED Light | Yes |
Laser Pointer | Class II, Wavelength: 635 nm; Power: < 1 mW |
Battery Operating Time | Approx. 4 hours |
Protection Level | IP54 |
Drop Test Height | 2 meters |
Weight | Approx. 1058 g (2.33 lb) |
Dimensions | 284.7 × 120.6 × 124.5 mm (11.21 × 4.75 × 4.9 in) |
Tripod Mounting | UNC ¼”-20 |
