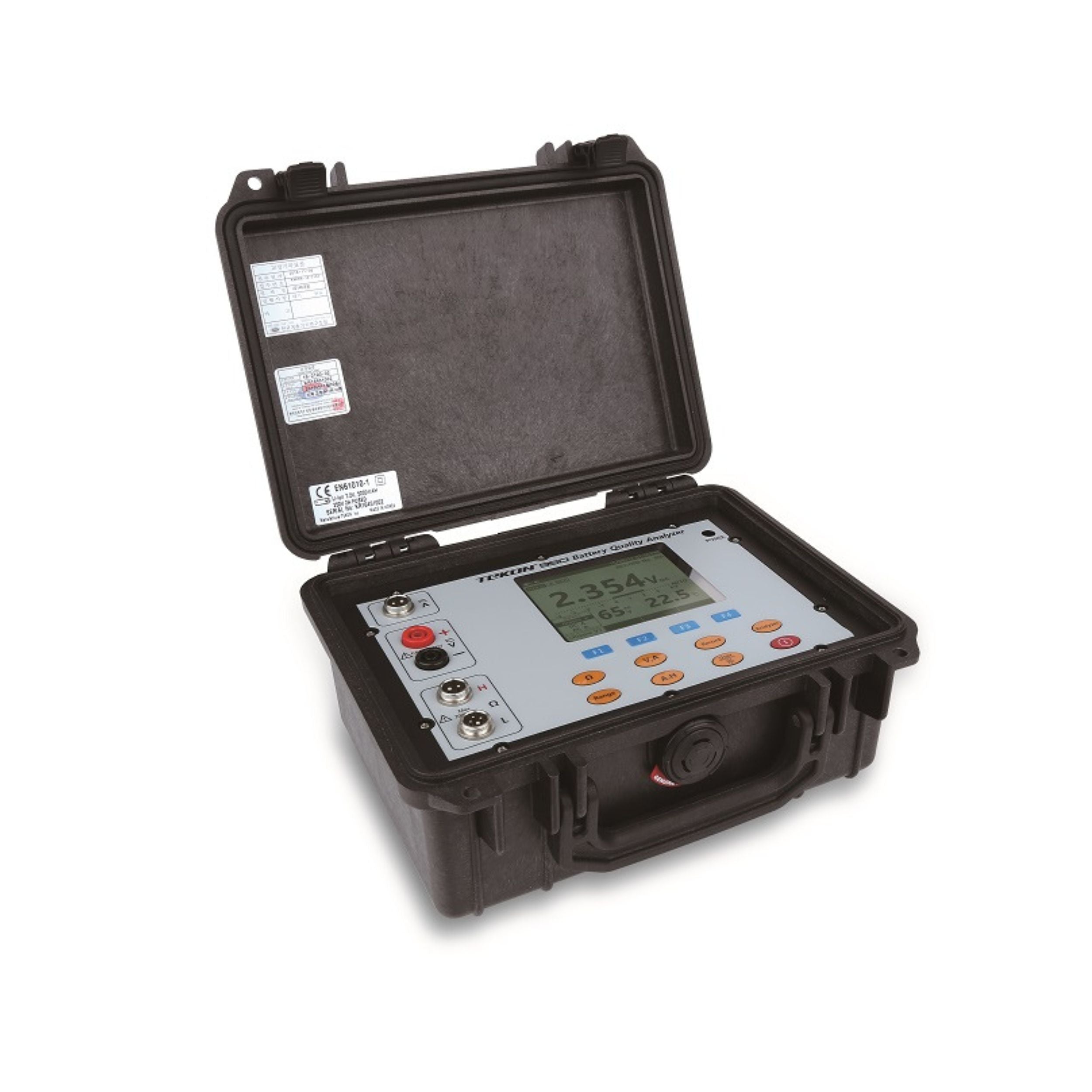

Battery Quality Analyzer Tekon 950A

Battery Quality Analyzer Tekon 950A

MAKE : TEKON
MODEL : 950A
Tekon
AED 8,800.00 - AED 8,800.00
AED 8,800.00
AED 8,800.00 - AED 8,800.00
AED 8,800.00
(Including VAT)

Battery Quality Analyzer Tekon 950A

The Tekon950A is a professional battery quality analyzer designed to measure internal resistance, voltage, ripple and temperature of battery cells and packs. It helps identify ageing, performance degradation and overall battery health, making it ideal for UPS, solar, ESS and industrial maintenance teams.

Features:

  • Measures internal resistance & voltage of battery cells/packs
  • DC/AC voltage and ripple measurement
  • Temperature measurement for accurate diagnostics
  • Bluetooth connectivity for data transfer
  • 8 MB internal memory for data storage
  • Fast auto-hold & data capture
  • Compact, portable design for field maintenance

Impedance measurement range

approx. 3 mΩ to 300 Ω

Resolution (impedance)

from 1 µΩ up to 100 mΩ

DC Voltage measurement ranges

up to 500 V (e.g., 5/50/500 V)

AC Voltage measurement

0-500 V AC typical

DC Current measurement

ranges such as 4 A / 40 A / 400 A with 1 mA resolution

Data storage

8 MB internal memory

Communication

Bluetooth v2.1 + EDR (Class 2)

Dimensions

240 × 198 × 109 mm

Weight

approx. 1.4 kg

Operating temperature/humidity

0 °C to +45 °C, RH ≤ 85% max

Compliance / Safety

IEC 61010-1 CAT III 500 V, Pollution Degree 2; EN61326-1:2013

Data-Sheets : Download

1. What is the TEKON950A used for?

The TEKON950A is used to measure battery internal resistance, voltage, ripple, and temperature to assess overall battery health and detect ageing or weak cells.

2. Can the TEKON950A test both individual cells and battery packs?

Yes, it can test individual cells, modules, and complete battery packs used in UPS, solar, ESS, telecom, and industrial systems.

3. What does ripple measurement mean?

Ripple measurement checks the AC noise present on a DC battery system. High ripple indicates charger/rectifier issues and can shorten battery life.

4. Does the TEKON950A support data storage?

Yes, it has 8 MB internal memory to store test results for later review, reporting, and trend analysis.

5. Is the TEKON950A portable for field use?

Yes, it is compact, lightweight, and designed for on-site testing, making it convenient for technicians and maintenance teams.

6. Does it have wireless connectivity?

Yes, the TEKON950A includes Bluetooth connectivity for transferring data to PC or mobile apps.

Battery Quality Analyzer Tekon 950A

The Tekon950A is a professional battery quality analyzer designed to measure internal resistance, voltage, ripple and temperature of battery cells and packs. It helps identify ageing, performance degradation and overall battery health, making it ideal for UPS, solar, ESS and industrial maintenance teams.

Features:

  • Measures internal resistance & voltage of battery cells/packs
  • DC/AC voltage and ripple measurement
  • Temperature measurement for accurate diagnostics
  • Bluetooth connectivity for data transfer
  • 8 MB internal memory for data storage
  • Fast auto-hold & data capture
  • Compact, portable design for field maintenance

Impedance measurement range

approx. 3 mΩ to 300 Ω

Resolution (impedance)

from 1 µΩ up to 100 mΩ

DC Voltage measurement ranges

up to 500 V (e.g., 5/50/500 V)

AC Voltage measurement

0-500 V AC typical

DC Current measurement

ranges such as 4 A / 40 A / 400 A with 1 mA resolution

Data storage

8 MB internal memory

Communication

Bluetooth v2.1 + EDR (Class 2)

Dimensions

240 × 198 × 109 mm

Weight

approx. 1.4 kg

Operating temperature/humidity

0 °C to +45 °C, RH ≤ 85% max

Compliance / Safety

IEC 61010-1 CAT III 500 V, Pollution Degree 2; EN61326-1:2013

Data-Sheets : Download

1. What is the TEKON950A used for?

The TEKON950A is used to measure battery internal resistance, voltage, ripple, and temperature to assess overall battery health and detect ageing or weak cells.

2. Can the TEKON950A test both individual cells and battery packs?

Yes, it can test individual cells, modules, and complete battery packs used in UPS, solar, ESS, telecom, and industrial systems.

3. What does ripple measurement mean?

Ripple measurement checks the AC noise present on a DC battery system. High ripple indicates charger/rectifier issues and can shorten battery life.

4. Does the TEKON950A support data storage?

Yes, it has 8 MB internal memory to store test results for later review, reporting, and trend analysis.

5. Is the TEKON950A portable for field use?

Yes, it is compact, lightweight, and designed for on-site testing, making it convenient for technicians and maintenance teams.

6. Does it have wireless connectivity?

Yes, the TEKON950A includes Bluetooth connectivity for transferring data to PC or mobile apps.
