Industrial Acoustic 171P
In stock

Industrial Acoustic Imaging Camera for Partial Discharge Detection Hertzinno HZ-HA-171P

MAKE : HERTZINNO
MODEL : HZ-HA-171P
AVAILABILITY : IN STOCK
Hertzinno
AED 42,000.00 - AED 42,000.00
AED 42,000.00
AED 42,000.00 - AED 42,000.00
AED 42,000.00
(Including VAT)

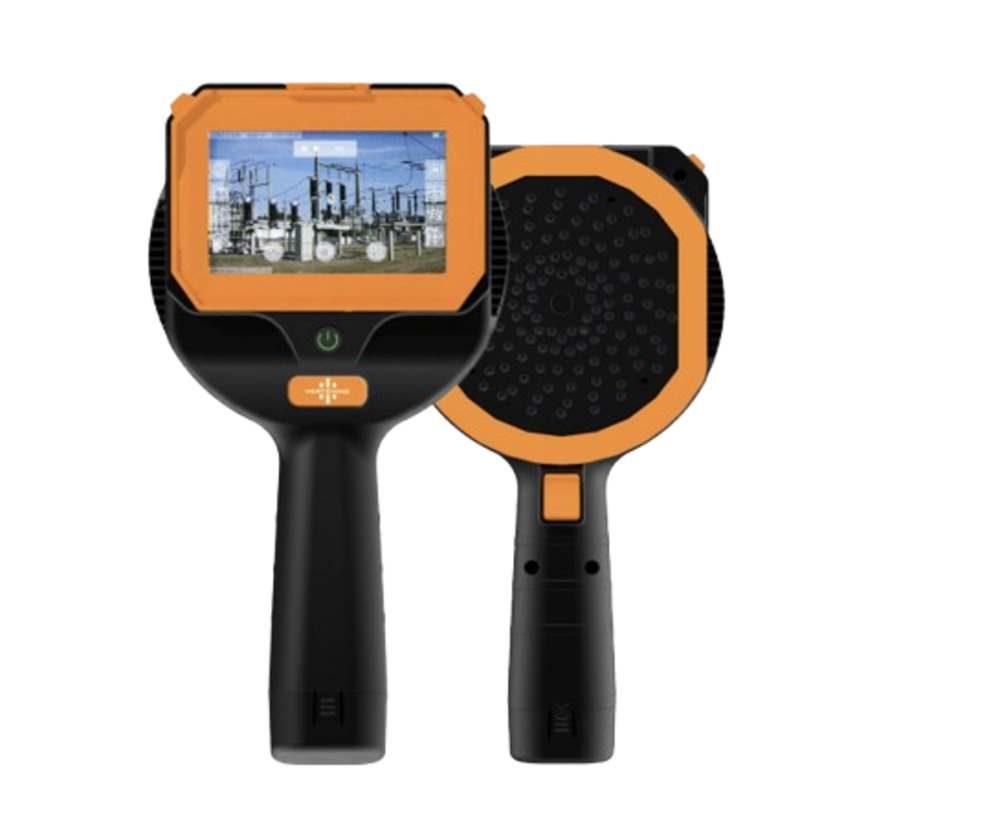

Industrial Acoustic Imaging Camera for Partial Discharge Detection Hertzinno HZ-HA-171P

The Hertzinno HZ-HA-171P is a next-generation industrial acoustic imaging camera designed for accurate partial discharge (PD) detection, pressurized gas leak identification, and mechanical fault diagnostics. Equipped with 128 low-noise MEMS microphones, dual-band acoustic sensing (audible + ultrasonic), and advanced AI analysis, the HZ-HA-171P delivers high-precision detection for static or moving targets up to 200 meters. With 7-hour battery life, 8× zoom, an ultra-bright 1000-nit display, and IP54 protection, it provides reliable performance across electrical utilities, manufacturing plants, HVAC, and industrial maintenance environments.

Features:

• 128 Low-noise MEMS microphones
• 1000 nits Screen
• 13MP color digital camera
• Operating distance 0.3m ~ 200m
• Microphone self-diagnosis function
• Multiple sources detection
• 8x digital zoom
• Partial discharge type intelligent analysis
• Replaceable battery
• AI Software
• Partial discharge detection
• Gas leakage estimate
• Mechanical fault detection

Microphones

128 MEMS microphones

Detection Range

0.3 m – 200 m

Frequency Range

10 kHz – 60 kHz (Auto/Low/Med/High/Ultra)

Minimum Sensitivity

Up to –10 dB SPL (ultrasonic)

Camera

13 MP, 4K/1080p photos, 1080p video

Display

1280×720, 1000 nits

Digital Zoom

8×

Storage

64 GB internal

Battery Life

7 hours (replaceable)

Protection

IP54

Weight

1.1 kg

Dimensions

317.5 × 167 × 74.35 mm

Applications

Partial discharge, gas leaks, vibration

PD Type Detection

Corona / Floating / Surface / Noise

Leak Sensitivity

≥0.0032 L/min (from 2.5 m)

Data-Sheets : Download

1. What types of issues can the HZ-HA-171P detect?

The camera detects partial discharge (PD) in electrical equipment, pressurized gas and air leaks, and mechanical faults such as bearing noise, vibration irregularities, and friction-related problems.

2. What is the maximum detection range of the camera?

The HZ-HA-171P supports a wide detection range from 0.3 meters up to 200 meters, enabling both short-range and long-range inspections in industrial environments.

3. Does the camera analyze the type and severity of partial discharge?

Yes. In PD mode, the built-in AI system provides severity assessment and automatic classification of PD types, helping maintenance teams identify risk levels and plan corrective actions.

4. Can it estimate the leak rate and cost of compressed air or gas leaks?

Yes. The leak detection mode quantifies the leak rate, estimates annual cost losses, and supports cost-saving maintenance planning for compressed air and industrial gas systems.

5. How long does the battery last, and is it replaceable?

The camera offers up to 7 hours of continuous operation on a single battery, and the battery is fully replaceable, allowing uninterrupted use during field inspections.

6. Is the HZ-HA-171P suitable for outdoor or harsh industrial environments?

Absolutely. With an IP54 rating, a 1000-nit high-brightness screen, and robust construction, the camera is designed for reliable operation in challenging outdoor and industrial conditions.

Industrial Acoustic Imaging Camera for Partial Discharge Detection Hertzinno HZ-HA-171P

The Hertzinno HZ-HA-171P is a next-generation industrial acoustic imaging camera designed for accurate partial discharge (PD) detection, pressurized gas leak identification, and mechanical fault diagnostics. Equipped with 128 low-noise MEMS microphones, dual-band acoustic sensing (audible + ultrasonic), and advanced AI analysis, the HZ-HA-171P delivers high-precision detection for static or moving targets up to 200 meters. With 7-hour battery life, 8× zoom, an ultra-bright 1000-nit display, and IP54 protection, it provides reliable performance across electrical utilities, manufacturing plants, HVAC, and industrial maintenance environments.

Features:

• 128 Low-noise MEMS microphones
• 1000 nits Screen
• 13MP color digital camera
• Operating distance 0.3m ~ 200m
• Microphone self-diagnosis function
• Multiple sources detection
• 8x digital zoom
• Partial discharge type intelligent analysis
• Replaceable battery
• AI Software
• Partial discharge detection
• Gas leakage estimate
• Mechanical fault detection

Microphones

128 MEMS microphones

Detection Range

0.3 m – 200 m

Frequency Range

10 kHz – 60 kHz (Auto/Low/Med/High/Ultra)

Minimum Sensitivity

Up to –10 dB SPL (ultrasonic)

Camera

13 MP, 4K/1080p photos, 1080p video

Display

1280×720, 1000 nits

Digital Zoom

8×

Storage

64 GB internal

Battery Life

7 hours (replaceable)

Protection

IP54

Weight

1.1 kg

Dimensions

317.5 × 167 × 74.35 mm

Applications

Partial discharge, gas leaks, vibration

PD Type Detection

Corona / Floating / Surface / Noise

Leak Sensitivity

≥0.0032 L/min (from 2.5 m)

Data-Sheets : Download

1. What types of issues can the HZ-HA-171P detect?

The camera detects partial discharge (PD) in electrical equipment, pressurized gas and air leaks, and mechanical faults such as bearing noise, vibration irregularities, and friction-related problems.

2. What is the maximum detection range of the camera?

The HZ-HA-171P supports a wide detection range from 0.3 meters up to 200 meters, enabling both short-range and long-range inspections in industrial environments.

3. Does the camera analyze the type and severity of partial discharge?

Yes. In PD mode, the built-in AI system provides severity assessment and automatic classification of PD types, helping maintenance teams identify risk levels and plan corrective actions.

4. Can it estimate the leak rate and cost of compressed air or gas leaks?

Yes. The leak detection mode quantifies the leak rate, estimates annual cost losses, and supports cost-saving maintenance planning for compressed air and industrial gas systems.

5. How long does the battery last, and is it replaceable?

The camera offers up to 7 hours of continuous operation on a single battery, and the battery is fully replaceable, allowing uninterrupted use during field inspections.

6. Is the HZ-HA-171P suitable for outdoor or harsh industrial environments?

Absolutely. With an IP54 rating, a 1000-nit high-brightness screen, and robust construction, the camera is designed for reliable operation in challenging outdoor and industrial conditions.
