Klauke Ekm60unv

Klauke Battery-Powered Hydraulic Universal Tool EK120UNV

SKU : KLK-EK120UNV
MAKE : KLAUKE
MODEL : EKM 60 UNV
WARRANTY : 1 Year
Klauke

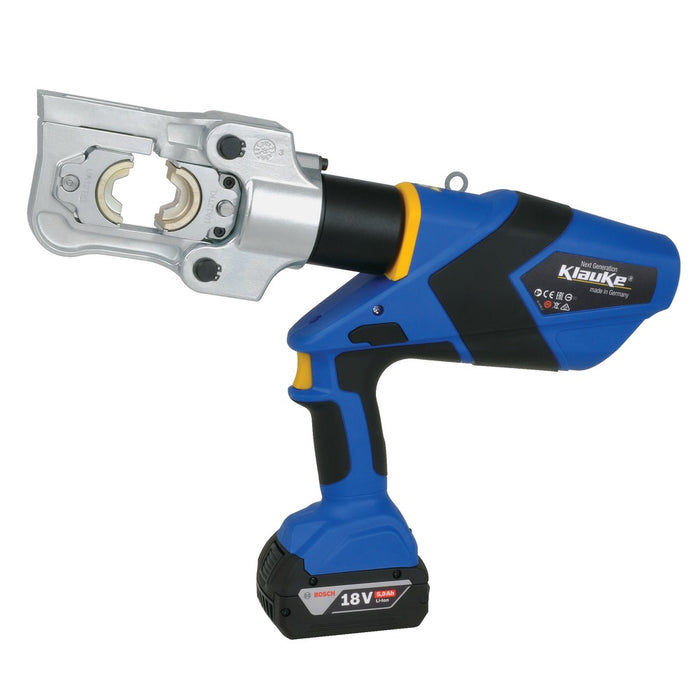

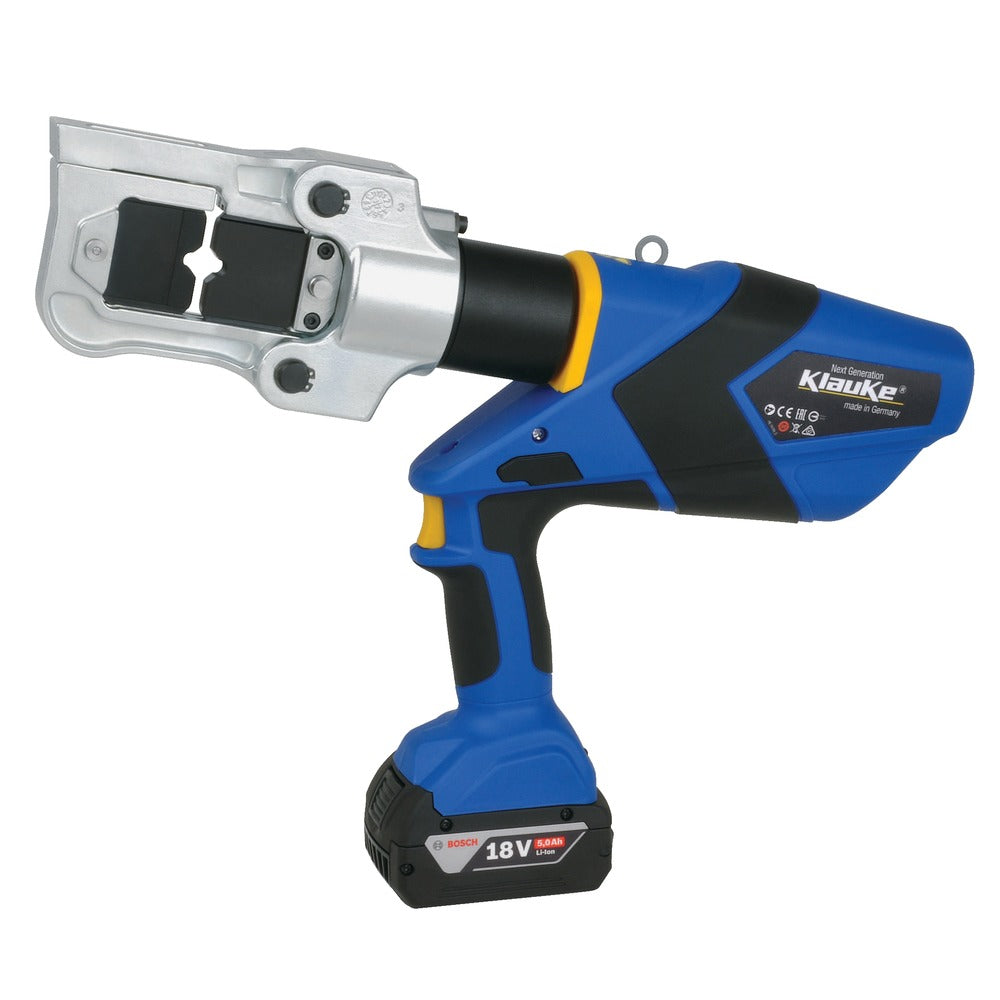

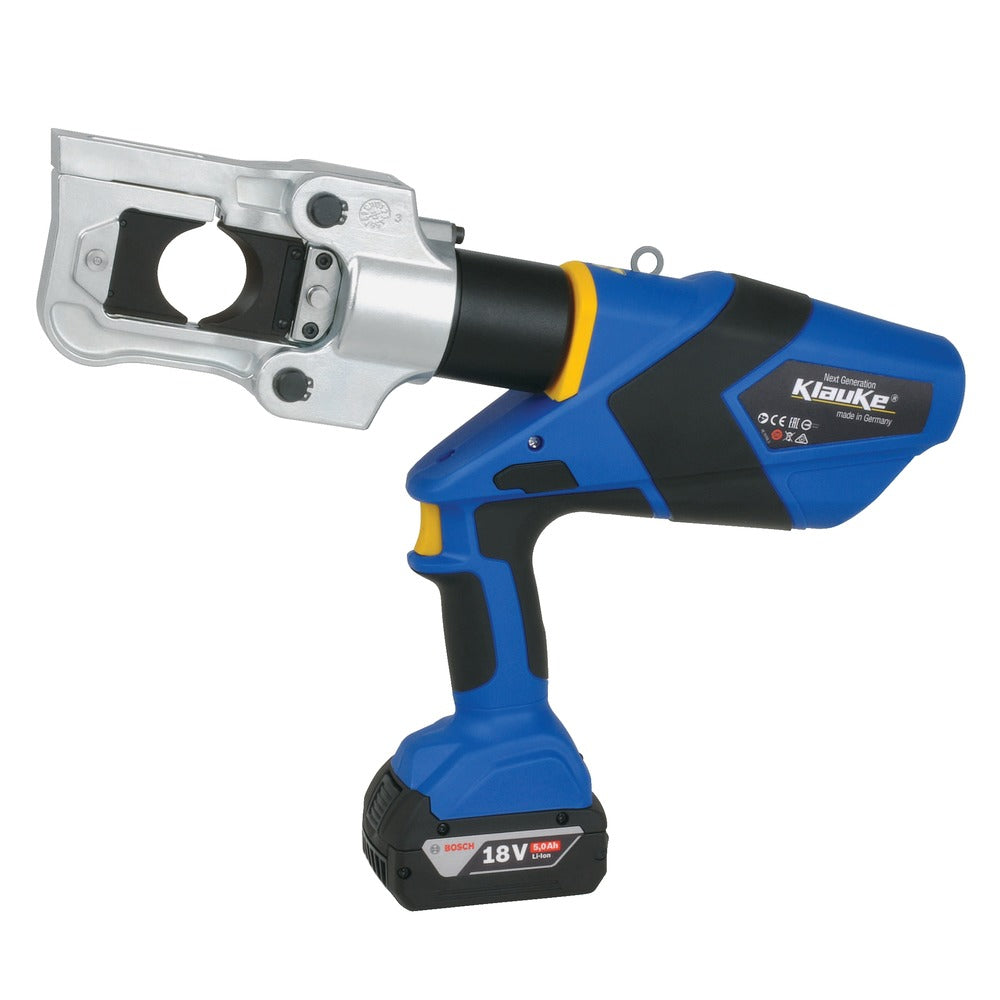

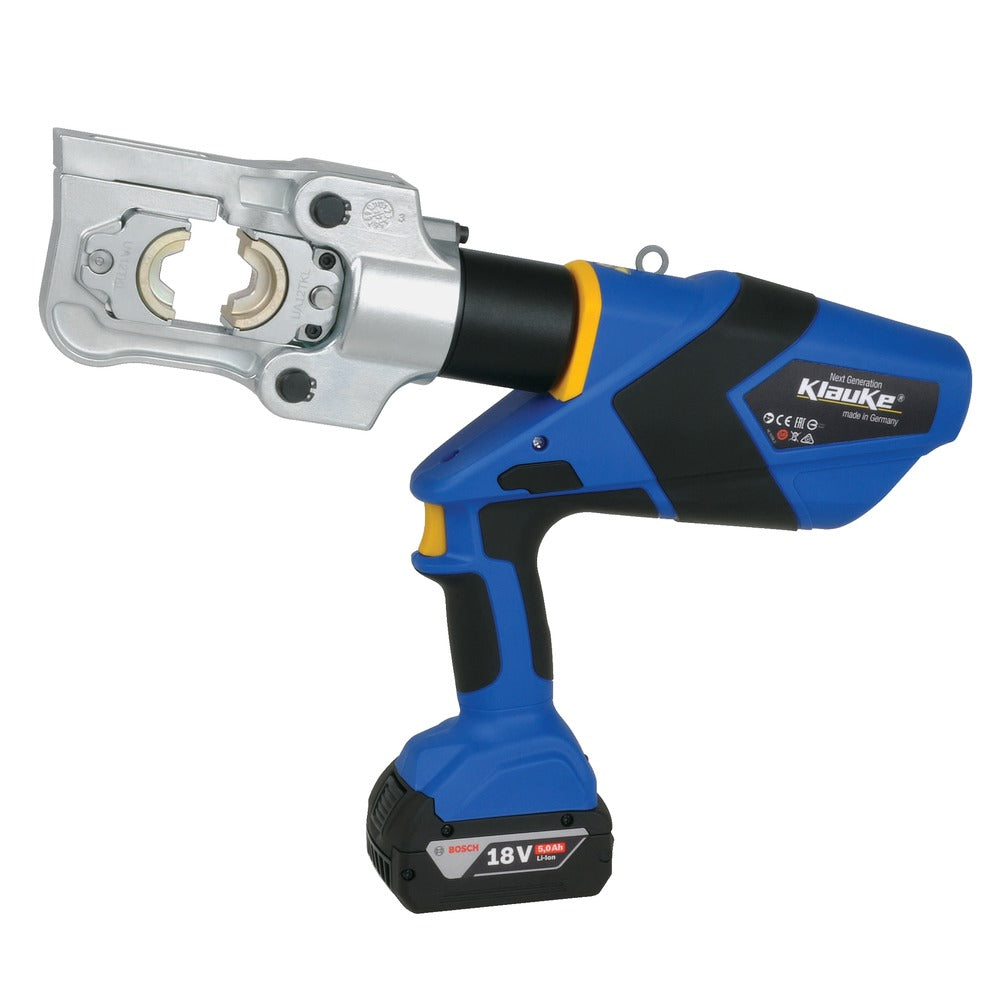

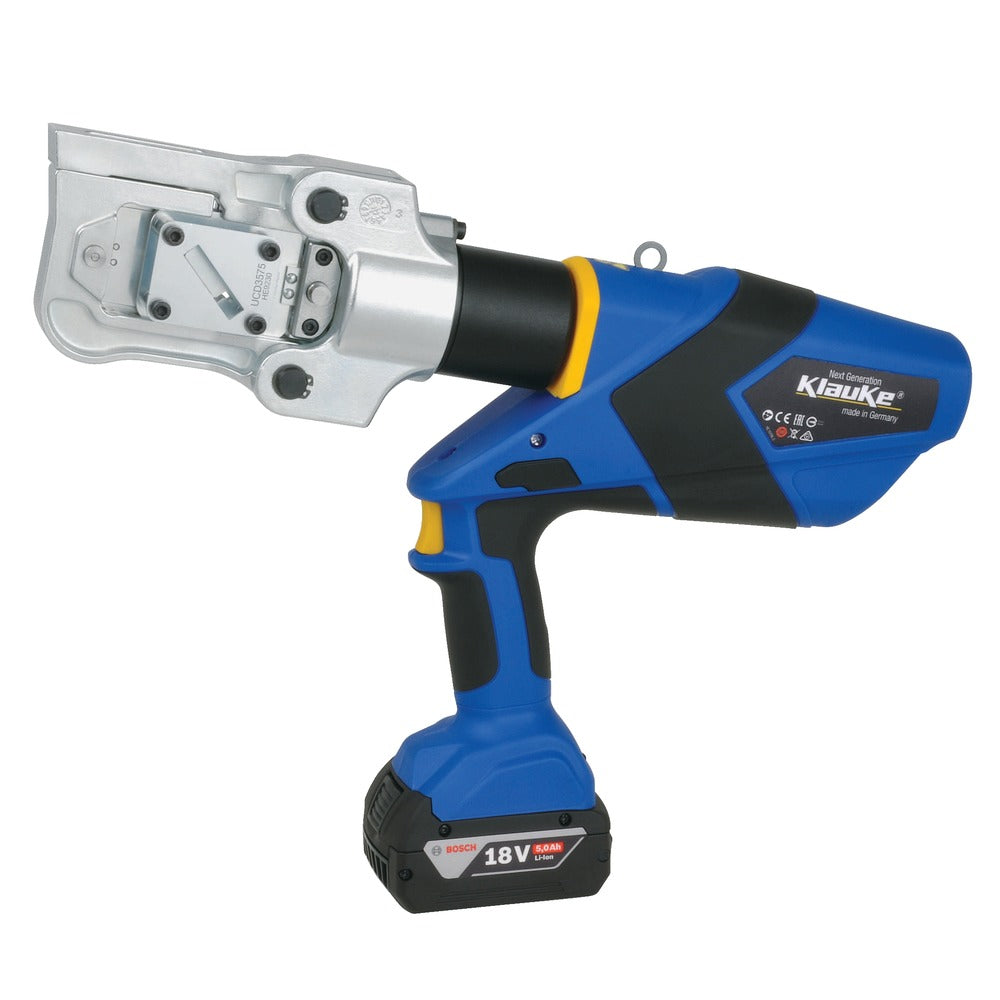

Klauke Battery-Powered Hydraulic Universal Tool EK120UNV

The Klauke EK 120 UNV is a battery-powered hydraulic universal tool designed for crimping, cutting, and punching with one head. Delivering 108 kN of force, it handles cables up to 400 mm² with ease. Its rotatable flip-top head, LED lighting, and Bluetooth connectivity via the Klauke Link® App make it versatile, efficient, and user-friendly for professional field and installation work.

Features:

  • 3-in-1: crimping, cutting & punching
  • Range: 10–400 mm²
  • Force: 108 kN
  • Flip-top rotatable head
  • 2-stage hydraulic system
  • Automatic retraction
  • 18 V Li-ion battery (Bosch/Makita)
  • LED work light
  • One-button operation
  • Bluetooth via Klauke Link® App
  • Lightweight & durable (6.5 kg)

Model

Klauke EK 120 UNV



Type

Battery hydraulic universal tool (crimp, cut & punch)



Crimping Range

10–400 mm²



Crimping Force

108 kN



Stroke

42 mm



Cutting Capacity

Up to 40 mm dia.



Punching Capacity

Up to 144 mm round / 138×138 mm square



Battery

18 V Li-ion (Bosch 5.0 Ah / Makita 4.0 Ah)



Charging Time

36–45 mins



Weight

6.5 kg



Operation

One-button control, automatic retraction



Features

LED light, Bluetooth (Klauke Link® App), 2-stage hydraulic system



Temperature Range

–10 °C to +40 °C







Data-Sheets : Download

1. What makes the Klauke EK 120 UNV a universal tool?

It’s a 3-in-1 tool that can crimp, cut, and punch, making it ideal for multiple applications with a single device.

2. What is the crimping range of this tool?

The EK 120 UNV can crimp cables from 10 mm² to 400 mm², covering a wide range of electrical connections.

3. How much force does the tool provide?

It delivers a powerful 108 kN of hydraulic force for precise and reliable performance.

4. What type of head does it have?

It features a universal flip-top rotatable head, providing flexibility and easy access in confined spaces.

5. What battery system does it use?

The tool operates on an 18 V Li-ion battery, compatible with both Bosch and Makita platforms.

6. Does it have smart and safety features?

Yes. It includes automatic retraction, LED work light, Bluetooth connectivity via the Klauke Link® App, and one-button operation for safe, simple use.

Klauke Battery-Powered Hydraulic Universal Tool EK120UNV

The Klauke EK 120 UNV is a battery-powered hydraulic universal tool designed for crimping, cutting, and punching with one head. Delivering 108 kN of force, it handles cables up to 400 mm² with ease. Its rotatable flip-top head, LED lighting, and Bluetooth connectivity via the Klauke Link® App make it versatile, efficient, and user-friendly for professional field and installation work.

Features:

  • 3-in-1: crimping, cutting & punching
  • Range: 10–400 mm²
  • Force: 108 kN
  • Flip-top rotatable head
  • 2-stage hydraulic system
  • Automatic retraction
  • 18 V Li-ion battery (Bosch/Makita)
  • LED work light
  • One-button operation
  • Bluetooth via Klauke Link® App
  • Lightweight & durable (6.5 kg)

Model

Klauke EK 120 UNV



Type

Battery hydraulic universal tool (crimp, cut & punch)



Crimping Range

10–400 mm²



Crimping Force

108 kN



Stroke

42 mm



Cutting Capacity

Up to 40 mm dia.



Punching Capacity

Up to 144 mm round / 138×138 mm square



Battery

18 V Li-ion (Bosch 5.0 Ah / Makita 4.0 Ah)



Charging Time

36–45 mins



Weight

6.5 kg



Operation

One-button control, automatic retraction



Features

LED light, Bluetooth (Klauke Link® App), 2-stage hydraulic system



Temperature Range

–10 °C to +40 °C







Data-Sheets : Download

1. What makes the Klauke EK 120 UNV a universal tool?

It’s a 3-in-1 tool that can crimp, cut, and punch, making it ideal for multiple applications with a single device.

2. What is the crimping range of this tool?

The EK 120 UNV can crimp cables from 10 mm² to 400 mm², covering a wide range of electrical connections.

3. How much force does the tool provide?

It delivers a powerful 108 kN of hydraulic force for precise and reliable performance.

4. What type of head does it have?

It features a universal flip-top rotatable head, providing flexibility and easy access in confined spaces.

5. What battery system does it use?

The tool operates on an 18 V Li-ion battery, compatible with both Bosch and Makita platforms.

6. Does it have smart and safety features?

Yes. It includes automatic retraction, LED work light, Bluetooth connectivity via the Klauke Link® App, and one-button operation for safe, simple use.
