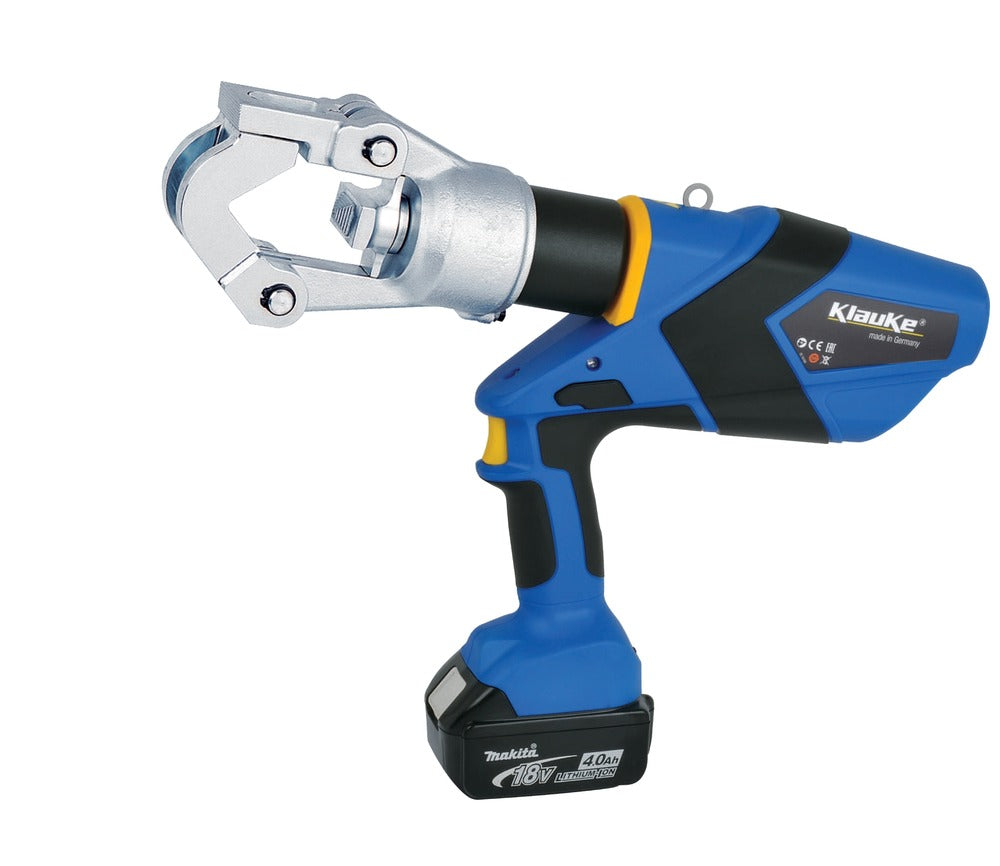

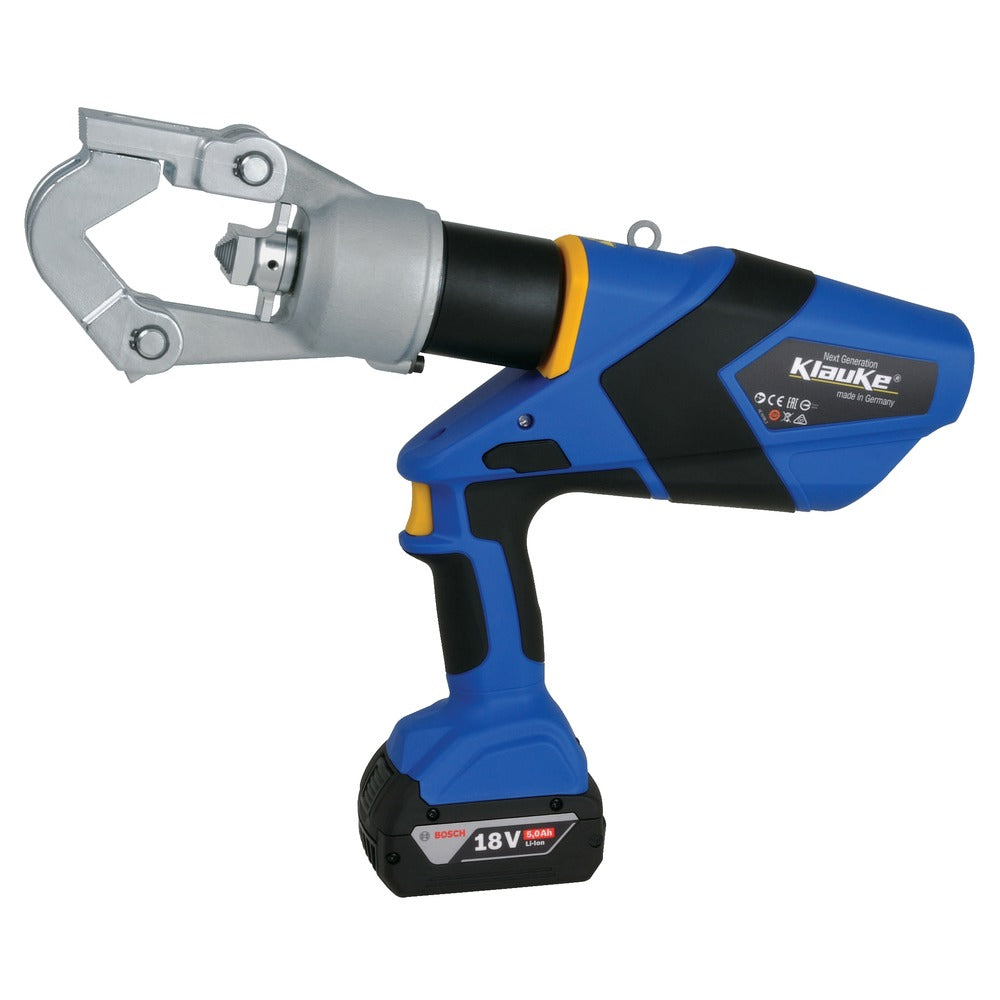

Klauke Battery Powered Hydraulic Crimping Tool EK120ID
SKU : KLK-EK120ID
MODEL : EK 120 ID
WARRANTY : 1 Year
Klauke Battery Powered Hydraulic Crimping Tool EK120ID
The Klauke EK 120 ID is a battery-powered hydraulic crimping tool designed for crimping cable lugs and connectors from 35 mm² to 500 mm². It delivers a strong 108 kN crimping force with a 52 mm stroke, ensuring secure and accurate connections. The tool features a closed, flip-top rotatable head for easy handling and tight workspaces. Powered by an 18 V Li-ion battery (Bosch or Makita), it offers automatic retraction, LED lighting, Bluetooth connectivity, and one-button operation for safe, effortless use. Ideal for professional electrical and industrial cable installations.
Features:
- Crimping range: 35–500 mm²
- Force: 108 kN
- Closed flip-top rotatable head
- 2-stage hydraulic system
- Automatic retraction & ARS
- 18 V Li-ion battery (Bosch/Makita)
- LED work light
- One-button operation
- Bluetooth via Klauke Link® App
- Visual/audible error signals
Model | Klauke EK 120 ID |
Type | Battery-powered hydraulic crimping tool |
Crimping Range | 35 – 500 mm² |
Crimping Force | 108 kN |
Stroke / Opening Width | 52 mm |
Head Type | Closed, flip-top rotatable head |
Hydraulic System | 2-stage (fast feed and power stroke) |
Battery System Options | Bosch or Makita |
Battery Voltage | 18 V Li-ion |
Battery Capacity | Bosch: 5.0 Ah / Makita: 4.0 Ah |
Charging Time | Bosch: 45 mins / Makita: 36 mins |
Crimping Cycle Time | 10–11 seconds (depending on cable size) |
Number of Crimps per Charge | Approx. 115 at 150 mm² Cu DIN |
Operation | One-button control |
Features | Automatic retraction, ARS (Automatic Retract Stop), LED work light |
Connectivity | Bluetooth via Klauke Link® App |
Error Indicators | Visual and audible signals |
Weight (incl. battery) | 7.0 kg |
Operating Temperature | –10 °C to +40 °C |
Applications | Electrical installations, switchgear, power distribution, and industrial cabling |
Manufacturer | Klauke (Germany) |
