Klauke Ekm60

Klauke Battery Powered Hydraulic Universal Tool EKM60UNV

SKU : KLK-EKM60UNV
MAKE : KLAUKE
MODEL : EKM 60 UNV
WARRANTY : 1 Year
Klauke

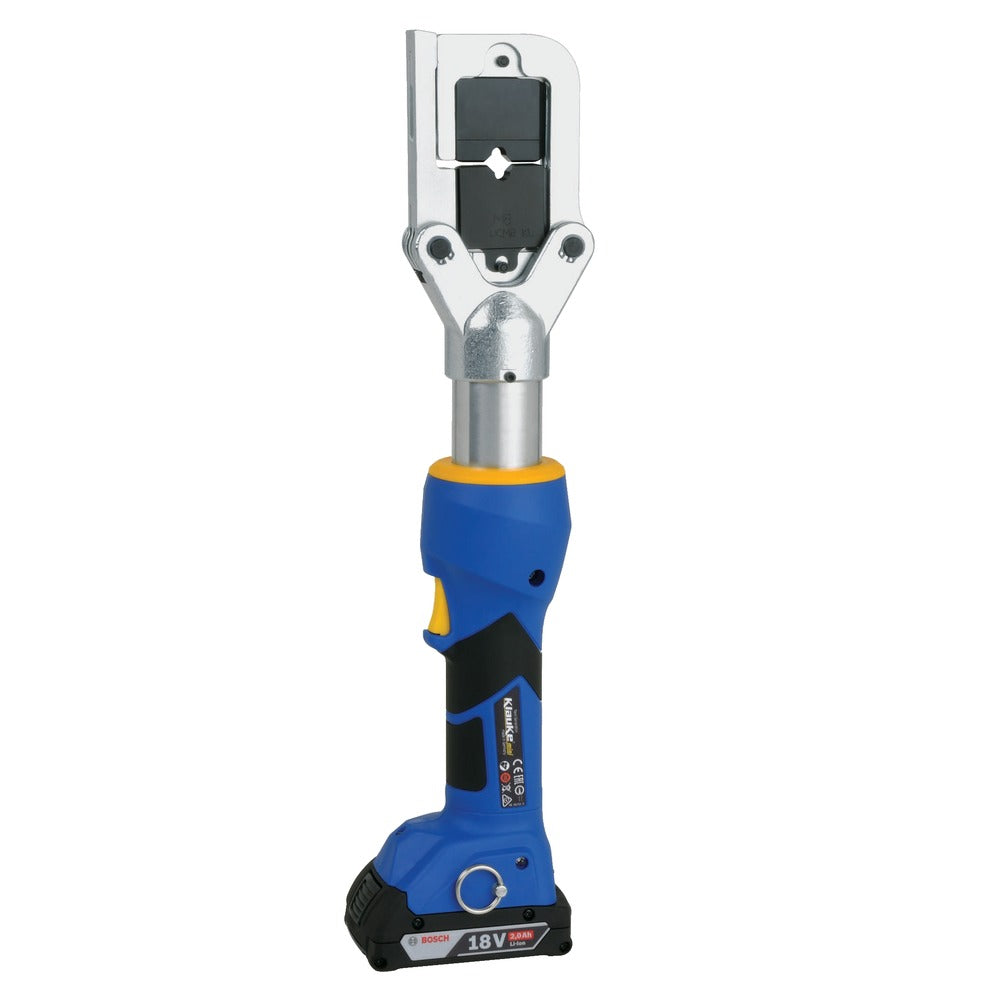

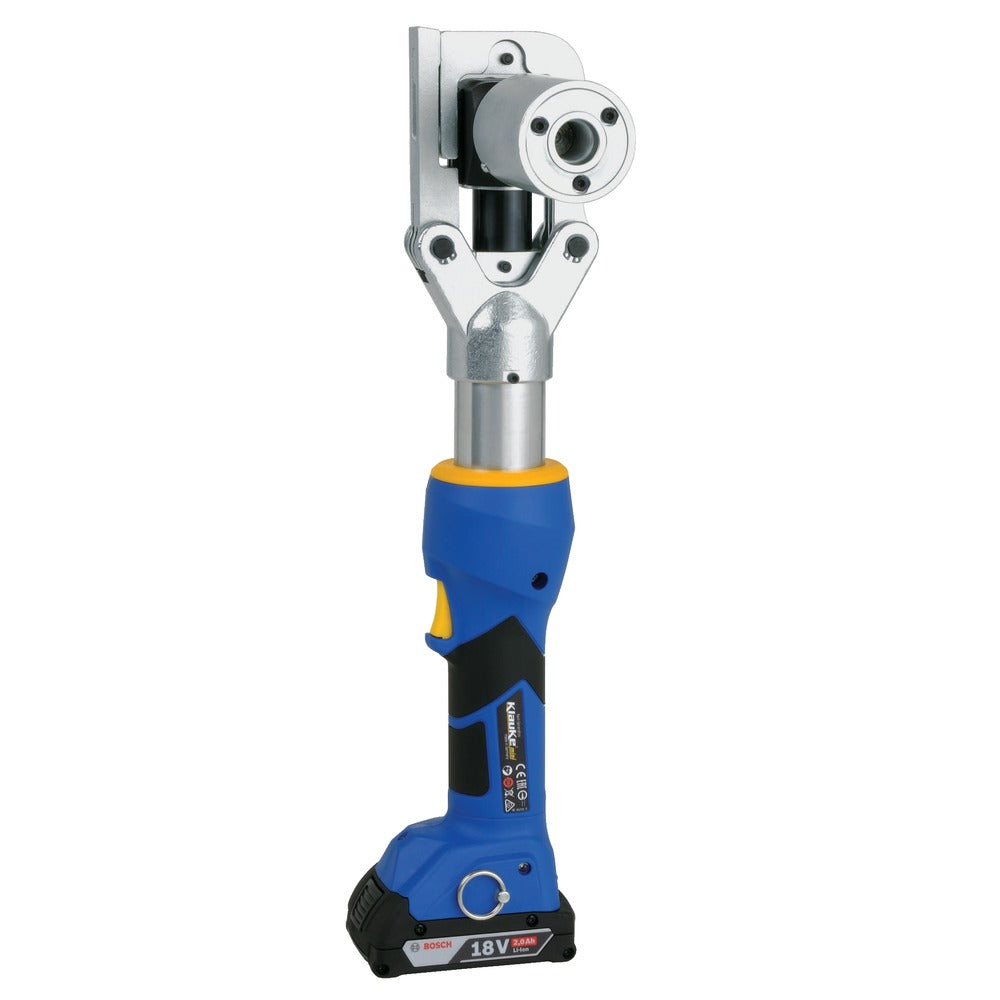

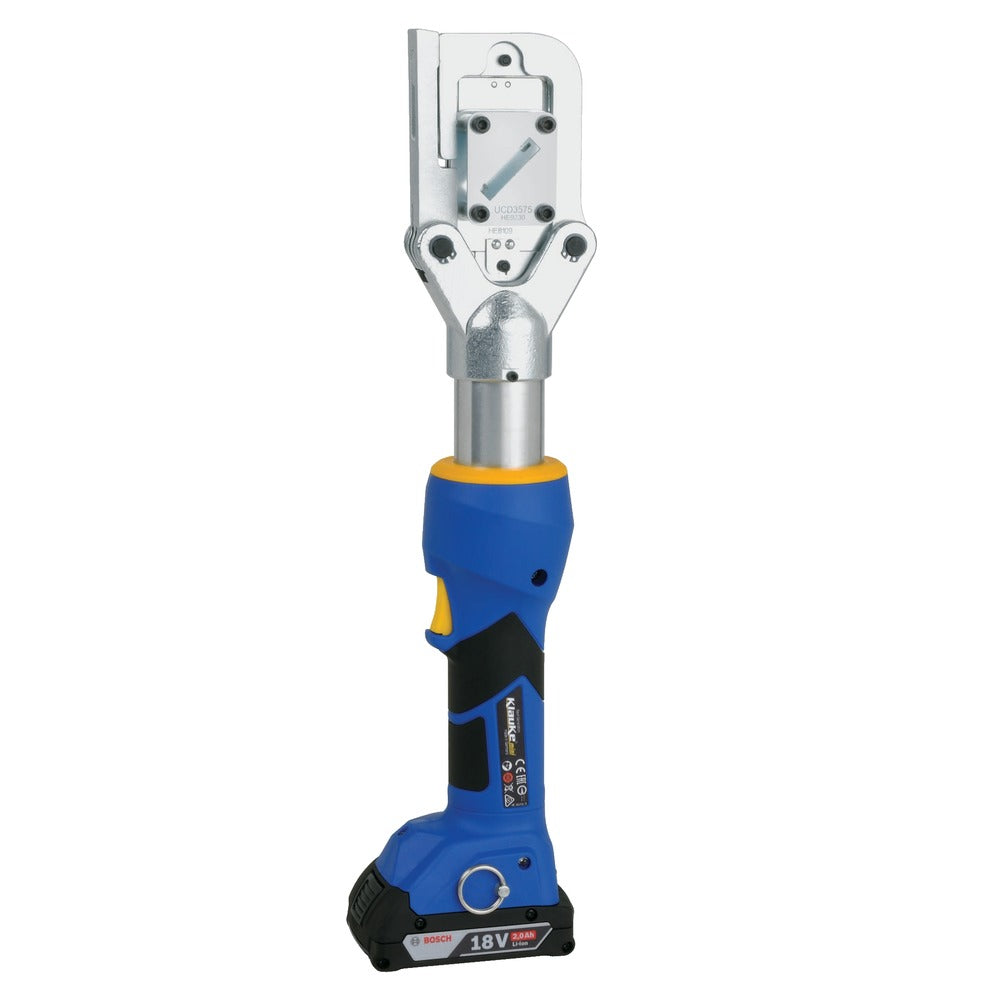

Klauke Battery Powered Hydraulic Universal Tool EKM60UNV

The Klauke EKM 60 UNV is a versatile battery-powered hydraulic universal tool designed for crimping, cutting, and punching with a single head. It delivers 60 kN force and handles cables up to 300 mm². Compact and lightweight at 3.0 kg, it’s ideal for confined spaces. Features include a rotatable flip-top head, LED light, automatic retraction, and Bluetooth connectivity via the Klauke Link® App. Powered by an 18 V Li-ion battery (Bosch or Makita), it ensures fast, efficient, and safe performance for field and installation work.

Features:

  • 3-in-1 tool: crimping, cutting & punching
  • Crimping range: 6–300 mm²
  • Force: 60 kN
  • Universal flip-top rotatable head
  • Compact & lightweight (3.0 kg)
  • 18 V Li-ion battery (Bosch/Makita)
  • LED work light
  • Automatic retraction after operation
  • One-button operation
  • Bluetooth via Klauke Link® App

Model

Klauke EKM 60 UNV

Type

Battery hydraulic universal tool (crimp, cut & punch)

Crimping Range

6–300 mm²

Crimping Force

60 kN

Stroke

42 mm

Cutting Capacity

Up to 40 mm dia.

Punching Capacity

Up to 64 mm round / 92×92 mm square

Battery

18 V Li-ion (Bosch: 2.0 Ah / Makita: 1.5 Ah)

Charging Time

15 mins

Weight

3.0 kg

Cycle Time

7–9 seconds

Features

One-button control, LED light, automatic retraction, Bluetooth (Klauke Link® App)

Operating Temp.

–10 °C to +40 °C



Data-Sheets : Download

1. What makes the Klauke EKM 60 UNV a universal tool?

It’s designed for crimping, cutting, and punching — three operations in one tool, making it ideal for on-site and field applications.

2. What is the crimping range of this tool?

It can crimp cables from 6 mm² to 300 mm², covering a wide range of electrical connections.

3. How much force does it deliver?

The tool provides a strong 60 kN crimping and cutting force for efficient performance.

4. What type of head does it have?

It features a flip-top, rotatable universal head, allowing easy access and flexibility in tight work areas.

5. What battery system does it use?

It operates on an 18 V Li-ion battery, compatible with both Bosch and Makita systems.

6. What special features does it include?

The tool offers automatic retraction, LED work light, one-button operation, and Bluetooth connectivity via the Klauke Link® App for data monitoring and tool management.

Klauke Battery Powered Hydraulic Universal Tool EKM60UNV

The Klauke EKM 60 UNV is a versatile battery-powered hydraulic universal tool designed for crimping, cutting, and punching with a single head. It delivers 60 kN force and handles cables up to 300 mm². Compact and lightweight at 3.0 kg, it’s ideal for confined spaces. Features include a rotatable flip-top head, LED light, automatic retraction, and Bluetooth connectivity via the Klauke Link® App. Powered by an 18 V Li-ion battery (Bosch or Makita), it ensures fast, efficient, and safe performance for field and installation work.

Features:

  • 3-in-1 tool: crimping, cutting & punching
  • Crimping range: 6–300 mm²
  • Force: 60 kN
  • Universal flip-top rotatable head
  • Compact & lightweight (3.0 kg)
  • 18 V Li-ion battery (Bosch/Makita)
  • LED work light
  • Automatic retraction after operation
  • One-button operation
  • Bluetooth via Klauke Link® App

Model

Klauke EKM 60 UNV

Type

Battery hydraulic universal tool (crimp, cut & punch)

Crimping Range

6–300 mm²

Crimping Force

60 kN

Stroke

42 mm

Cutting Capacity

Up to 40 mm dia.

Punching Capacity

Up to 64 mm round / 92×92 mm square

Battery

18 V Li-ion (Bosch: 2.0 Ah / Makita: 1.5 Ah)

Charging Time

15 mins

Weight

3.0 kg

Cycle Time

7–9 seconds

Features

One-button control, LED light, automatic retraction, Bluetooth (Klauke Link® App)

Operating Temp.

–10 °C to +40 °C



Data-Sheets : Download

1. What makes the Klauke EKM 60 UNV a universal tool?

It’s designed for crimping, cutting, and punching — three operations in one tool, making it ideal for on-site and field applications.

2. What is the crimping range of this tool?

It can crimp cables from 6 mm² to 300 mm², covering a wide range of electrical connections.

3. How much force does it deliver?

The tool provides a strong 60 kN crimping and cutting force for efficient performance.

4. What type of head does it have?

It features a flip-top, rotatable universal head, allowing easy access and flexibility in tight work areas.

5. What battery system does it use?

It operates on an 18 V Li-ion battery, compatible with both Bosch and Makita systems.

6. What special features does it include?

The tool offers automatic retraction, LED work light, one-button operation, and Bluetooth connectivity via the Klauke Link® App for data monitoring and tool management.
