Megger MIT230 Insulation and Continuity Tester Calibration

SKU : MIT230
MODEL : MIT230
AVAILABILITY : IN STOCK

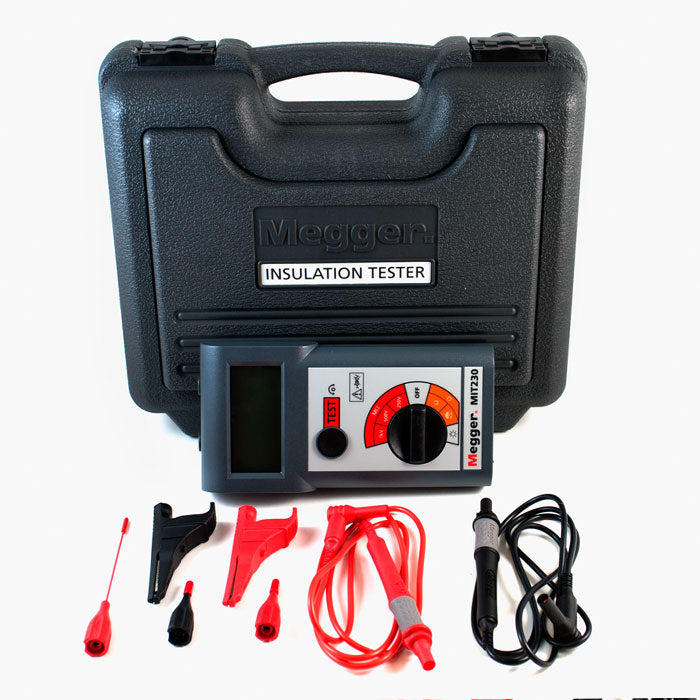

Megger MIT230 Insulation and Continuity Tester Calibration

The MIT230 is a compact and versatile digital/analog insulation and continuity tester from Megger, designed for a wide range of electrical testing applications. This instrument offers insulation testing up to 1000 V and continuity testing with a 200 mA test current. The dual display combines digital accuracy with an analog pointer for evaluating circuit characteristics. The rugged design and small size make it ideal for field use.



Test Voltages250 V, 500 V, 1000 V
Insulation Resistance Range10 kΩ to 1000 MΩ
Continuity Range0.01 Ω to 100 Ω
Voltage MeasurementUp to 600 V AC/DC
DisplayDigital with analog arc
Battery Life3000 tests with 2Ah batteries
IP RatingIP40
Dimensions195 mm x 98 mm x 40 mm
Weight550 g (1.2 lbs)



Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What are the test voltage options for the MIT230?

  • The MIT230 offers test voltages of 250 V, 500 V, and 1000 V for insulation testing.

Q2. What is the maximum insulation resistance the MIT230 can measure?

  • The MIT230 can measure insulation resistance up to 1000 MΩ.

Q3. Does the MIT230 provide any protection features?

  • Yes, the MIT230 has live circuit detection and will inhibit testing on circuits above 50 V to protect the user and the instrument.

Q4. How is continuity tested on the MIT230?

  • Continuity is tested automatically at a 200 mA test current, with a range of 0.01 Ω to 100 Ω.

Q5. Is the MIT230 suitable for use in harsh environments?

  • The MIT230 has an IP40 rating and is designed to withstand tough conditions with its rugged ABS housing.

Q6. What type of display does the MIT230 have?

  • The MIT230 features a dual display with both digital readout and an analog arc for clear and accurate measurements.
