Acoustic Detector HA3
In stock

Hertzinno HA3 Multi-Function Acoustic Detector | PD & Leak Detection

MAKE : HERTZINNO
MODEL : HA3
WARRANTY : 2
AVAILABILITY : IN STOCK
Hertzinno
AED 60,000.00 - AED 60,000.00
AED 60,000.00
AED 60,000.00 - AED 60,000.00
AED 60,000.00
(Including VAT)

Hertzinno HA3 Multi-Function Acoustic Detector | PD & Leak Detection

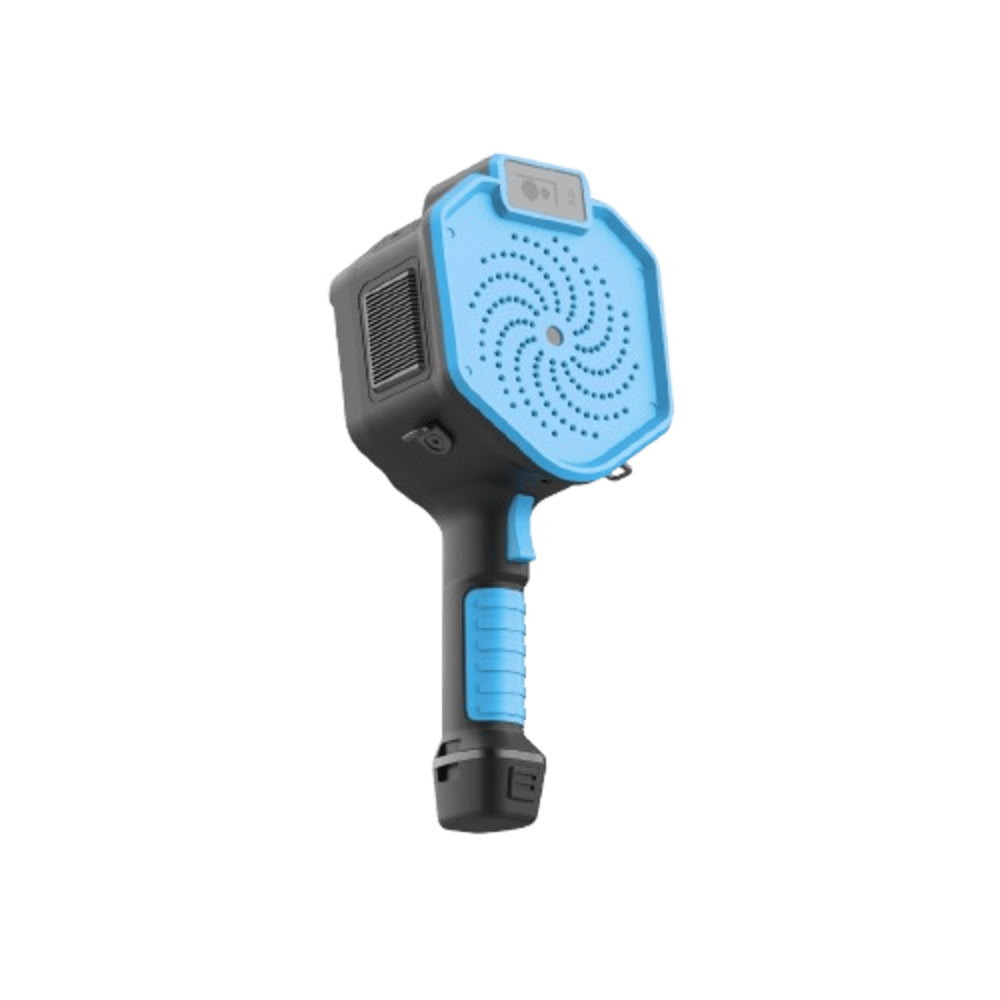

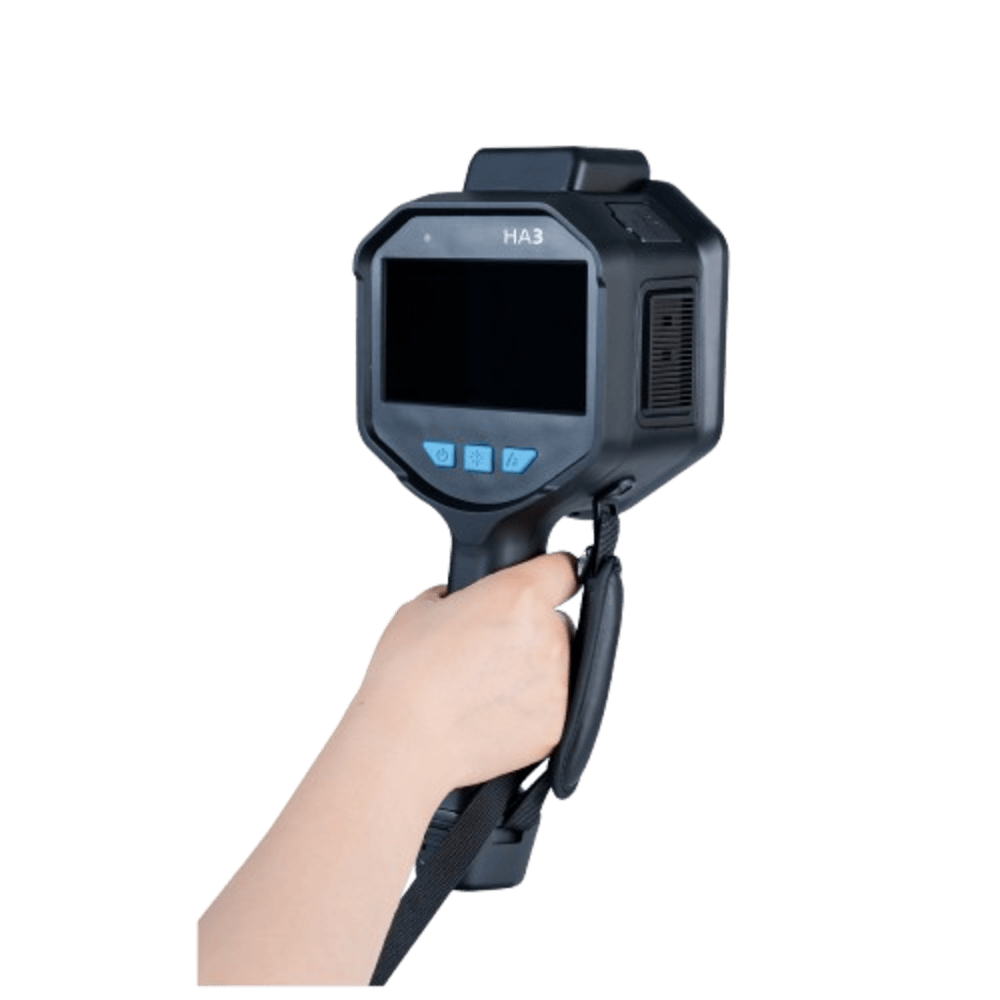

The Hertzinno HA3 Handheld Acoustic Camera is a portable device that visualizes sound, helping engineers quickly locate partial discharge, gas leaks, and mechanical faults using a 144-microphone array and advanced AI algorithms.

Feature:

• 144 Low-noise MEMS Microphones
• Partial discharge detection
• Gas leakage detection
• Mechanical fault detection
• Partial discharge type intelligent analysis
• Multiple sound sources detection
• Real-time sound source localization
• Laser rangefinder

Model

HA3

Microphones

144 Digital MEMS

Frequency Range

2 kHz – 130 kHz

Operating Distance

0.3 – 200 m

Sensitivity

10 kHz: 3 dB • 20 kHz: –15 dB • 40 kHz: –5 dB • 60 kHz: 10 dB • 80 kHz: 35 dB • 100 kHz: 45 dB

Space Resolution

≤1 cm @1 m (40 kHz)

Dynamic Range

–30 to 120 dB

Multi-target Range

0 – 18 dB

Optical Camera

13 MP, 72° FOV, LED Light

Photo/Video

4K photo, 1080p @30/60fps

Zoom

1× / 2× / 4× / 8×

Storage

128 GB

Display

5-inch, 1920×1080 touch screen

Connectivity

Wi-Fi (2.4G/5G), Bluetooth 4.2, USB-C

Laser Distance Meter

0.1–20 m, ±1 mm, Class II

Battery

2× Li-ion, PD fast charging

Protection

IP54

Weight

<1 kg

Dimensions

333 × 152 × 115 mm

Operating Temp

–20°C to 55°C

Work Modes

Partial discharge, leak detection, mechanical noise

Software

On-device, PC, Cloud

Data-Sheets : Download

1. What is the Hertzinno HA3 Acoustic Camera used for?

The HA3 is used to locate and analyze sound sources such as partial discharge, gas/leak detection, and mechanical faults in industrial environments using a 144-microphone array and AI algorithms.

2. What makes the HA3 different from other acoustic cameras?

It features a 144-channel MEMS microphone array, ±1° localization accuracy, AI-based PD type identification, cloud analysis, and one-click reporting, making it more advanced, fast, and lightweight.

3. How far can the HA3 detect sound or leakage?

The device supports an operating distance of 0.3 m to 200 m, depending on the noise level and application.

4. What types of faults can the HA3 detect?

The HA3 can detect:


  • Partial Discharge (corona, surface, internal)

  • Gas/air leaks

  • Mechanical faults (bearings, motors, pumps, valves)

  • Multiple sound sources simultaneously

5. Can the HA3 generate reports automatically?

Yes. It supports one-click analysis, instant report generation, and exporting via Wi-Fi, Bluetooth, or USB. Reports can also be analyzed on PC or cloud software.

6. Does the HA3 support real-time monitoring?

Yes. It supports real-time audio monitoring via Bluetooth, real-time spectrum display, and live sound source visualization on a 5-inch touch screen.

Hertzinno HA3 Multi-Function Acoustic Detector | PD & Leak Detection

The Hertzinno HA3 Handheld Acoustic Camera is a portable device that visualizes sound, helping engineers quickly locate partial discharge, gas leaks, and mechanical faults using a 144-microphone array and advanced AI algorithms.

Feature:

• 144 Low-noise MEMS Microphones
• Partial discharge detection
• Gas leakage detection
• Mechanical fault detection
• Partial discharge type intelligent analysis
• Multiple sound sources detection
• Real-time sound source localization
• Laser rangefinder

Model

HA3

Microphones

144 Digital MEMS

Frequency Range

2 kHz – 130 kHz

Operating Distance

0.3 – 200 m

Sensitivity

10 kHz: 3 dB • 20 kHz: –15 dB • 40 kHz: –5 dB • 60 kHz: 10 dB • 80 kHz: 35 dB • 100 kHz: 45 dB

Space Resolution

≤1 cm @1 m (40 kHz)

Dynamic Range

–30 to 120 dB

Multi-target Range

0 – 18 dB

Optical Camera

13 MP, 72° FOV, LED Light

Photo/Video

4K photo, 1080p @30/60fps

Zoom

1× / 2× / 4× / 8×

Storage

128 GB

Display

5-inch, 1920×1080 touch screen

Connectivity

Wi-Fi (2.4G/5G), Bluetooth 4.2, USB-C

Laser Distance Meter

0.1–20 m, ±1 mm, Class II

Battery

2× Li-ion, PD fast charging

Protection

IP54

Weight

<1 kg

Dimensions

333 × 152 × 115 mm

Operating Temp

–20°C to 55°C

Work Modes

Partial discharge, leak detection, mechanical noise

Software

On-device, PC, Cloud

Data-Sheets : Download

1. What is the Hertzinno HA3 Acoustic Camera used for?

The HA3 is used to locate and analyze sound sources such as partial discharge, gas/leak detection, and mechanical faults in industrial environments using a 144-microphone array and AI algorithms.

2. What makes the HA3 different from other acoustic cameras?

It features a 144-channel MEMS microphone array, ±1° localization accuracy, AI-based PD type identification, cloud analysis, and one-click reporting, making it more advanced, fast, and lightweight.

3. How far can the HA3 detect sound or leakage?

The device supports an operating distance of 0.3 m to 200 m, depending on the noise level and application.

4. What types of faults can the HA3 detect?

The HA3 can detect:


  • Partial Discharge (corona, surface, internal)

  • Gas/air leaks

  • Mechanical faults (bearings, motors, pumps, valves)

  • Multiple sound sources simultaneously

5. Can the HA3 generate reports automatically?

Yes. It supports one-click analysis, instant report generation, and exporting via Wi-Fi, Bluetooth, or USB. Reports can also be analyzed on PC or cloud software.

6. Does the HA3 support real-time monitoring?

Yes. It supports real-time audio monitoring via Bluetooth, real-time spectrum display, and live sound source visualization on a 5-inch touch screen.
