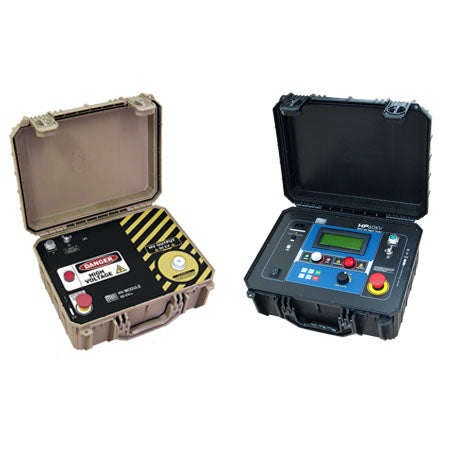

P60KV Smart Hipot DC Tester up to 60 kV
SKU : P60KV
MAKE : MEGABRAS
MODEL : P60KV
WARRANTY : 1 Year
P60KV Smart Hipot DC Tester up to 60 kV
The HP60KV Smart Hipot DC Tester is a state-of-the-art high-voltage testing device designed for dielectric strength and insulation testing. Capable of generating up to 60,000 V of DC output, this tester is ideal for testing transformers, cables, switchgear, and other high-voltage electrical systems. Its smart features, including programmable parameters, remote control via Android app, and automatic test result generation, make it an essential tool for both laboratory and field use. The HP60KV ensures safety with its dual-module design and emergency stop features, making it suitable for high-risk testing environments.
Features
- High Voltage Testing: Generates up to 60 kV DC for comprehensive dielectric and insulation testing.
- Leakage Current Measurement: Measures leakage current up to 6 mA with high accuracy.
- Remote Control via Android: Control and configure tests remotely using the BlueLogg app for enhanced safety.
- Automatic Pass/Fail Indicators: Visual and audible indicators for immediate feedback on test results.
- Adjustable Testing Parameters: Program voltage, ramp rates, test duration, and maximum leakage current for tailored testing needs.
- Sparks Auto-Detection: Automatically halts testing in case of insulation failure.
- Data Storage: Built-in memory for storing up to 16,000 test results.
- Robust Design: IP65 protection for durability in field applications, with lightweight construction for portability.
| Test Voltage | 2,000 V to 60,000 V DC
|
| Voltage Resolution | 100V (from 10 kV to 60 kV)
|
10V (up to 9.99 kV)
| |
| Voltage Accuracy | ± (2% of nominal value ± 2 digits) with 1 mA load
|
| Leakage Current | Max 6 mA
|
| Leakage Current Resolution | 0.01 mA
|
| Leakage Current Accuracy | ± (2% of nominal value ± 2 digits)
|
| Ripple | Less than 2%
|
| Measuring Modes | Manual mode, Auto, Step Voltage Test (SVT), Ramp test, Pass/Fail test
|
| Safety Features | Emergency stop switches, sparks auto-detection, visual LED indicators, and audible alarms
|
| Display | 4-line, 20-character alphanumerical LCD
|
| Built-in Memory | Stores up to 16,000 measured values
|
| Communication | Modbus protocol for real-time control and monitoring
|
USB and Bluetooth for data transfer and remote operation
| |
| Operating Temperature | -5°C to 50°C
|
| Storage Temperature | -25°C to 70°C
|
| Humidity | Up to 95% RH (non-condensing)
|
| Power Supply | 200-240 V AC, 50/60 Hz, 450 VA
|
| Weight |
|
| Control module | Approx. 7.6 kg
|
| High voltage module | Approx. 9.6 kg
|
| Dimensions |
|
| Control module | 450 x 360 x 190 mm
|
| High voltage module | 450 x 360 x 190 mm
|
P60KV Smart Hipot DC Tester up to 60 kV
The HP60KV Smart Hipot DC Tester is a state-of-the-art high-voltage testing device designed for dielectric strength and insulation testing. Capable of generating up to 60,000 V of DC output, this tester is ideal for testing transformers, cables, switchgear, and other high-voltage electrical systems. Its smart features, including programmable parameters, remote control via Android app, and automatic test result generation, make it an essential tool for both laboratory and field use. The HP60KV ensures safety with its dual-module design and emergency stop features, making it suitable for high-risk testing environments.
Features
- High Voltage Testing: Generates up to 60 kV DC for comprehensive dielectric and insulation testing.
- Leakage Current Measurement: Measures leakage current up to 6 mA with high accuracy.
- Remote Control via Android: Control and configure tests remotely using the BlueLogg app for enhanced safety.
- Automatic Pass/Fail Indicators: Visual and audible indicators for immediate feedback on test results.
- Adjustable Testing Parameters: Program voltage, ramp rates, test duration, and maximum leakage current for tailored testing needs.
- Sparks Auto-Detection: Automatically halts testing in case of insulation failure.
- Data Storage: Built-in memory for storing up to 16,000 test results.
- Robust Design: IP65 protection for durability in field applications, with lightweight construction for portability.
| Test Voltage | 2,000 V to 60,000 V DC
|
| Voltage Resolution | 100V (from 10 kV to 60 kV)
|
10V (up to 9.99 kV)
| |
| Voltage Accuracy | ± (2% of nominal value ± 2 digits) with 1 mA load
|
| Leakage Current | Max 6 mA
|
| Leakage Current Resolution | 0.01 mA
|
| Leakage Current Accuracy | ± (2% of nominal value ± 2 digits)
|
| Ripple | Less than 2%
|
| Measuring Modes | Manual mode, Auto, Step Voltage Test (SVT), Ramp test, Pass/Fail test
|
| Safety Features | Emergency stop switches, sparks auto-detection, visual LED indicators, and audible alarms
|
| Display | 4-line, 20-character alphanumerical LCD
|
| Built-in Memory | Stores up to 16,000 measured values
|
| Communication | Modbus protocol for real-time control and monitoring
|
USB and Bluetooth for data transfer and remote operation
| |
| Operating Temperature | -5°C to 50°C
|
| Storage Temperature | -25°C to 70°C
|
| Humidity | Up to 95% RH (non-condensing)
|
| Power Supply | 200-240 V AC, 50/60 Hz, 450 VA
|
| Weight |
|
| Control module | Approx. 7.6 kg
|
| High voltage module | Approx. 9.6 kg
|
| Dimensions |
|
| Control module | 450 x 360 x 190 mm
|
| High voltage module | 450 x 360 x 190 mm
|
