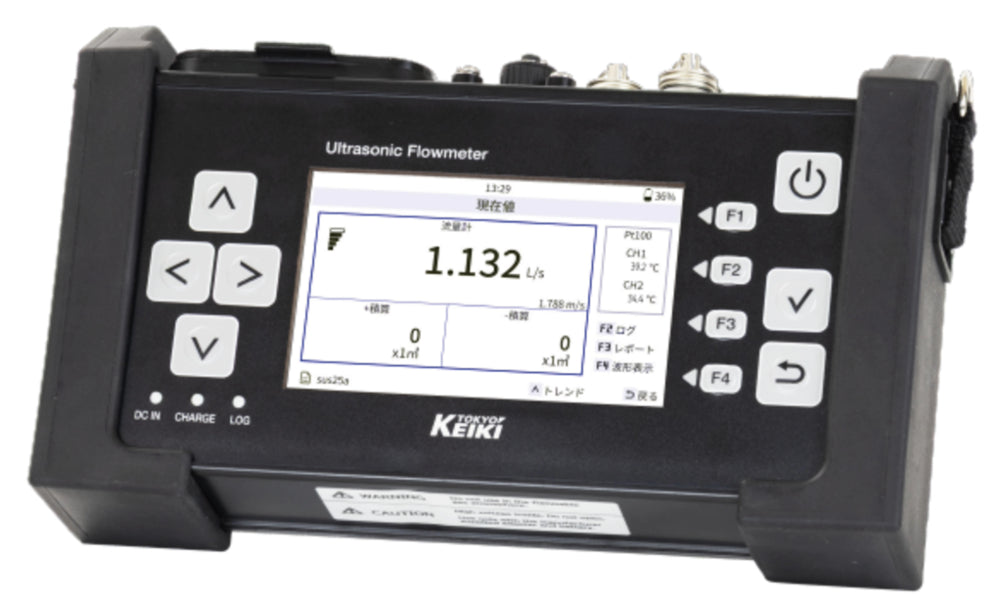

Portable Ultrasonic Flowmeter UW-30P
SKU : UW30P-STD
MAKE : TOKYO KEIKI
MODEL : UW-30P
WARRANTY : 1 Year
Portable Ultrasonic Flowmeter UW-30P
The UW-30P portable ultrasonic flowmeter measures liquid flow by clamping transducers to the outside of pipes (Ø13–5000 mm). Compact and easy to use, it provides accurate flow readings plus optional pipe thickness and ultrasonic velocity measurements. Built-in DSP processing, multiple power options (Li-ion battery/AC/DC) and optional accessories make it ideal for field work, metering and maintenance.
Features:
- Non-invasive clamp-on ultrasonic transducers (fits 13–5000 mm pipes)
- Measures liquid flow via transit-time technology
- Optional pipe thickness and liquid velocity measurement
- Built-in DSP for precise flow and data processing
- Metric or inch display units
- Power options: Li-Ion battery, AC, or DC
- Optional accessories: extra sensors, cables, temperature input for heat metering
- Compact, easy to use — no pipe cutting or shutdown required
- Suitable for clean water and wastewater applications
Model | UW-30P |
Measuring principle | Clamp-on ultrasonic (transit-time) |
Pipe diameter range | 13 → 5000 mm |
Measured parameters | Flow rate (volume & velocity); optional pipe thickness; ultrasonic velocity |
Suitable fluids | Clean water, wastewater (general liquids) |
Onboard processing | DSP for flow calculation; metric / imperial units |
Power options | Li-Ion battery, AC mains, DC supply |
Optional inputs / functions | Temperature input (for heat-meter), extension cables, high-temp transducers |
Transducers | Clamp-on standard (optional high-temperature & specialty types) |
Typical applications | Field metering, maintenance, temporary or permanent checks — no pipe cutting required |
Key benefit | Non-invasive, portable, fast setup and measurement |
Portable Ultrasonic Flowmeter UW-30P
The UW-30P portable ultrasonic flowmeter measures liquid flow by clamping transducers to the outside of pipes (Ø13–5000 mm). Compact and easy to use, it provides accurate flow readings plus optional pipe thickness and ultrasonic velocity measurements. Built-in DSP processing, multiple power options (Li-ion battery/AC/DC) and optional accessories make it ideal for field work, metering and maintenance.
Features:
- Non-invasive clamp-on ultrasonic transducers (fits 13–5000 mm pipes)
- Measures liquid flow via transit-time technology
- Optional pipe thickness and liquid velocity measurement
- Built-in DSP for precise flow and data processing
- Metric or inch display units
- Power options: Li-Ion battery, AC, or DC
- Optional accessories: extra sensors, cables, temperature input for heat metering
- Compact, easy to use — no pipe cutting or shutdown required
- Suitable for clean water and wastewater applications
Model | UW-30P |
Measuring principle | Clamp-on ultrasonic (transit-time) |
Pipe diameter range | 13 → 5000 mm |
Measured parameters | Flow rate (volume & velocity); optional pipe thickness; ultrasonic velocity |
Suitable fluids | Clean water, wastewater (general liquids) |
Onboard processing | DSP for flow calculation; metric / imperial units |
Power options | Li-Ion battery, AC mains, DC supply |
Optional inputs / functions | Temperature input (for heat-meter), extension cables, high-temp transducers |
Transducers | Clamp-on standard (optional high-temperature & specialty types) |
Typical applications | Field metering, maintenance, temporary or permanent checks — no pipe cutting required |
Key benefit | Non-invasive, portable, fast setup and measurement |
