Pro Spector2

ProSpector2 XRF Analyzer

SKU : EP2XRF
MAKE : ELVATECH
MODEL : ProSpector 2
WARRANTY : 1 Year
Elvatech
AED 68,800.00 - AED 68,800.00
AED 68,800.00
AED 68,800.00 - AED 68,800.00
AED 68,800.00
(Including VAT)

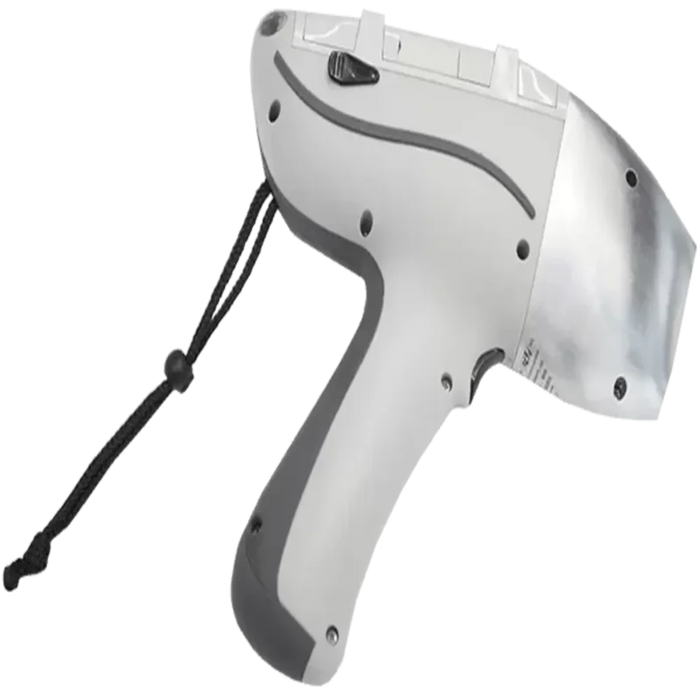

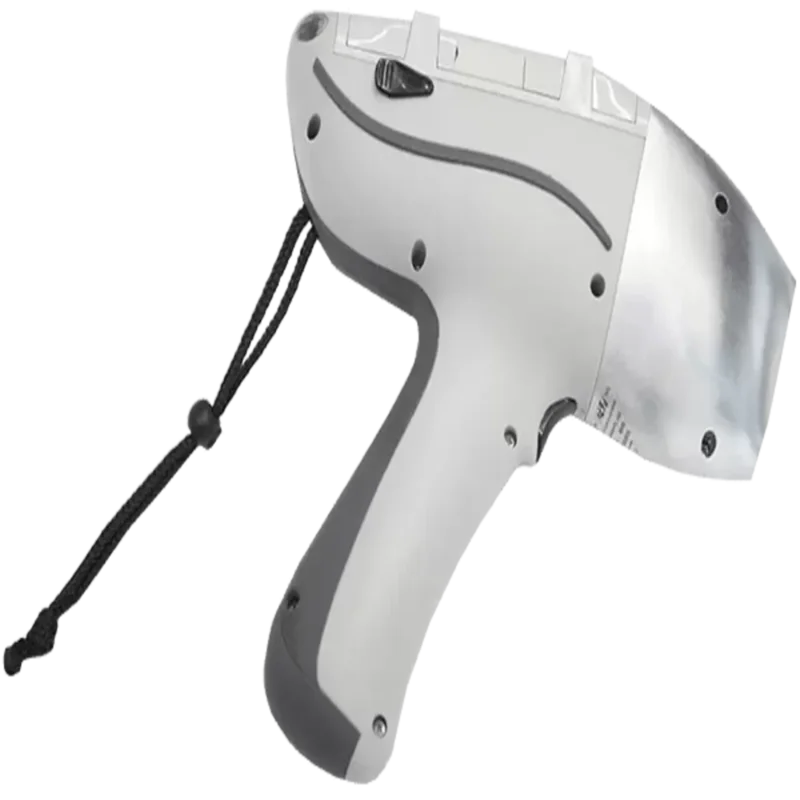

ProSpector2 XRF Analyzer

ProSpector 2 is a portable handheld XRF analyzer that quickly and accurately identifies the elemental composition of metals and materials in 2–20 seconds. Lightweight and rugged with long battery life and built-in safety, it’s ideal for PMI, scrap sorting, QC and field inspections.

Features:

  • Handheld portable XRF analyzer
  • Fast readings: 2–20 seconds
  • Element range: Cl → U (LE option: Mg → U)
  • High throughput: ~500,000 CPS
  • Detector: Si-PIN (SDD optional)
  • Battery life: >10 hours per charge
  • Lightweight: ~1.4 kg (with battery)
  • Safety: IR proximity + low-count protection
  • Tool-free protective film replacement
  • Optional small-spot / weld adapter and lab stand
  • Barcode / QR sample traceability



Model



ProSpector 2



X-ray tube



W, 40 kV (digiX-40)



Detector



Si-PIN diode (SDD optional)



Element range



Cl → U (LE option: Mg → U)



Count rate



~500,000 CPS



Measurement time



~2–20 s



Battery life



>10 hours



Weight



~1.4 kg (with battery)



Size



242 × 230 × 78 mm



Safety features



IR proximity, low-count protection, protective film



Connectivity



Bluetooth (optional), USB; ElvaX PC reporting



Ingress protection



IP54



Typical accessories



Weld/small-spot adapter, lab stand, film pack, calibration coupon



Data-Sheets : Download

Q1. What elements can it detect?

A: Standard Cl → U. Optional LE version extends down to Mg → U.

Q2. How fast are the readings?

A: Typical results in 2–20 seconds (depends on element and precision).

Q3. How long does the battery last?

A: Over 10 hours of continuous operation on a full charge.

Q4. Does it need frequent calibration?

A: No — it has automatic temperature (and barometric where fitted) compensation for stable results; routine calibration checks are simple.

Q5. What safety features does it have?

A: Built-in IR proximity sensor, low-count protection, and a protective detector film/window to prevent accidental X-ray firing and protect the detector.

Q6. Can it test small parts or welds?

A: Yes — optional small-spot / weld adapter and lab-stand accessories enable precise analysis of small areas.

ProSpector2 XRF Analyzer

ProSpector 2 is a portable handheld XRF analyzer that quickly and accurately identifies the elemental composition of metals and materials in 2–20 seconds. Lightweight and rugged with long battery life and built-in safety, it’s ideal for PMI, scrap sorting, QC and field inspections.

Features:

  • Handheld portable XRF analyzer
  • Fast readings: 2–20 seconds
  • Element range: Cl → U (LE option: Mg → U)
  • High throughput: ~500,000 CPS
  • Detector: Si-PIN (SDD optional)
  • Battery life: >10 hours per charge
  • Lightweight: ~1.4 kg (with battery)
  • Safety: IR proximity + low-count protection
  • Tool-free protective film replacement
  • Optional small-spot / weld adapter and lab stand
  • Barcode / QR sample traceability



Model



ProSpector 2



X-ray tube



W, 40 kV (digiX-40)



Detector



Si-PIN diode (SDD optional)



Element range



Cl → U (LE option: Mg → U)



Count rate



~500,000 CPS



Measurement time



~2–20 s



Battery life



>10 hours



Weight



~1.4 kg (with battery)



Size



242 × 230 × 78 mm



Safety features



IR proximity, low-count protection, protective film



Connectivity



Bluetooth (optional), USB; ElvaX PC reporting



Ingress protection



IP54



Typical accessories



Weld/small-spot adapter, lab stand, film pack, calibration coupon



Data-Sheets : Download

Q1. What elements can it detect?

A: Standard Cl → U. Optional LE version extends down to Mg → U.

Q2. How fast are the readings?

A: Typical results in 2–20 seconds (depends on element and precision).

Q3. How long does the battery last?

A: Over 10 hours of continuous operation on a full charge.

Q4. Does it need frequent calibration?

A: No — it has automatic temperature (and barometric where fitted) compensation for stable results; routine calibration checks are simple.

Q5. What safety features does it have?

A: Built-in IR proximity sensor, low-count protection, and a protective detector film/window to prevent accidental X-ray firing and protect the detector.

Q6. Can it test small parts or welds?

A: Yes — optional small-spot / weld adapter and lab-stand accessories enable precise analysis of small areas.
