Stellar Instruments Inspecta Series
In stock

Inspecta ZX4030 Pipeline Inspection Camera with 37mm Camera

SKU : HDZX4030
MODEL : ZX4030
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Stellar Instruments
AED 17,500.00 - AED 17,500.00
AED 17,500.00
AED 17,500.00 - AED 17,500.00
AED 17,500.00
(Including VAT)

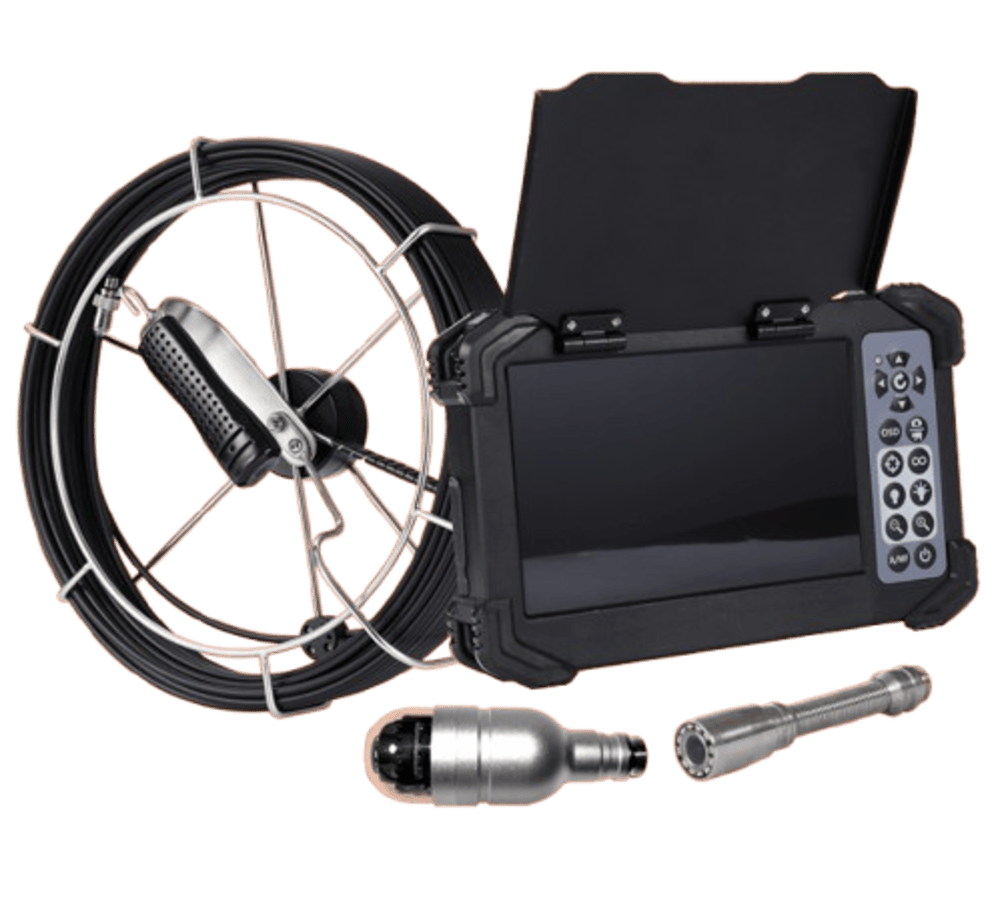

Inspecta ZX4030 Pipeline Inspection Camera with 37mm Camera

The Inspecta Series HD Inspection Camera is a high-performance industrial pipeline inspection system designed for precise and reliable internal pipe inspection. Engineered for complex and long-distance pipelines, it delivers real-time, high-definition visuals to identify defects such as corrosion, cracks, leaks, and blockages.

Equipped with a vertical reel system and a semi-rigid pushrod cable (up to 60 meters), it ensures smooth navigation through slightly curved pipelines. The system features multiple interchangeable camera heads, advanced LED illumination, and a precision metering system for accurate cable length tracking.

Built with durability and advanced imaging technology, the Inspecta Series is ideal for applications in petrochemical plants, power generation, municipal drainage systems, and industrial maintenance.

Features:

  • 7” touchscreen with dual-mode operation
  • Multiple camera options (8mm, 18mm, 37mm)
  • 360° pan & 240° tilt (37mm camera)
  • High-definition 1MP imaging
  • Adjustable high-brightness LED lighting
  • IP68 waterproof design
  • Up to 60m pushrod cable
  • Built-in cable meter counter
  • Professional cable reel system
  • 6600 mAh rechargeable battery

Display

7-inch HD Touchscreen

Resolution

1 Megapixel (HD)

Camera Options

8mm / 18mm / 37mm

Camera Rotation

360° Pan, 240° Tilt (37mm Camera)

LED Lighting

Adjustable High-Brightness LEDs (6 / 8 / 18 LEDs)

Waterproof Rating

IP68

Cable Length

20m / 30m / 60m (depending on model)

Cable Type

Semi-rigid Pushrod Cable

Meter Counter

Built-in Digital Length Counter

Battery Type

Rechargeable Li-ion Battery

Battery Capacity

6600 mAh

Recording Function

Photo & Video Recording

Zoom Function

Electronic Zoom

Operating Control

Touchscreen + Button Control

Reel System

Vertical Cable Reel

Application Range

Industrial, Municipal, Petrochemical Pipelines

ZX4030-Datasheet : Download

1. What is the maximum inspection length of the camera?

The system supports pushrod cable lengths of up to 60 meters, suitable for long-distance pipeline inspections.

2. What pipe sizes can this camera inspect?

Depending on the camera head (8mm, 18mm, or 37mm), it can inspect pipes ranging from small narrow lines to large pipelines (75mm–250mm with skid support).

3. Is the camera waterproof?

Yes, all camera heads are rated IP68, making them suitable for wet, submerged, and harsh environments.

4. Does the system have recording capability?

Yes, the system provides real-time viewing and recording, allowing users to capture images and videos for analysis and reporting.

5. What is the battery backup?

The device is equipped with a 6600 mAh rechargeable Li-ion battery, ensuring extended field operation.

6. Can the camera head rotate inside the pipe?

Yes, the 37mm camera features 360° pan and 240° tilt, enabling full internal inspection coverage.

Inspecta ZX4030 Pipeline Inspection Camera with 37mm Camera

The Inspecta Series HD Inspection Camera is a high-performance industrial pipeline inspection system designed for precise and reliable internal pipe inspection. Engineered for complex and long-distance pipelines, it delivers real-time, high-definition visuals to identify defects such as corrosion, cracks, leaks, and blockages.

Equipped with a vertical reel system and a semi-rigid pushrod cable (up to 60 meters), it ensures smooth navigation through slightly curved pipelines. The system features multiple interchangeable camera heads, advanced LED illumination, and a precision metering system for accurate cable length tracking.

Built with durability and advanced imaging technology, the Inspecta Series is ideal for applications in petrochemical plants, power generation, municipal drainage systems, and industrial maintenance.

Features:

  • 7” touchscreen with dual-mode operation
  • Multiple camera options (8mm, 18mm, 37mm)
  • 360° pan & 240° tilt (37mm camera)
  • High-definition 1MP imaging
  • Adjustable high-brightness LED lighting
  • IP68 waterproof design
  • Up to 60m pushrod cable
  • Built-in cable meter counter
  • Professional cable reel system
  • 6600 mAh rechargeable battery

Display

7-inch HD Touchscreen

Resolution

1 Megapixel (HD)

Camera Options

8mm / 18mm / 37mm

Camera Rotation

360° Pan, 240° Tilt (37mm Camera)

LED Lighting

Adjustable High-Brightness LEDs (6 / 8 / 18 LEDs)

Waterproof Rating

IP68

Cable Length

20m / 30m / 60m (depending on model)

Cable Type

Semi-rigid Pushrod Cable

Meter Counter

Built-in Digital Length Counter

Battery Type

Rechargeable Li-ion Battery

Battery Capacity

6600 mAh

Recording Function

Photo & Video Recording

Zoom Function

Electronic Zoom

Operating Control

Touchscreen + Button Control

Reel System

Vertical Cable Reel

Application Range

Industrial, Municipal, Petrochemical Pipelines

ZX4030-Datasheet : Download

1. What is the maximum inspection length of the camera?

The system supports pushrod cable lengths of up to 60 meters, suitable for long-distance pipeline inspections.

2. What pipe sizes can this camera inspect?

Depending on the camera head (8mm, 18mm, or 37mm), it can inspect pipes ranging from small narrow lines to large pipelines (75mm–250mm with skid support).

3. Is the camera waterproof?

Yes, all camera heads are rated IP68, making them suitable for wet, submerged, and harsh environments.

4. Does the system have recording capability?

Yes, the system provides real-time viewing and recording, allowing users to capture images and videos for analysis and reporting.

5. What is the battery backup?

The device is equipped with a 6600 mAh rechargeable Li-ion battery, ensuring extended field operation.

6. Can the camera head rotate inside the pipe?

Yes, the 37mm camera features 360° pan and 240° tilt, enabling full internal inspection coverage.
