TEKON 570

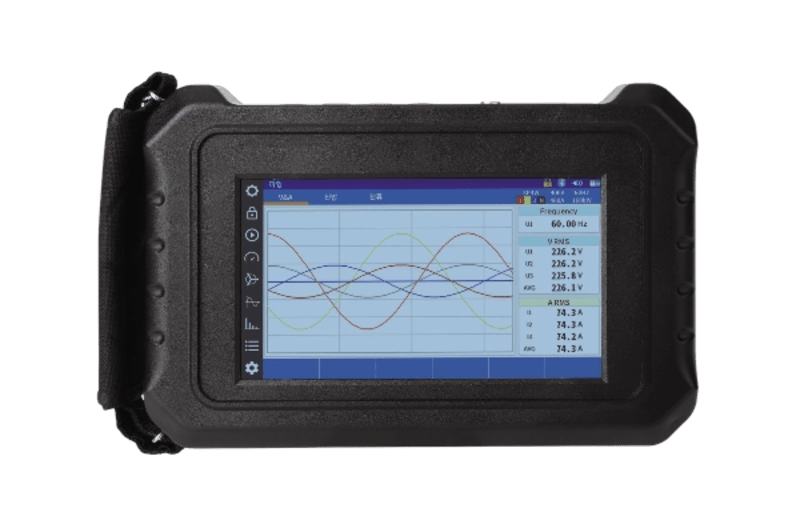

Power Quality Analyzer Tekon 570

MAKE : TEKON
MODEL : TEKON 570
Tekon
AED 12,400.00 - AED 12,400.00
AED 12,400.00
AED 12,400.00 - AED 12,400.00
AED 12,400.00
(Including VAT)

Power Quality Analyzer Tekon 570

The TEKON 570 is a portable, handheld power quality analyzer designed for accurate measurement, diagnosis, and analysis of electrical power systems. It is suitable for power distribution networks, industrial facilities, maintenance teams, and commissioning engineers who need reliable power quality monitoring and electrical parameter analysis.

With its large 7-inch touch screen, the TEKON 570 offers an easy-to-use interface for real-time measurement, logging, analysis, and reporting of power quality data.

Features:

  • 7” color touch LCD screen for easy parameter setup, analysis, and waveform viewing
  • 4 voltage and 4 current channels with support for single-phase and three-phase systems
  • Supports multiple wiring configurations:
  • 1P2W, 1P3W, 3P3W, 3P4W
  • Measures key electrical parameters:
  • Voltage, Current, Active Power, Reactive Power, Apparent Power
  • Power Factor (cos φ), Frequency
  • Energy (Active/Reactive/Generated/Consumed)
  • Power quality analysis as per EN50160 standard
  • Harmonics measurement up to 50th harmonic
  • THD, voltage imbalance, flicker, voltage dips, swells, interruptions
  • Real-time waveforms and phasor diagrams display
  • Event recording: sag, swell, outage, inrush, and transient detection

Model

TEKON 570

Display

7-inch Color Touch Screen LCD

Measurement Type

Power Quality Analyzer

Voltage Channels

4

Current Channels

4

Wiring Configurations

1P2W, 1P3W, 3P3W, 3P4W

Voltage Measurement Range

Up to 1000 V (with suitable probes)

Current Measurement Range

Depends on clamp / current probe used

Frequency Range

45 – 65 Hz

Power Measurement

Active, Reactive, Apparent Power

Energy Measurement

Active, Reactive, Import & Export

Power Factor

Yes

Harmonics

Up to 50th Order

THD Measurement

Voltage & Current

Power Quality Standard

EN50160

Event Recording

Voltage dip, swell, interruption, transient, inrush

Waveform Display

Real-time waveform and vector diagram

Data Logging

Yes

Storage

Micro SD Card

Communication

USB

Battery

Built-in Rechargeable Lithium-ion

Operating Temperature

-10°C to +50°C

Weight

Approx. 900 g

Dimensions

Handheld Portable Design

Data-Sheet : Download

1. What is the TEKON 570 used for?

The TEKON 570 is used for analyzing power quality and electrical parameters such as voltage, current, harmonics, power factor, and energy consumption in single-phase and three-phase electrical systems.

2. What type of electrical systems does it support?

It supports single-phase and three-phase systems with multiple wiring configurations including 1P2W, 1P3W, 3P3W, and 3P4W.

3. Can the TEKON 570 measure harmonics and THD?

Yes, the TEKON 570 can measure harmonics up to the 50th order and also calculates Total Harmonic Distortion (THD) for both voltage and current.

4. Does it comply with international power quality standards?

Yes, the TEKON 570 performs power quality analysis according to the EN50160 standard.

5. What storage and data transfer options does it have?

The device supports data storage via Micro SD card and allows data transfer to a PC through USB connection.

6. Can it log power events like voltage dips and power interruptions?

Yes, it can capture and record power events such as voltage dips, swells, interruptions, inrush current, and transient events for detailed analysis.
