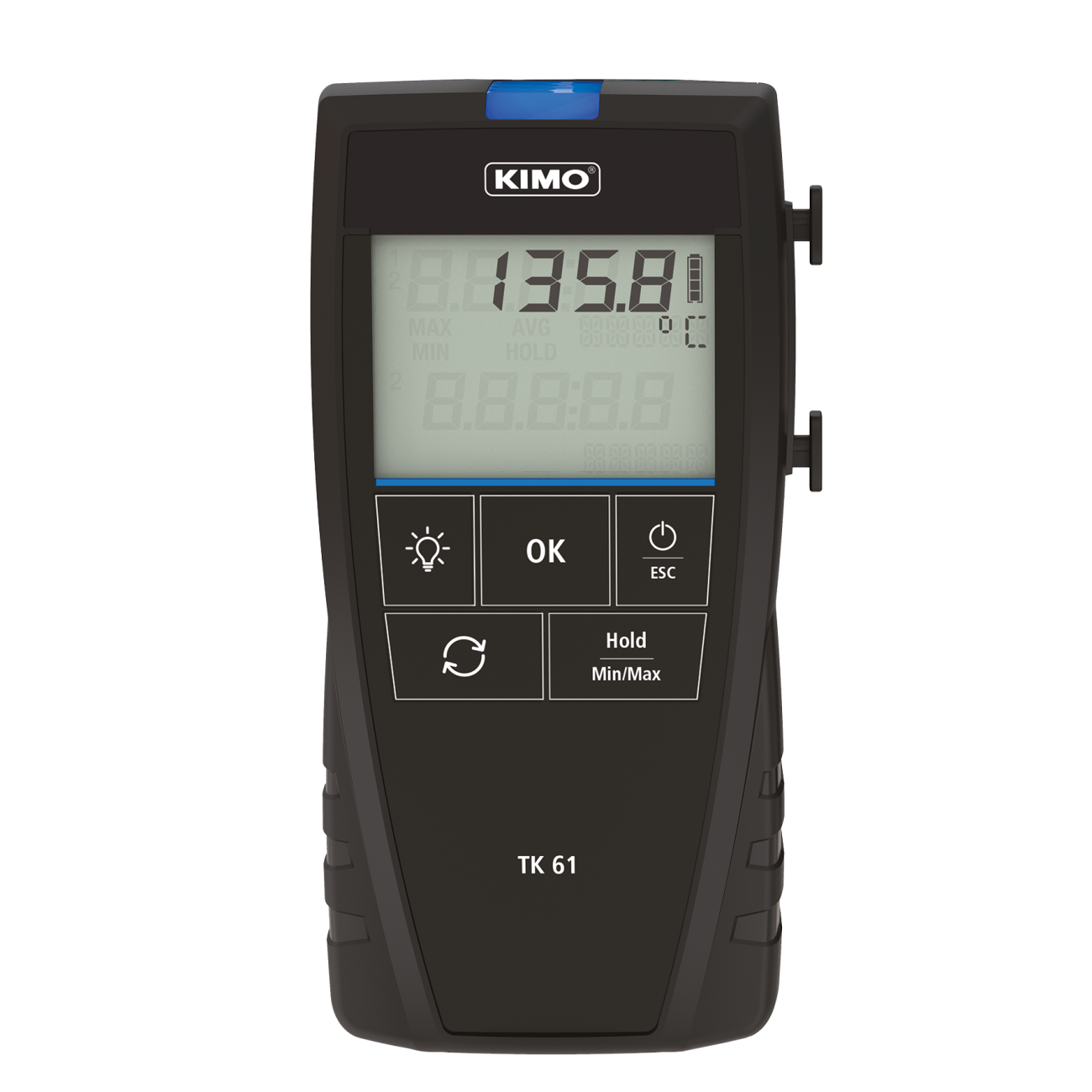

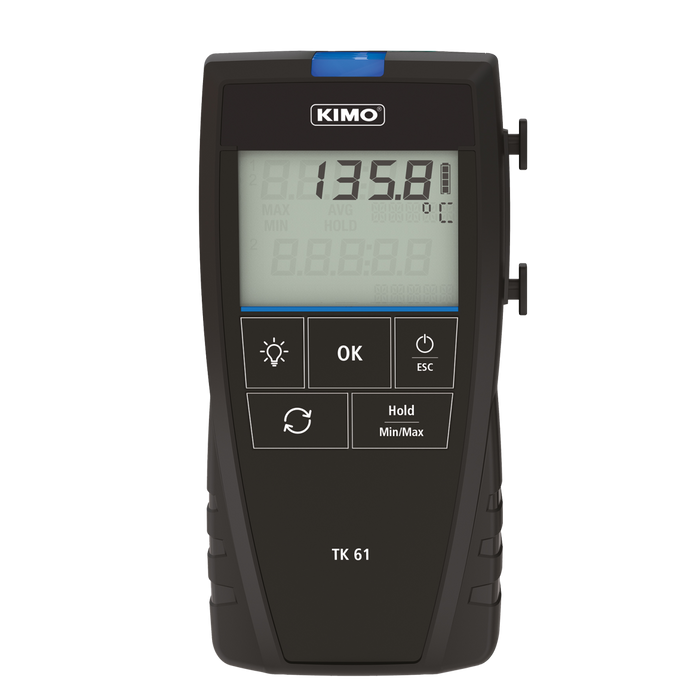

TK61 Thermocouple Thermometer
In stock

TK61 Thermocouple Thermometer

SKU : SRMTK61
MAKE : SAUERMANN
MODEL : TK61
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Sauermann
AED 620.00 - AED 620.00
AED 620.00
AED 620.00 - AED 620.00
AED 620.00
(Including VAT)

TK61 Thermocouple Thermometer

The TK 61 is a single-channel thermocouple thermometer designed for precise temperature measurements. It supports multiple thermocouple types (K, J, T, or S) and is equipped with an LCD display that shows both the value and unit. The device is compact, housed in an ABS casing with IP54 protection, making it suitable for various industrial and laboratory applications.

Measuring Elements:K, J, T, or S thermocouple
Channels:1 channel
Display:
  • 4 lines LCD (50 x 36 mm)
  • 2 lines of 5 digits with 7 segments for value
  • 2 lines of 5 digits with 16 segments for unit
Housing:ABS, IP54 protection
Keypad:5 keys
Connectors:Compensated miniature female connectors
Power Supply:4 AAA LR03 1.5 V batteries
Battery Life:180 hours
Operating Conditions:0 to +50°C, non-condensing, up to 2000 m altitude
Storage Temperature:-20 to +80°C
Auto Shut-Off:Adjustable from 0 to 120 minutes
Weight:210 g
Compliance:European directives 2014/30/EU, 2014/35/EU, 2011/65/EU, 2012/19/EU







  • Magnetic Protective Housing (CQ 15)
  • Telescopic Extension (RTE)
  • Thermocouple Temperature Probes
  • Black Ball Ø150 mm with Stuffing Box for Temperature Probe Ø4.5 mm
  • Transport Case (ST 110)
  • Calibration Certificate
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What types of thermocouples are compatible with the TK 61?

The TK 61 is compatible with K, J, T, and S type thermocouples.

Q2. What is the battery life of the TK 61?

The TK 61 can operate for up to 180 hours on four AAA LR03 1.5 V batteries.

Q3. What is the accuracy of the TK 61?

Accuracy varies by thermocouple type but typically ranges from ±0.5°C to ±1.1°C or ±0.4% of the reading value.

Q4. What is the operating temperature range for the TK 61?

The device operates within a temperature range of 0 to +50°C in non-condensing conditions.

Q5. Does the TK 61 come with a calibration certificate?

Yes, the TK 61 is supplied with an adjustment certificate. Calibration and maintenance services are recommended annually.

Q6. What are the dimensions of the TK 61 display?

The LCD display dimensions are 50 x 36 mm, featuring 4 lines with both value and unit indicators.

TK61 Thermocouple Thermometer

The TK 61 is a single-channel thermocouple thermometer designed for precise temperature measurements. It supports multiple thermocouple types (K, J, T, or S) and is equipped with an LCD display that shows both the value and unit. The device is compact, housed in an ABS casing with IP54 protection, making it suitable for various industrial and laboratory applications.

Measuring Elements:K, J, T, or S thermocouple
Channels:1 channel
Display:
  • 4 lines LCD (50 x 36 mm)
  • 2 lines of 5 digits with 7 segments for value
  • 2 lines of 5 digits with 16 segments for unit
Housing:ABS, IP54 protection
Keypad:5 keys
Connectors:Compensated miniature female connectors
Power Supply:4 AAA LR03 1.5 V batteries
Battery Life:180 hours
Operating Conditions:0 to +50°C, non-condensing, up to 2000 m altitude
Storage Temperature:-20 to +80°C
Auto Shut-Off:Adjustable from 0 to 120 minutes
Weight:210 g
Compliance:European directives 2014/30/EU, 2014/35/EU, 2011/65/EU, 2012/19/EU







  • Magnetic Protective Housing (CQ 15)
  • Telescopic Extension (RTE)
  • Thermocouple Temperature Probes
  • Black Ball Ø150 mm with Stuffing Box for Temperature Probe Ø4.5 mm
  • Transport Case (ST 110)
  • Calibration Certificate
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What types of thermocouples are compatible with the TK 61?

The TK 61 is compatible with K, J, T, and S type thermocouples.

Q2. What is the battery life of the TK 61?

The TK 61 can operate for up to 180 hours on four AAA LR03 1.5 V batteries.

Q3. What is the accuracy of the TK 61?

Accuracy varies by thermocouple type but typically ranges from ±0.5°C to ±1.1°C or ±0.4% of the reading value.

Q4. What is the operating temperature range for the TK 61?

The device operates within a temperature range of 0 to +50°C in non-condensing conditions.

Q5. Does the TK 61 come with a calibration certificate?

Yes, the TK 61 is supplied with an adjustment certificate. Calibration and maintenance services are recommended annually.

Q6. What are the dimensions of the TK 61 display?

The LCD display dimensions are 50 x 36 mm, featuring 4 lines with both value and unit indicators.
