UFM700 1
In stock

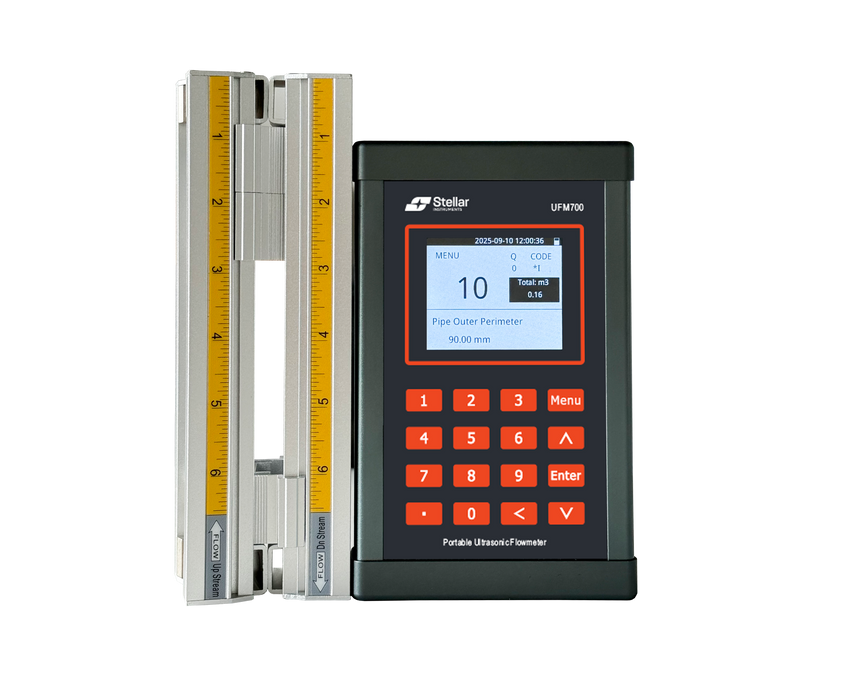

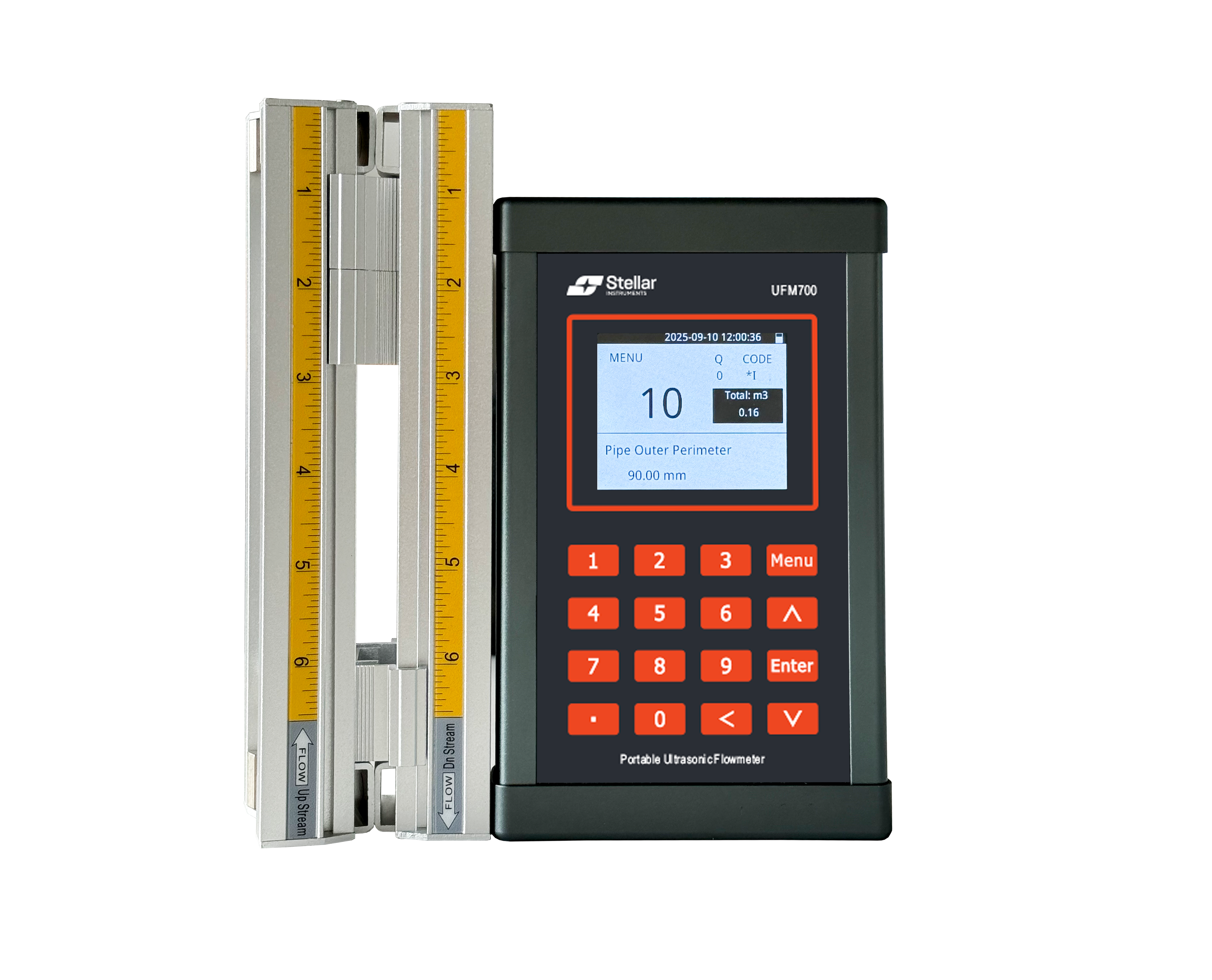

Ultrasonic Flowmeter UFM700

SKU : UFM700
MAKE : STELLAR INSTRUMENT
MODEL : UFM700
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Stellar Instruments
AED 10,800.00 - AED 10,800.00
AED 10,800.00
AED 10,800.00 - AED 10,800.00
AED 10,800.00
(Including VAT)

Ultrasonic Flowmeter UFM700

The UFM700 is a compact and lightweight time-difference ultrasonic flowmeter designed for portable, on-site flow measurement. Featuring a magnetic clamp-on transducer, it allows quick, non-intrusive installation without pipe cutting. Powered by a rechargeable battery or universal supply, it ensures convenient field operation. Ideal for accurate measurement of various uniform liquids, it suits applications in industrial processes, water and wastewater treatment, HVAC systems, aquaculture, solar energy, and agricultural irrigation.

Features

  • Portable & lightweight
  • Rechargeable battery
  • Clamp-on installation
  • Universal power supply
  • No process interruption
  • Wide application range

Model



UFM700



Flowmeter Type



Ultrasonic Flowmeter



Pipe Size



25mm – 400mm



Flow Velocity Range



0.01 m/s – 5 m/s



Accuracy



±1% of measured value (0.5 m/s – 5 m/s



Temperature Range (Medium)





0°C – 80°C (standard)



Ambient Temperature Range



0°C – 50°C



Humidity



0 – 99% RH, non-condensing



Weight (Flowmeter)



0.7 kg



Power Supply



10.8V rechargeable lithium battery



Display



16 Touch Keys



Frequency Range



0 – 9999 Hz, 0°C T output



Datasheet : Download

1. What is the UFM700?

A compact, portable ultrasonic flowmeter designed for non-intrusive pipeline flow measurement.

2. How is it installed?

It uses a magnetic clamp-on transducer, allowing quick installation without cutting pipes.

3. What liquids can it measure?

Suitable for uniform liquids such as water, wastewater, seawater, cooling water, and industrial process fluids.

4. Does it require a power supply?

Yes, it has a rechargeable battery and supports universal power supply for field use

5. Can it measure corrosive or toxic media?

Yes, non-intrusive measurement makes it ideal for toxic, corrosive, or pressurized liquids.

6. Is it suitable for overhead or pressurized pipelines?

Yes, it works well in overhead pipelines and pressure-resistant systems.

Ultrasonic Flowmeter UFM700

The UFM700 is a compact and lightweight time-difference ultrasonic flowmeter designed for portable, on-site flow measurement. Featuring a magnetic clamp-on transducer, it allows quick, non-intrusive installation without pipe cutting. Powered by a rechargeable battery or universal supply, it ensures convenient field operation. Ideal for accurate measurement of various uniform liquids, it suits applications in industrial processes, water and wastewater treatment, HVAC systems, aquaculture, solar energy, and agricultural irrigation.

Features

  • Portable & lightweight
  • Rechargeable battery
  • Clamp-on installation
  • Universal power supply
  • No process interruption
  • Wide application range

Model



UFM700



Flowmeter Type



Ultrasonic Flowmeter



Pipe Size



25mm – 400mm



Flow Velocity Range



0.01 m/s – 5 m/s



Accuracy



±1% of measured value (0.5 m/s – 5 m/s



Temperature Range (Medium)





0°C – 80°C (standard)



Ambient Temperature Range



0°C – 50°C



Humidity



0 – 99% RH, non-condensing



Weight (Flowmeter)



0.7 kg



Power Supply



10.8V rechargeable lithium battery



Display



16 Touch Keys



Frequency Range



0 – 9999 Hz, 0°C T output



Datasheet : Download

1. What is the UFM700?

A compact, portable ultrasonic flowmeter designed for non-intrusive pipeline flow measurement.

2. How is it installed?

It uses a magnetic clamp-on transducer, allowing quick installation without cutting pipes.

3. What liquids can it measure?

Suitable for uniform liquids such as water, wastewater, seawater, cooling water, and industrial process fluids.

4. Does it require a power supply?

Yes, it has a rechargeable battery and supports universal power supply for field use

5. Can it measure corrosive or toxic media?

Yes, non-intrusive measurement makes it ideal for toxic, corrosive, or pressurized liquids.

6. Is it suitable for overhead or pressurized pipelines?

Yes, it works well in overhead pipelines and pressure-resistant systems.
