Ultrasonic Heat Meter BTU for Energy Metering

SKU : E3-DN32
MAKE : PFLOW
MODEL : E3-DN32
AVAILABILITY : IN STOCK
Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 4,200.00
AED 4,200.00 - AED 4,200.00
Current price AED 4,200.00
(Including VAT)

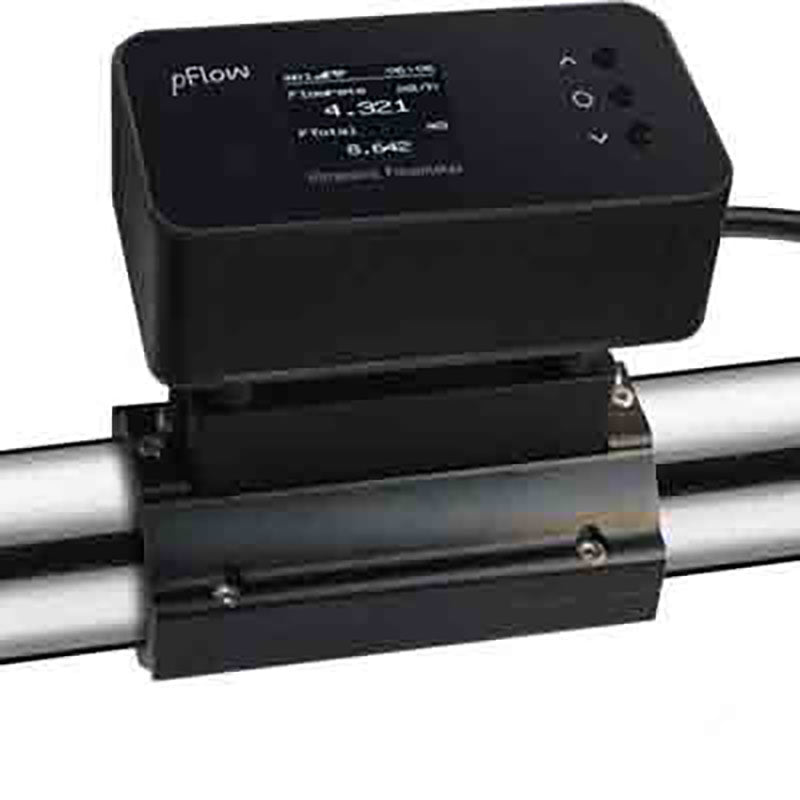

Ultrasonic Heat Meter BTU for Energy Metering

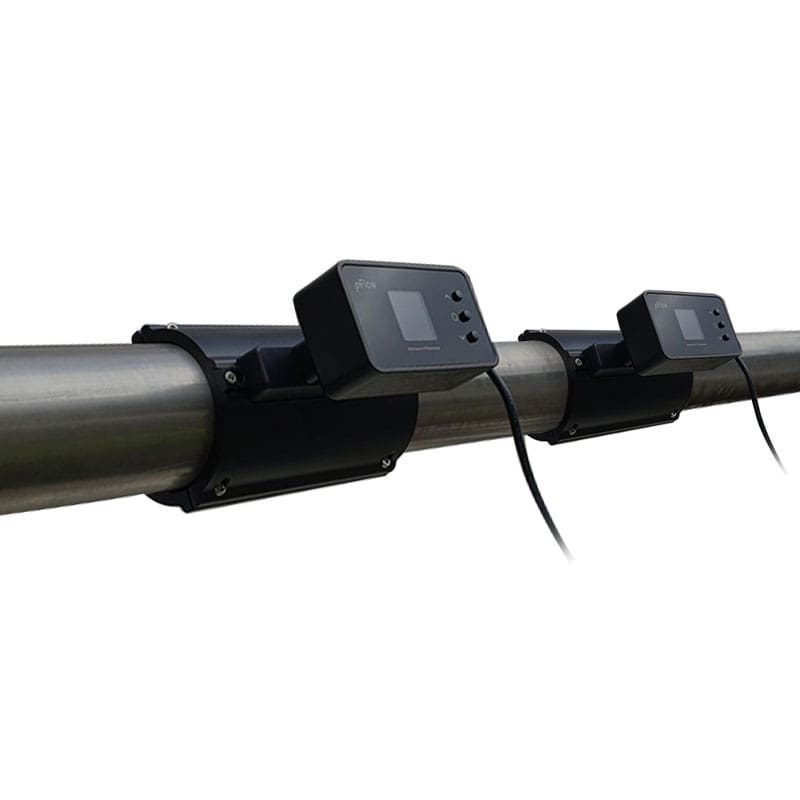

Clamp-on type ultrasonic flow meter is for the difficulty of installing a conventional model in an old building. It features with clamp-on PT1000 temperature sensor, no need to cut pipes and to shut down machines. Easy operation menu Display instantaneous heating energy and accumulated heating energy Display instantaneous cooling energy and accumulated cooling energy Displaying Instantaneous Flow and Selecting Flow Units Optional unit: m3/h, l/m, gpm(UK), cfm, gpm(USA) Display instantaneous energy and select energy units Optional unit: KJ/h, MJ/h, GJ/h, Kcal/h, Mcal/h, KWh, MWh, Kbtu/h.

Features:

  •  very portable design
  •  Easy to install through 6 screws
  •  TCT (Time Comb Technology) is a kind of technology used to measure signal flight time.
  •  Wi-Fi communication
Ultrasonic Heat Meter BTU for Energy Metering
Display

LCD1.44”

Flow range

0.03m/s~±5m/s (0.1 ft/s ~ ±16ft/s)

Accuracy

±2.0%

Repeatability

0.8%

Pipe size range

DN32
{Optional : DN20 DN25 DN32 DN40 DN50 DN65 DN80}

Temperature

Transmitter:14℉~122℉(-10℃~50℃)
Transducer measurement medium:32℉~140℉(0℃~60℃)

Pipe material

PVC, Carbon Steel, Stainless Steel, Copper

Outputs

Analog output: WiFi,4~20mA, Rs485, OCT Pulse, Relay options

Protection rating

IP54 Housing

Power Supply

10~36VDC, 500mA
