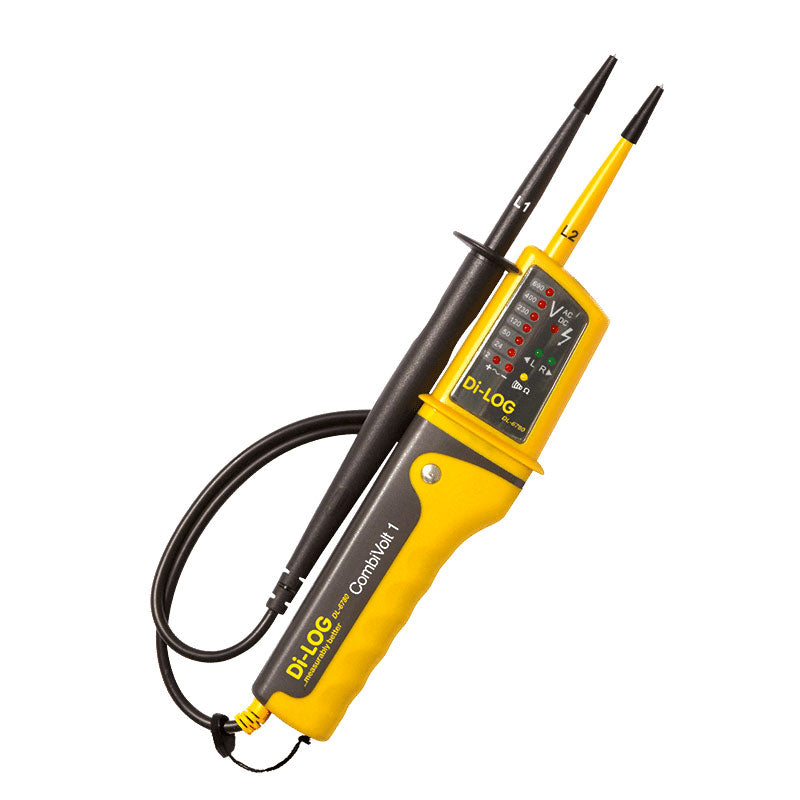

Voltage Continuity Tester DL6780

SKU : DLVD6780
MAKE : DI-LOG
MODEL : DL6780
AVAILABILITY : IN STOCK
Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 180.00
AED 180.00 - AED 180.00
Current price AED 180.00
(Including VAT)

Voltage Continuity Tester DL6780

The Di-log DL6780 CombiVolt 1 Voltage & Continuity Tester with Phase Rotation test is the bench mark for voltage indicators. The three-in-one tester with a rugged, ergonomically formed housing for perfect handling is fully conformant to BS EN 64213-3:2014. The DL6780 also offers Single Phase Detection

Features:

  •  Testing of AC/ DC voltages from 12 to 690 V AC/DC
  •  Meets safety and performance requirements of BS EN 61243-3 2014
  •  CAT IV 600V Safety Rating
  •  Continuity testing with optical and acoustic indication
  •  Automatic switching between voltage and continuity
  •  Phase rotation test system
  •  Single pole phase indication
  •  Fully compliant with GS38
  •  Fully operational voltage indication even when batteries are discharged
  •  Will not trip any RCD when testing across Live and Earth
  •  Single pole detection when L2 probe connected above 100V
Voltage Continuity Tester
Voltage display

12 – 690 V AC/DC

LED resolution

12, 24 , 50, 120, 230, 400, 690

Voltage detection

Automatic

Acoustic signal

AC voltage – DC voltage

Polarity detection

Full range

Response time

LED < 0.1s, LCD <2s

Frequency range

0 – 400 Hz

Peak current

Is < 0.3 A / Is (after 5s) < 3.5 mA

Voltage range

100 – 690 V AC

Safety Standards

CAT IV 600V
IEC 60529 (IP65), 61243-3
EN61010-1:2010, EN61010-2-033:2010, EN61010-031:2002+A1:2008, IEC 61243-3:2009, EN61243-3:2010, EN61243-3:2014 & EN61326-1

Dimensions

255 x 70 x 28 mm

Weight

200g
