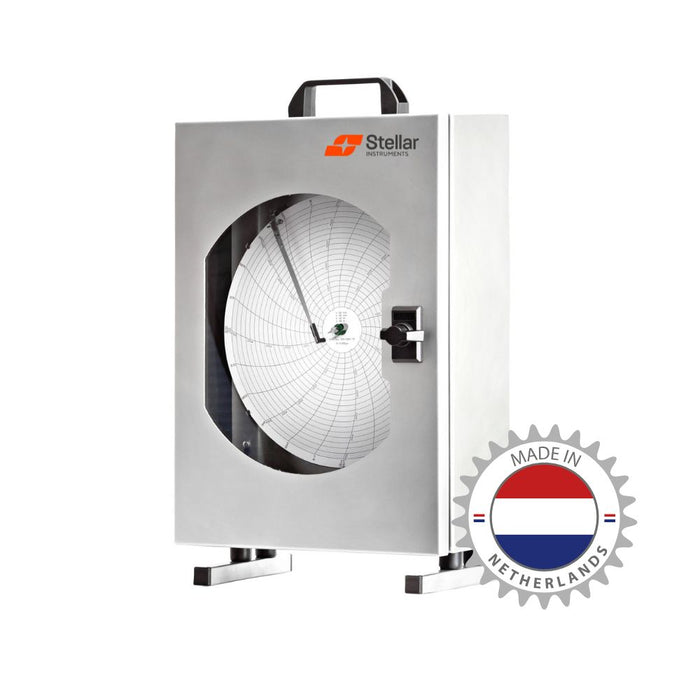

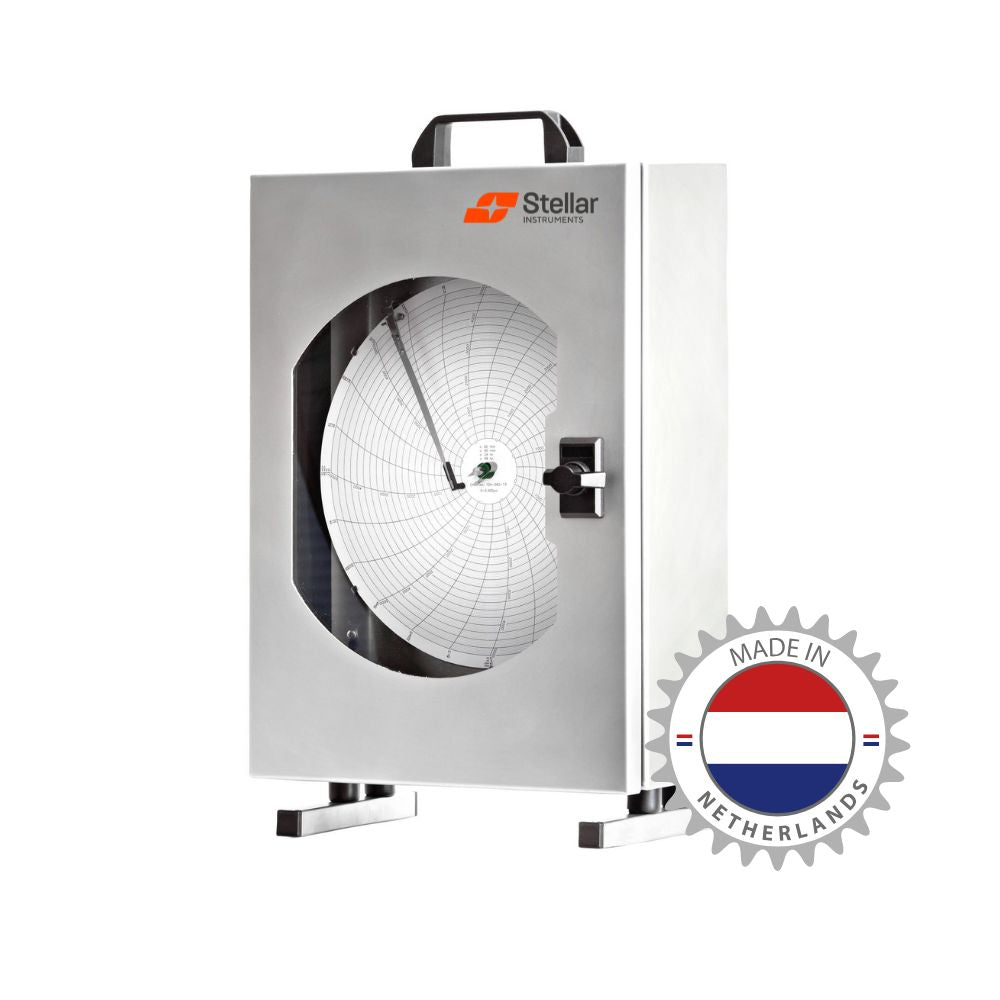

SICRB-12 Stainless Steel Pressure & Temperature Chart Recorder
In stock

SICRB-12 Stainless Steel Pressure & Temperature Chart Recorder

MODEL : SICRB-12
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Stellar Instruments
AED 11,800.00 - AED 11,800.00
AED 11,800.00
AED 11,800.00 - AED 11,800.00
AED 11,800.00
(Including VAT)

SICRB-12 Stainless Steel Pressure & Temperature Chart Recorder

The SICRB-12 Series Chart Recorder by Stellar Instruments is a robust stainless-steel chart recorder designed for accurate pressure and/or temperature recording. It is specifically built for 12-inch (Ø300 mm) charts and is widely used in gas transmission and distribution applications where reliable calibration and continuous recording are critical.

The recorder features a modular design and is available in single, double, or triple pen configurations, allowing simultaneous recording of pressure, temperature, or a combination of both. To ensure uninterrupted operation in different environments, it supports mains-powered, Swiss-made battery-operated, or mechanical spring-wound clock mechanisms.

With its IP65-rated stainless steel enclosure, the SICRB-12 offers excellent protection in harsh industrial conditions while maintaining high accuracy and long-term reliability.

Features:

  • 12” (Ø300 mm) circular chart recorder
  • Suitable for pressure and/or temperature measurement
  • Single, double, or triple pen versions available
  • Compact and portable design
  • Transportable case; suitable for flush or wall mounting
  • IP65 protection for industrial environments
  • 316L stainless steel enclosure for corrosion resistance
  • Zero-adjustable pointer for precise calibration
  • Supplied with 100 standard charts per recorder
  • Includes standard felt-tip pen and extra refills

Type

Pressure and/or Temperature Chart Recorder

Series

SICRB-12

Chart Size

Ø300 mm (12") circular chart

Case Dimensions

463 × 335 mm

Case Style

Transportable

Mounting

Portable, flush or wall mounted

Case Material

AISI 316L Stainless Steel

Window Material

Plexiglass

Protection Class

IP65

Accuracy

Class 1.0%

Pressure Range

Refer to Appendix A

Temperature Range

Refer to Appendix A

Clock Type

Refer to Appendix A

Recording Pens

Single / Double / Triple

Capillary Length

1,000 mm

Stem Diameter

Ø12 mm

Stem Length

100 mm

Stem Material

Stainless Steel 321

Armour Material

Stainless Steel 304

Connection Size

9/16" UNF × 18 HP Female (1/4" HPF)

Connection Location

Lower back connection

Wetted Parts

Stainless Steel 316

Charts Supplied

100 charts per recorder

Weight

10.6 kg (23.4 lbs)

Data-Sheet : Download

1. What does the SICRB-12 Chart Recorder measure?

The SICRB-12 measures pressure, temperature, or both simultaneously, depending on the selected configuration.

2. What chart size does this recorder use?

It uses a 12-inch (Ø300 mm) circular chart, specifically designed for the SICRB-12 series.

3. How many recording pens are available?

The recorder is available in single, double, or triple pen versions, allowing multiple parameters to be recorded at the same time.

4. What power options are available for the recorder?

The SICRB-12 can be supplied with mains-powered, Swiss-made battery-operated, or mechanical spring-wound clock mechanisms.

5. Is the chart recorder suitable for harsh environments?

Yes. It features an IP65-rated enclosure made from 316L stainless steel, providing excellent protection against dust, water, and corrosion.

6. What accessories are included with the recorder?

Each recorder is supplied with 100 standard charts, a felt-tip pen, and extra pen refills as standard.
