Digital Insulation Resistance Tester

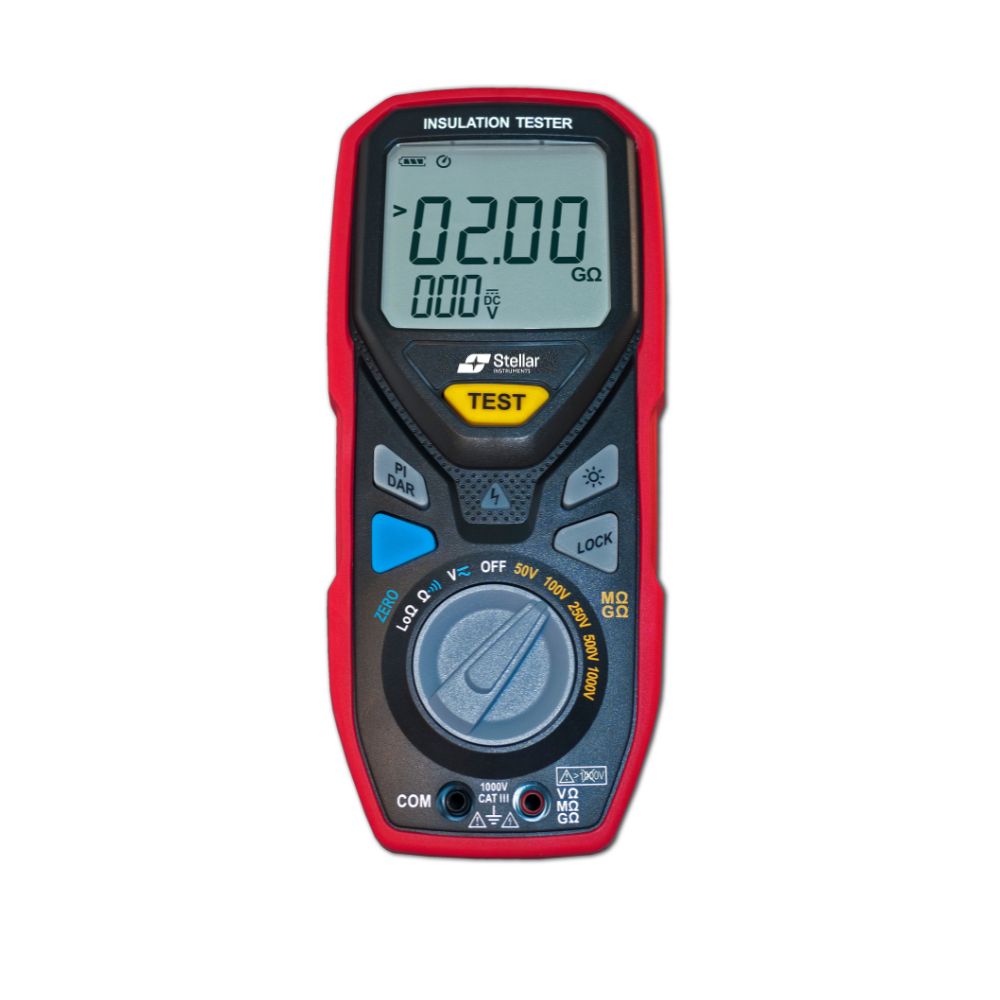

1kV Digital Insulation Resistance Tester IRT1K

SKU : SIIRT1K
MAKE : STELLAR INSTRUMENT
MODEL : IRT1K
WARRANTY : 1 Year
Stellar Instruments
AED 840.00 - AED 840.00
AED 840.00
AED 840.00 - AED 840.00
AED 840.00
(Including VAT)

1kV Digital Insulation Resistance Tester IRT1K

The Stellar IRT1K is a compact digital insulation resistance tester designed for electrical testing, preventive maintenance, and troubleshooting applications. It supports multiple insulation test voltages from 50V to 1000V and measures insulation resistance up to 20GΩ, making it suitable for checking cables, motors, transformers, panels, switchgear, and electrical installations.

With additional functions such as AC/DC voltage measurement, resistance measurement, continuity testing, live circuit detection, low resistance / LoΩ testing, and auto power-off, the IRT1K is a practical tool for electricians, maintenance engineers, and industrial service teams.

Features:

  • Insulation resistance measurement up to 20GΩ
  • Selectable test voltages: 50V, 100V, 250V, 500V, and 1000V
  • Short-circuit test current >1mA for reliable insulation testing
  • Live circuit detection for user safety
  • Low resistance / LoΩ test function
  • AC/DC voltage measurement up to 1000V
  • Continuity test function with buzzer indication
  • Auto power-off function to save battery life
  • Safety rating: EN61010 600V CAT IV / 1000V CAT III
  • Compact and rugged design for field use
  • Suitable for testing cables, motors, transformers, panels, and electrical equipment

Insulation Test Voltage

50V, 100V, 250V, 500V, 1000V

Insulation Resistance Range

Up to 20GΩ

AC/DC Voltage

60V / 600V / 1000V

Resistance Range

600Ω / 6kΩ / 60kΩ / 600kΩ

Continuity Test

600Ω, resolution 0.1Ω

Low Resistance / LoΩ

6Ω / 60Ω

Protection

1000Vrms

Auto Power Off

Approx. 35 minutes

Safety Rating

EN61010 600V CAT IV / 1000V CAT III

EMC Standard

EN61326-1

Battery

1.5V AA battery x 4

Dimensions

206 x 90 x 51 mm

Weight

515g

IRT1K-Datasheet : Download

1. What is the Stellar IRT1K used for?

The Stellar IRT1K is used to test insulation resistance in cables, motors, panels, transformers, switchgear, and electrical installations.

2. What insulation test voltages are available?

It supports selectable test voltages of 50V, 100V, 250V, 500V, and 1000V.

3. What is the maximum insulation resistance range?

The IRT1K can measure insulation resistance up to 20GΩ.

4. Does the tester have live circuit detection?

Yes, it has live circuit detection to help protect the user before insulation testing.

5. Can it measure AC/DC voltage?

Yes, the IRT1K can measure AC/DC voltage up to 1000V.

6. What is the safety rating of the Stellar IRT1K?

The tester is rated EN61010 600V CAT IV / 1000V CAT III, making it suitable for professional electrical field applications.

1kV Digital Insulation Resistance Tester IRT1K

The Stellar IRT1K is a compact digital insulation resistance tester designed for electrical testing, preventive maintenance, and troubleshooting applications. It supports multiple insulation test voltages from 50V to 1000V and measures insulation resistance up to 20GΩ, making it suitable for checking cables, motors, transformers, panels, switchgear, and electrical installations.

With additional functions such as AC/DC voltage measurement, resistance measurement, continuity testing, live circuit detection, low resistance / LoΩ testing, and auto power-off, the IRT1K is a practical tool for electricians, maintenance engineers, and industrial service teams.

Features:

  • Insulation resistance measurement up to 20GΩ
  • Selectable test voltages: 50V, 100V, 250V, 500V, and 1000V
  • Short-circuit test current >1mA for reliable insulation testing
  • Live circuit detection for user safety
  • Low resistance / LoΩ test function
  • AC/DC voltage measurement up to 1000V
  • Continuity test function with buzzer indication
  • Auto power-off function to save battery life
  • Safety rating: EN61010 600V CAT IV / 1000V CAT III
  • Compact and rugged design for field use
  • Suitable for testing cables, motors, transformers, panels, and electrical equipment

Insulation Test Voltage

50V, 100V, 250V, 500V, 1000V

Insulation Resistance Range

Up to 20GΩ

AC/DC Voltage

60V / 600V / 1000V

Resistance Range

600Ω / 6kΩ / 60kΩ / 600kΩ

Continuity Test

600Ω, resolution 0.1Ω

Low Resistance / LoΩ

6Ω / 60Ω

Protection

1000Vrms

Auto Power Off

Approx. 35 minutes

Safety Rating

EN61010 600V CAT IV / 1000V CAT III

EMC Standard

EN61326-1

Battery

1.5V AA battery x 4

Dimensions

206 x 90 x 51 mm

Weight

515g

IRT1K-Datasheet : Download

1. What is the Stellar IRT1K used for?

The Stellar IRT1K is used to test insulation resistance in cables, motors, panels, transformers, switchgear, and electrical installations.

2. What insulation test voltages are available?

It supports selectable test voltages of 50V, 100V, 250V, 500V, and 1000V.

3. What is the maximum insulation resistance range?

The IRT1K can measure insulation resistance up to 20GΩ.

4. Does the tester have live circuit detection?

Yes, it has live circuit detection to help protect the user before insulation testing.

5. Can it measure AC/DC voltage?

Yes, the IRT1K can measure AC/DC voltage up to 1000V.

6. What is the safety rating of the Stellar IRT1K?

The tester is rated EN61010 600V CAT IV / 1000V CAT III, making it suitable for professional electrical field applications.
