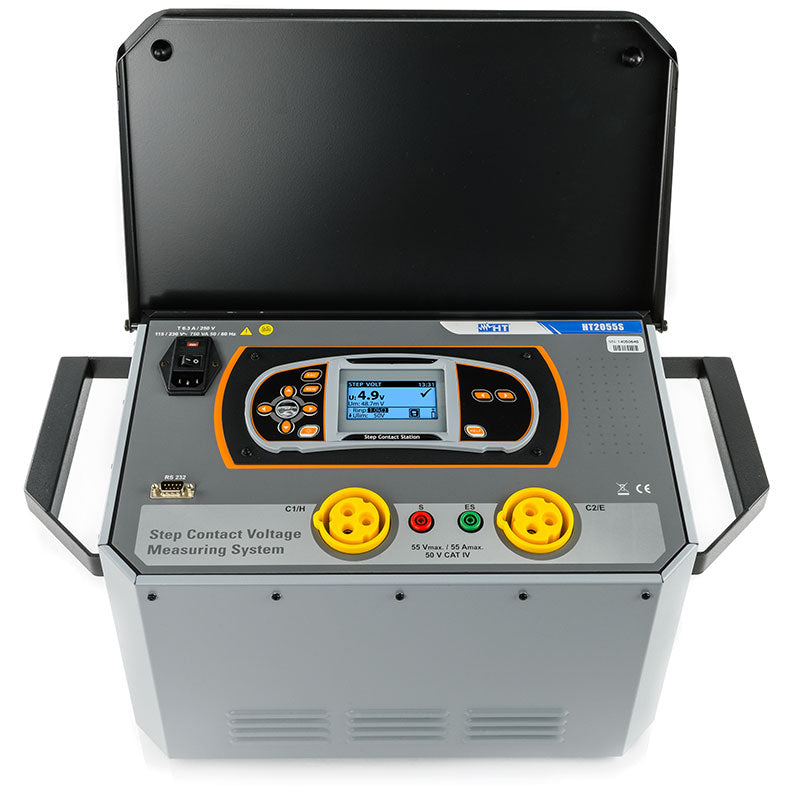

50A Step and contact meter HT2055

SKU : HN002055
MAKE : HT-INSTRUMENTS
MODEL : HT2055

50A Step and contact meter HT2055

HT2055 consists in a power unit and a voltmetric unit, necessary for carrying out step and contact voltage measurements in industrial electric installations (TN systems, transformer cabinets) with a rated test current up to 50A.The two units, synchronized in time and current are capable of providing the correct value of step and contact voltages consistently with the real current values measured by the power unit, also taking into consideration the disturbance effects found on the measured circuit. It is also capable of measuring earth resistance and ground resistivity by the classical voltammetric method. These measurements can be saved in the internal memory of the voltmetric unit and downloaded onto the PC through the provided Windows software.

Step and contact meter
TRMS

Yes

Measuring range

200Ω

Earth resistance by 2- and 3-wire method

Yes

Ground resistivity by 4-wire method

Yes

Compensation of disturbance voltages

Yes

Compensation of test cables

Yes

Measurement of step/contact voltage

Yes

Protection category

CAT IV 50V

Detection of disturbance currents on measurement

Yes

LCD display

Yes

Backlight

Yes

Auto Power OFF

Yes

Internal memory for measured data saving

Yes

Optical/USB serial port for PC connection

RS-232/USB

Size (LxWx H) (mm)

230x115x103

Weight in grams (batteries included)

30800

Guidelines

CEI 64-8
CEI 64-8 612.6.2
CE MARK
DPR 462 del 22/10/2001
EMC 2014/30/EU
EMC: IEC/EN61326
IEC/EN61010-1
IEC/EN61557-1
IEC/EN61557-5
LVD 2014/35/EU
