8 Zone Marine Approved Conventional Fire Alarm Panel

SKU : MFP22108M
MAKE : MAVIGAURD
MODEL : ML-22108/M
AVAILABILITY : IN STOCK
Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 3,800.00
AED 3,800.00 - AED 3,800.00
Current price AED 3,800.00
(Including VAT)

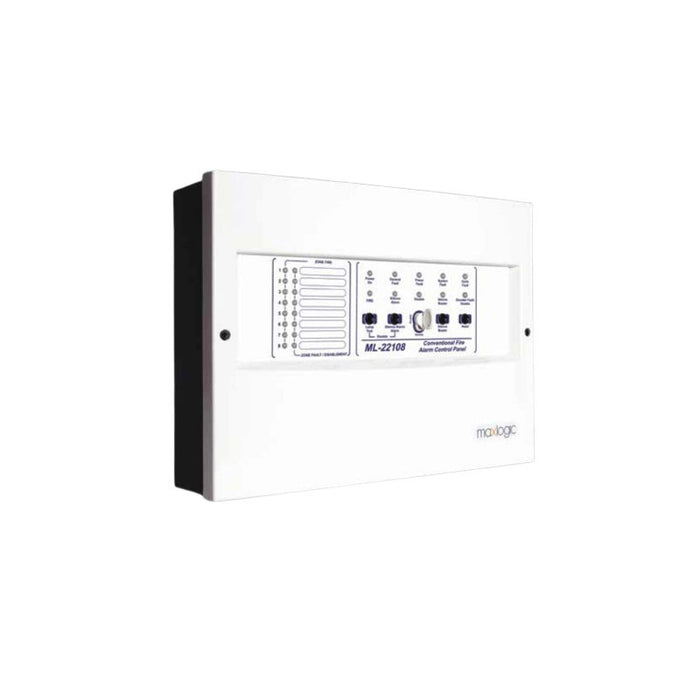

8 Zone Marine Approved Conventional Fire Alarm Panel

ML-221XX.M conventional fire alarm panels are designed for providing economic solutions for small, medium and big site applications.ML-221XX.M series conventional fire alam control panels contain both stylish exterior design and SMT (Surface Mount Technology) production techniques. 2, 4, 8, 16 zones are available max. 32 detector can be connected to each zone.Panel contain 2 sounder outputs. Zone and sounder lines are supervised. Panel provides protection against short circuit and open circuit conditions. Also, panel has 1 dry contact fire relay and 1 dry contact fault relay for sending output in case of fire. Determined fire zone or sounder outputs can be disabled and/or tested according to user. Various functions can be added by using optional modules.

Product features:

  •  Compatible with EN 54-2 and EN 54-4
  •  2, 4, 8, 16 zone options
  •  2, 4, 8, 16 zone models have TSE, LPCB and GOST certificate
  •  Panel provides to make network connection up to 32 panel with using MGRP-64.
  •  2 sounder outputs, fire alarm and fault relay
  •  Delay time can be assigned to zone and sounders
  •  Zones can be tested with single person via zone test feature
  •  Communication with PC option ( ‘reset’, ‘alarm’, ‘silence alarm’ etc. Commands can be sent to panel and zone can   be tested and disabled.)
  • Up to 1000 event-log can be saved.
8 Zone Marine Approved Conventional Fire Alarm Panel
Supply Voltage

230V AC 50 Hz (2A glass fuse protected)

Accumulator

2 x (12V 7Ah)

Zone Capacity

2, 4, 8, 16

Zone Output Voltage

24V DC

Zone end of line resistance

6K8

Sounder end of line resistance

10K

Standard Colour

Gray metal box, White front of panel

Weight

~ 4,4 kg
