AI 56 ACOUSTIC CAMERA
In stock

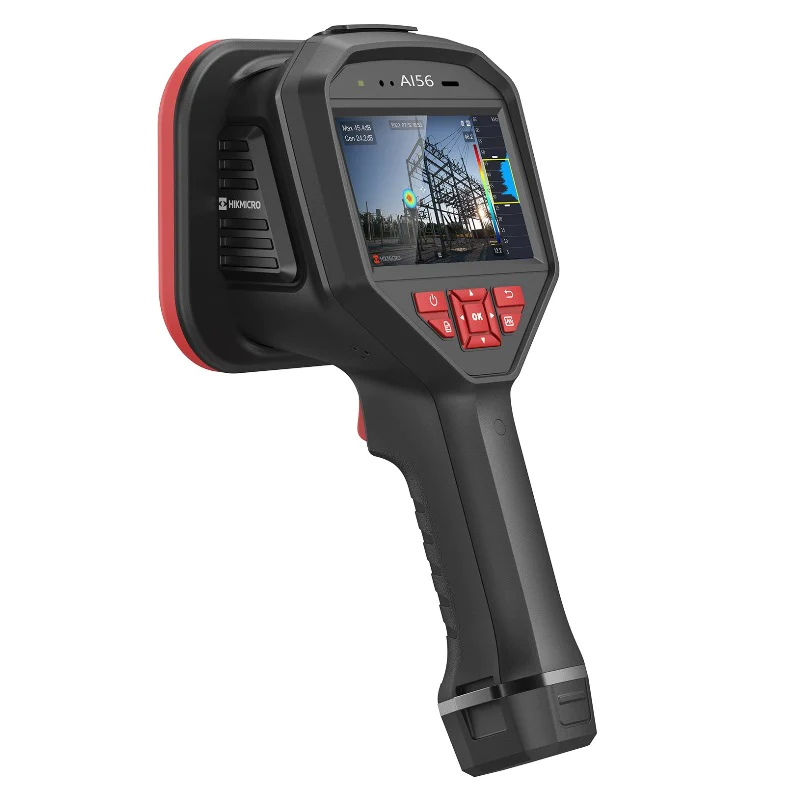

AI56 Acoustic imaging camera

SKU : HIK-AI56-AIC-64M-IP54
MAKE : HIKMICRO
MODEL : AI 56
WARRANTY : 2 Years
AVAILABILITY : IN STOCK
Hikmicro
AED 0.00 - AED 0.00
AED 0.00
AED 20,400.00
AED 20,400.00 - AED 20,400.00
AED 20,400.00
(Including VAT)

AI56 Acoustic imaging camera

The HIKMICRO AI56 Acoustic Imaging Camera is a rugged, handheld device designed for pinpointing sound sources like gas leaks or partial discharges in industrial environments. Featuring a 4.3″ touch screen that overlays live acoustic data atop a 5 MP visual feed, it uses an array of 64 low-noise MEMS microphones with adjustable bandwidth (2–96 kHz) for real-time detection up to ~100 m 

Features:

  • Detects gas leaks and partial discharges using acoustic imaging

  • 64 low-noise MEMS microphones with 2–96 kHz frequency range

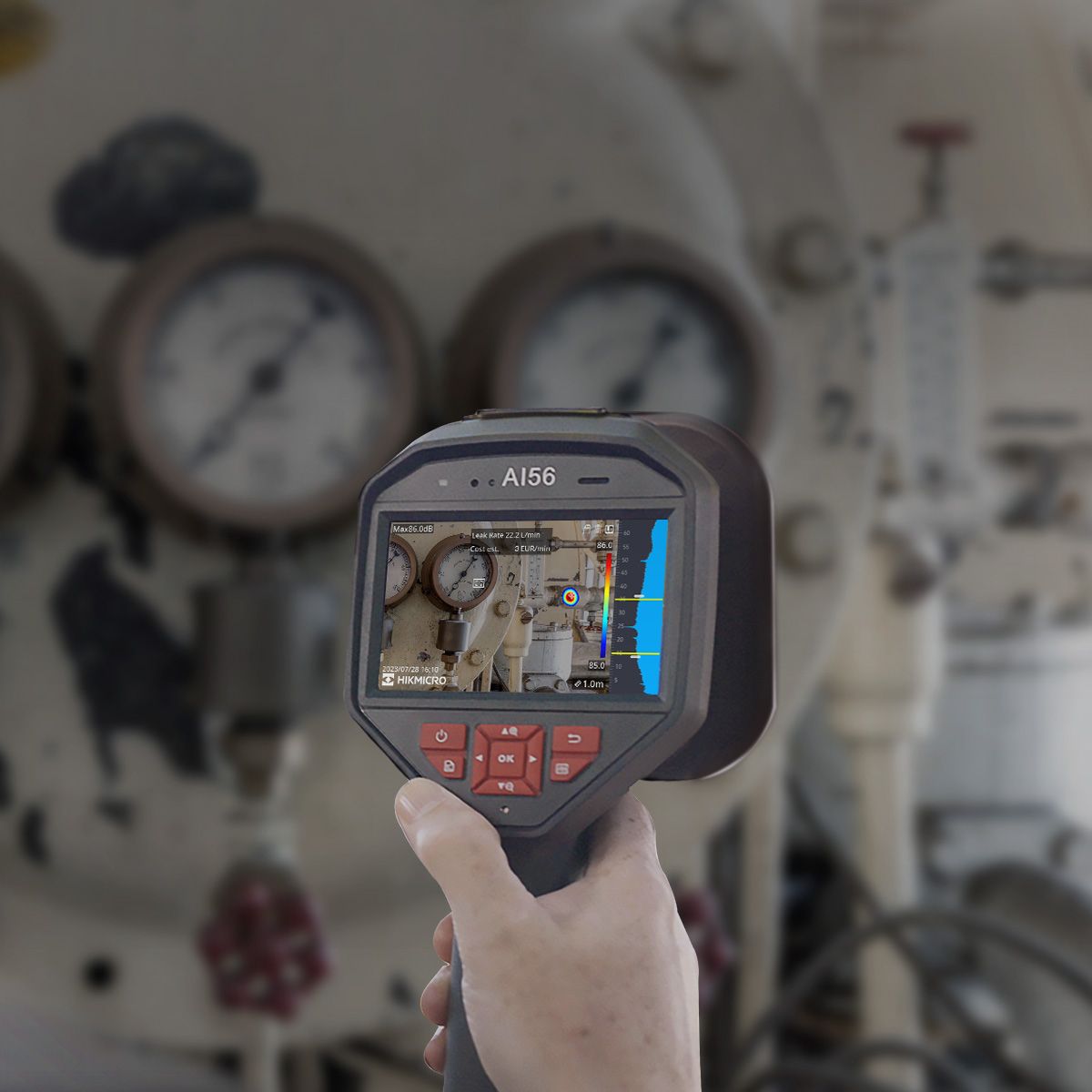

  • 4.3" touchscreen with real-time visual and acoustic overlay

  • Leak rate and cost estimation for maintenance planning

  • Stores up to 20,000 images or 60 hours of video

  • Wi-Fi, Bluetooth, and HDMI connectivity

  • Up to 10 hours battery life with swappable batteries

  • IP54 rated and 1.2 m drop-resistant for industrial use

Advanced Thermal Image Camera Hikmicro G41

Model



AI56

Number of Microphones



64

Bandwidth



0 kHz to 96 kHz (adjustable) MEMS sampling: 192 kHz

Detection Distance



0.3 m to 150 m

Camera Field of View



50.2° × 35.4°

Acoustic Image Resolution



800 × 480

Acoustic Image Palette



White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red

Leak Rate Sensitivity



>0.008 l/min @ 6 bar from 0.5 m >0.013 l/min @ 5 bar from 1 m

Sound Intensity Display



Peak Point

Acoustic Image Frame Rate



25 fps

Dynamic Range



Low Limit: < -15 dB High Limit: > 120 dB



  • printed quick start
  • calibration certificate
  • hard carrying case

  • charging base with adapter



Data-sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

1. What is the HIKMICRO AI56 used for?

The AI56 is used to detect and locate gas leaks and partial discharges in industrial environments using acoustic imaging.

2. What is the detection range of the AI56?

It operates across a wide frequency range of 2–96 kHz, suitable for detecting both low- and high-frequency sound sources.

3. How many microphones does it have?

The device features an array of 64 low-noise MEMS microphones for accurate and sensitive sound detection.

4. Can the AI56 estimate leak size or cost?

Yes it provides estimated leak rates and cost information to assist with maintenance planning.Y

5. What type of display does it have?

It includes a 4.3″ touchscreen with a 5 MP visual camera overlay for real-time acoustic visualization.

6. How is the data stored?

The camera can store up to 20,000 images or 60 hours of video on internal or external storage.

7. What connectivity options are available?

The AI56 supports Wi-Fi, Bluetooth, and HDMI for easy data transfer and live viewing.

AI56 Acoustic imaging camera

The HIKMICRO AI56 Acoustic Imaging Camera is a rugged, handheld device designed for pinpointing sound sources like gas leaks or partial discharges in industrial environments. Featuring a 4.3″ touch screen that overlays live acoustic data atop a 5 MP visual feed, it uses an array of 64 low-noise MEMS microphones with adjustable bandwidth (2–96 kHz) for real-time detection up to ~100 m 

Features:

  • Detects gas leaks and partial discharges using acoustic imaging

  • 64 low-noise MEMS microphones with 2–96 kHz frequency range

  • 4.3" touchscreen with real-time visual and acoustic overlay

  • Leak rate and cost estimation for maintenance planning

  • Stores up to 20,000 images or 60 hours of video

  • Wi-Fi, Bluetooth, and HDMI connectivity

  • Up to 10 hours battery life with swappable batteries

  • IP54 rated and 1.2 m drop-resistant for industrial use

Advanced Thermal Image Camera Hikmicro G41

Model



AI56

Number of Microphones



64

Bandwidth



0 kHz to 96 kHz (adjustable) MEMS sampling: 192 kHz

Detection Distance



0.3 m to 150 m

Camera Field of View



50.2° × 35.4°

Acoustic Image Resolution



800 × 480

Acoustic Image Palette



White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red

Leak Rate Sensitivity



>0.008 l/min @ 6 bar from 0.5 m >0.013 l/min @ 5 bar from 1 m

Sound Intensity Display



Peak Point

Acoustic Image Frame Rate



25 fps

Dynamic Range



Low Limit: < -15 dB High Limit: > 120 dB



  • printed quick start
  • calibration certificate
  • hard carrying case

  • charging base with adapter



Data-sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

1. What is the HIKMICRO AI56 used for?

The AI56 is used to detect and locate gas leaks and partial discharges in industrial environments using acoustic imaging.

2. What is the detection range of the AI56?

It operates across a wide frequency range of 2–96 kHz, suitable for detecting both low- and high-frequency sound sources.

3. How many microphones does it have?

The device features an array of 64 low-noise MEMS microphones for accurate and sensitive sound detection.

4. Can the AI56 estimate leak size or cost?

Yes it provides estimated leak rates and cost information to assist with maintenance planning.Y

5. What type of display does it have?

It includes a 4.3″ touchscreen with a 5 MP visual camera overlay for real-time acoustic visualization.

6. How is the data stored?

The camera can store up to 20,000 images or 60 hours of video on internal or external storage.

7. What connectivity options are available?

The AI56 supports Wi-Fi, Bluetooth, and HDMI for easy data transfer and live viewing.
