IM_product_CL20_RGB_300dpi

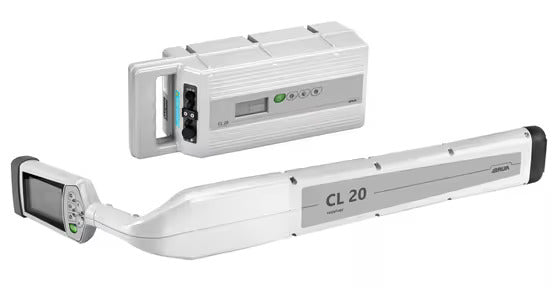

BAUR -CL 20 cable locator

SKU : CL20-CBLLOC-10W-001
MAKE : BAUR
MODEL : BAUR -CL 20
WARRANTY : 1 Year
Baur
AED 0.00 - AED 0.00
AED 0.00
AED 28,800.00
AED 28,800.00 - AED 28,800.00
AED 28,800.00
(Including VAT)

BAUR -CL 20 cable locator

The CL 20 Cable Locator is a versatile tool for locating underground cable routes and metal pipes, including their depth and path. It features multiple active and passive frequencies for precise tracing in various conditions, with or without a transmitter. The high-performance 10 W transmitter supports galvanic and inductive coupling, and dual-frequency operation. Optional accessories like the exploring coil and STAFF A-Frame extend its capabilities to cable identification and sheath fault location. With multiple location methods, real-time depth and current measurement, and a user-friendly design, the CL 20 ensures efficient and accurate cable tracing

FEATURES

  • Multi-Frequency Operation

  • High-Performance Transmitter

  • Various Location Methods

  • Advanced Display Functions

  • Passive Location Capability

  • Expandable Functionality

  • User-Friendly Design

Operating Frequencies



Active: 200 Hz–131 kHz
Passive: 50–540 Hz, RF, CP

Location Methods



Peak, Pinpoint, Minimum, Left/Right, Combinations

Depth Measurement



0.02 – 15 m

Receiver Battery



10.8 V, 5.2 Ah Li-ion, ~30 h runtime

Transmitter Battery



10.8 V, 7.8 Ah Li-ion, 8–20 h runtime

Transmitter Output



0.2 – 10 W (low/med freq)
0.2 – 1 W (high freq)

Protection Rating



IP65

Operating Temperature



-20°C to +55°C

Certifications



CE (2014/35/EU, 2014/30/EU)

Data sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

1) What does the CL 20 Cable Locator do?

The CL 20 is used to locate the route and depth of underground cables and metal pipes. It offers both active and passive tracing capabilities.

2) Can the CL 20 locate live cables without a transmitter?

Yes, the CL 20 supports passive frequency detection, allowing it to trace live cables based on naturally occurring electromagnetic fields

Without transmitter

3) What frequencies does the CL 20 support?

The device supports multiple active and passive frequencies and can operate with two frequencies simultaneously to adapt to complex location conditions.

4) What is the power output of the transmitter?

The CL 20 features a powerful 10 W transmitter for reliable signal coupling via galvanic or inductive methods.

5) Can the CL 20 be used for fault location?

Yes, with the optional STAFF A-Frame, the CL 20 can pinpoint cable sheath faults and faults with earth contact.

6) Does the CL 20 support depth measurement?

Yes, with the optional STAFF A-Frame, the CL 20 can pinpoint cable sheath faults and faults with earth contact.

7) What optional accessories are available for the CL 20?

Optional accessories include the STAFF A-Frame for fault location and an exploring coil for precise cable identification.

8) Is the CL 20 easy to operate in the field?

Absolutely. It features an ergonomic design, high-contrast LCD with backlight, acoustic feedback, and a durable lithium-ion battery for

extended use

BAUR -CL 20 cable locator

The CL 20 Cable Locator is a versatile tool for locating underground cable routes and metal pipes, including their depth and path. It features multiple active and passive frequencies for precise tracing in various conditions, with or without a transmitter. The high-performance 10 W transmitter supports galvanic and inductive coupling, and dual-frequency operation. Optional accessories like the exploring coil and STAFF A-Frame extend its capabilities to cable identification and sheath fault location. With multiple location methods, real-time depth and current measurement, and a user-friendly design, the CL 20 ensures efficient and accurate cable tracing

FEATURES

  • Multi-Frequency Operation

  • High-Performance Transmitter

  • Various Location Methods

  • Advanced Display Functions

  • Passive Location Capability

  • Expandable Functionality

  • User-Friendly Design

Operating Frequencies



Active: 200 Hz–131 kHz
Passive: 50–540 Hz, RF, CP

Location Methods



Peak, Pinpoint, Minimum, Left/Right, Combinations

Depth Measurement



0.02 – 15 m

Receiver Battery



10.8 V, 5.2 Ah Li-ion, ~30 h runtime

Transmitter Battery



10.8 V, 7.8 Ah Li-ion, 8–20 h runtime

Transmitter Output



0.2 – 10 W (low/med freq)
0.2 – 1 W (high freq)

Protection Rating



IP65

Operating Temperature



-20°C to +55°C

Certifications



CE (2014/35/EU, 2014/30/EU)

Data sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

1) What does the CL 20 Cable Locator do?

The CL 20 is used to locate the route and depth of underground cables and metal pipes. It offers both active and passive tracing capabilities.

2) Can the CL 20 locate live cables without a transmitter?

Yes, the CL 20 supports passive frequency detection, allowing it to trace live cables based on naturally occurring electromagnetic fields

Without transmitter

3) What frequencies does the CL 20 support?

The device supports multiple active and passive frequencies and can operate with two frequencies simultaneously to adapt to complex location conditions.

4) What is the power output of the transmitter?

The CL 20 features a powerful 10 W transmitter for reliable signal coupling via galvanic or inductive methods.

5) Can the CL 20 be used for fault location?

Yes, with the optional STAFF A-Frame, the CL 20 can pinpoint cable sheath faults and faults with earth contact.

6) Does the CL 20 support depth measurement?

Yes, with the optional STAFF A-Frame, the CL 20 can pinpoint cable sheath faults and faults with earth contact.

7) What optional accessories are available for the CL 20?

Optional accessories include the STAFF A-Frame for fault location and an exploring coil for precise cable identification.

8) Is the CL 20 easy to operate in the field?

Absolutely. It features an ergonomic design, high-contrast LCD with backlight, acoustic feedback, and a durable lithium-ion battery for

extended use
