BAUR oil breakdown voltage tester DPA 75 C

SKU : BRD-OBT-DPA75C-AC
MAKE : BAUR
MODEL : DPA 75 C
WARRANTY : 1 Year
Baur
AED 0.00 - AED 0.00
AED 0.00
AED 56,000.00
AED 56,000.00 - AED 56,000.00
AED 56,000.00
(Including VAT)

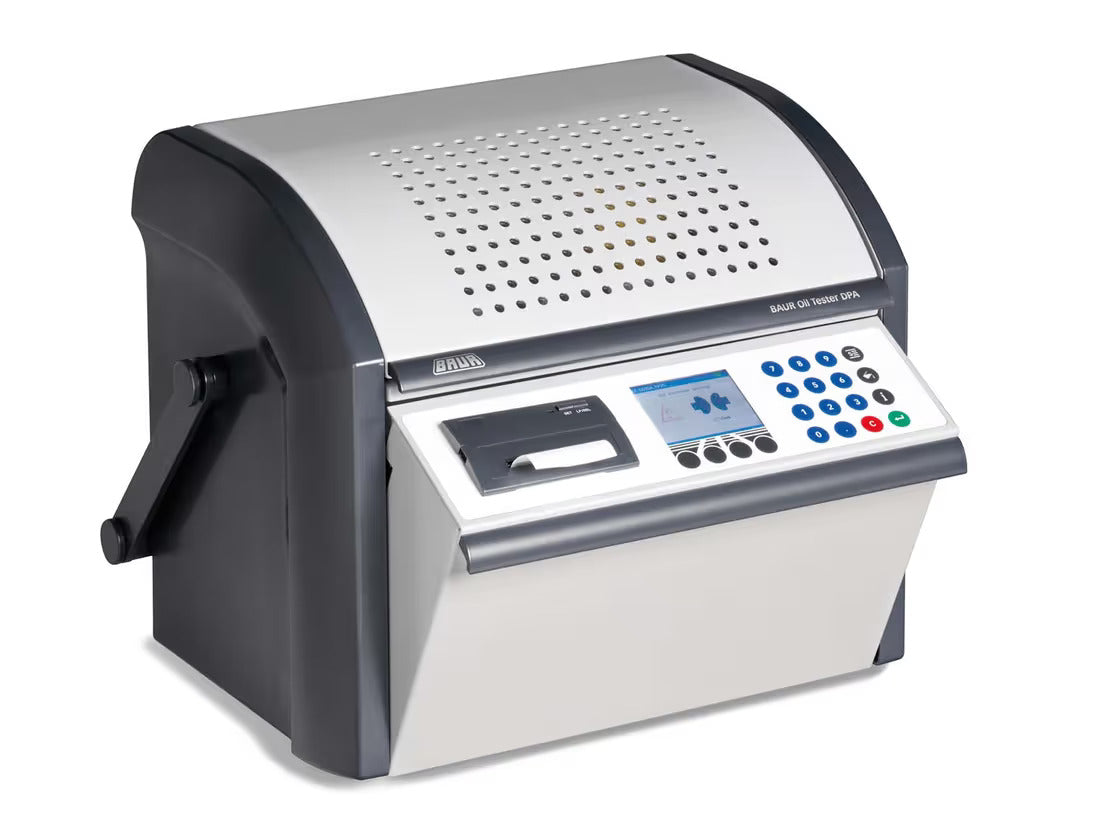

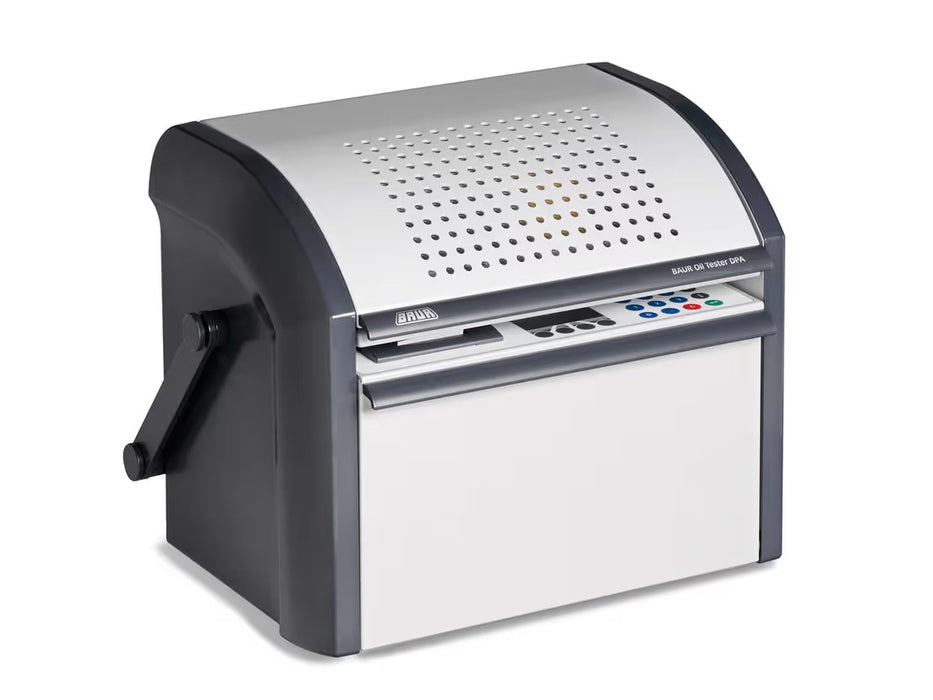

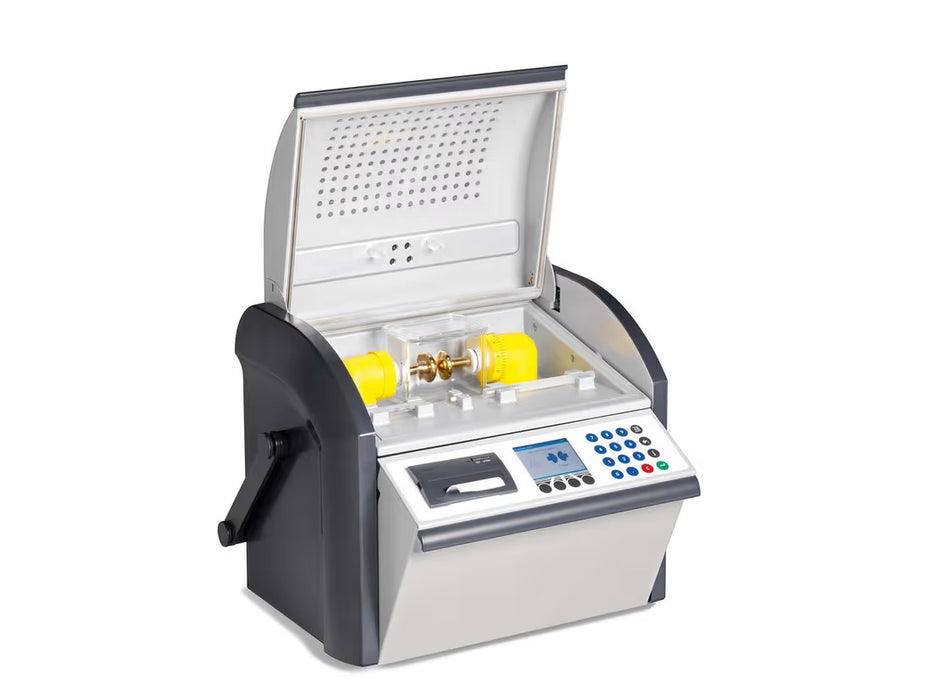

BAUR oil breakdown voltage tester DPA 75 C

BAUR DPA 75 C Oil Breakdown Voltage Tester: a fully automatic, portable device designed to assess the electrical breakdown strength of insulating liquids such as mineral, silicone, and ester oils. Capable of delivering test voltages up to 75 kVrms, it ensures reliable and reproducible measurements with a rapid switch-off time of less than 10 µs. The tester supports 19 international and national test standards, offers customizable test sequences, and features an integrated temperature sensor for precise assessments. Its robust design is suitable for both on-site and laboratory use, making it an essential tool for maintaining the integrity of electrical insulation systems.

Features

  • High voltage testing
  • Fast switch-off
  • Real Breakdown Monitoring (RBM)
  • Pre-programmed & customizable tests
  • Temperature monitoring
  • Adjustable electrode gap
  • Automatic self-test
  • Safety & EMC protection
  • User-friendly interface
  • Portable power options
  • Data export
  • Rugged design

Voltage Start (kV)



Starting test voltage (e.g., 0 kV)

Voltage End (kV)\



Target voltage, up to 75 kVrms

Voltage Slew Rate (kV/s)



Adjustable between 0.5–10 kV/s

Voltage Step (kV)



Increment between voltage levels (e.g., 1 kV, 5 kV)

Dwell Time (s)



Duration to hold each voltage step

Repetitions



Number of cycles at each step or voltage level

Oil Temperature (°C)



Automatically recorded during the test (range: 0–99 °C, resolution 1 °C)

Standard/Sequence Name



Assign a standard (e.g., IEC, ASTM) or custom name to each test sequence

Data sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

1. What test voltage range does the DPA 75 C support?

It delivers test voltages from 0 up to 75 kVrms, ideal for assessing dielectric strength in various insulating fluids.

2. How fast is the shutdown time after breakdown?

It features an ultra‑fast switch-off time of less than 10 µs, ensuring accurate, reproducible results and minimizing oil contamination.

3. Which oil types can it test?

It can test mineral oils, silicone oils, and ester (natural) oils, covering standard insulating fluids used in transformers and switchgear.

4. Does it comply with test standards?

Yes—fully automatic sequences are preset for 19 international and national standards (e.g., IEC 60156, ASTM D1816/D877, BS EN 60156) and you can also define up to 10 custom test sequences.

5. Can I use it in the field?

Absolutely—it’s built for portable, on-site use with a compact rugged housing and offers optional battery power for autonomy during inspections.

6. What features support lab use?

Equipped with an integrated temperature sensor, LCD display, plain-paper printer, USB export, and optional data management software (ITS Lite), it’s optimized for laboratory workflows.

7. Is the instrument ready for continuous operations?

Yes—the device is designed for hundreds of thousands of oil sample tests, backed by self-tests, sturdy construction, and high operational reliability.

8. What kind of power options are available?

Operates on standard 90–264 V AC (50/60 Hz) or DC 12 V, with an option for internal 2 × 6 V / 6.5 Ah lead‑acid battery (approx. 8 hours runtime).

9. How accurate and precise are the measurements?

Voltage output accuracy is ±1 kV with a resolution of 0.1 kV, and temperature is recorded from 0–99 °C with 1 °C resolution.

10. How does it detect breakdown events?

It uses Real Breakdown Monitoring (RBM)—measuring directly on the high-voltage generator side plus permanent voltage slew monitoring—for reliable detection.
