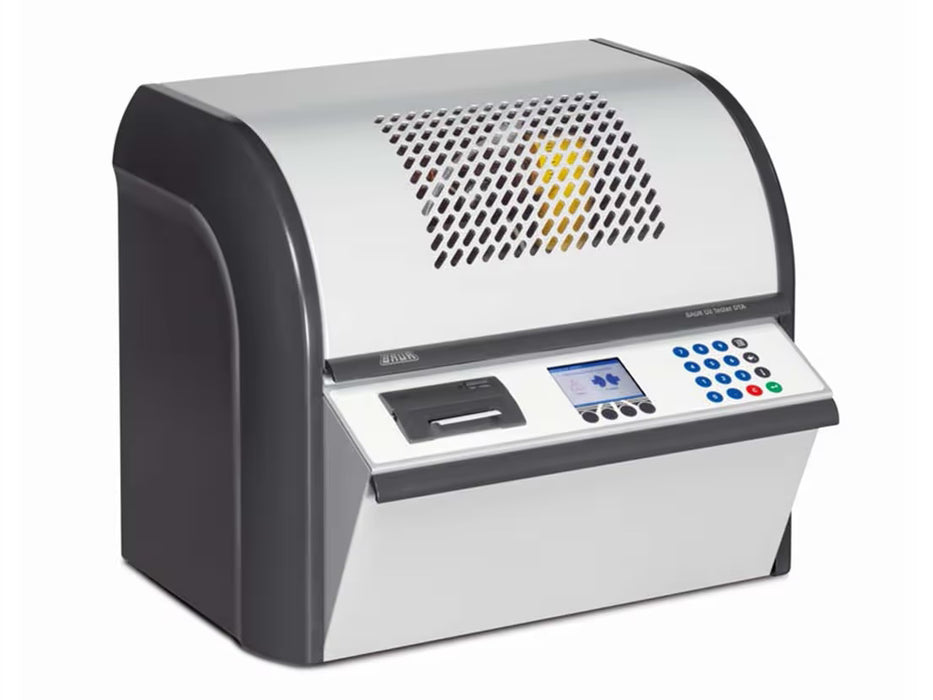

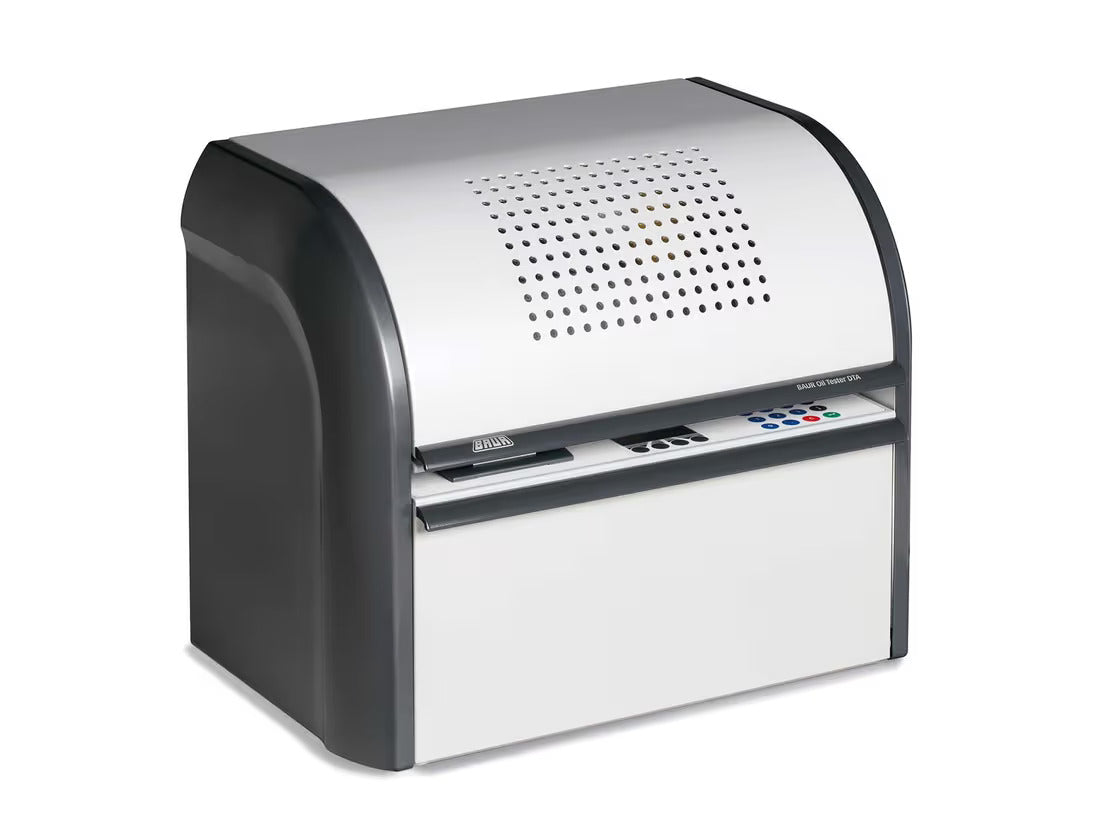

BAUR DTA 100C Oil Breakdown Voltage Tester

SKU : BAUR-DTA100C-OBVT-001
MAKE : BAUR
MODEL : BAUR-DTA100C
WARRANTY : 1 Year
Baur
AED 0.00 - AED 0.00
AED 0.00
AED 78,800.00
AED 78,800.00 - AED 78,800.00
AED 78,800.00
(Including VAT)

BAUR DTA 100C Oil Breakdown Voltage Tester

The BAUR DTA 100 C is a fully automatic oil breakdown voltage tester designed for precise, reliable, and reproducible testing of insulating liquids, including mineral, silicone, and ester oils. Compliant with international and national standards, it features test voltages up to 100 kVrms, rapid switch-off (<10 µs), RBM technology, and built-in temperature measurement. Ideal for continuous lab use, it supports 19 standard test sequences, user-defined tests, and automatic result logging via ITS Lite software. With a robust design, intuitive interface, and comprehensive safety features, it ensures efficient, high-accuracy operation in demanding lab environments

Features

  • Fully Automatic Testing

  • Wide Voltage Range

  • High Reproducibility

  • Direct HV Measurement

  • Built-in Temperature Sensor

  • Robust and Durable Design

  • Advanced Safety Features

  • User-Friendly Interface

Input Voltage



90 – 264 V (50/60 Hz)

Power Consumption



Max. 70 VA

Display



Colour LCD (approx. 3.5”), 320 x 240 pixels resolution

Data Interface



USB 2.0 (type B), BAUR Report Manager USB (type A)

Printer



Matrix printer, 24 characters, 57 mm plain paper

Ambient Temperature



Operational: -10°C to +55°C

Storage Temperature



-20°C to +60°C

Humidity



Non-condensing

Dimensions (W x H x D)



Closed: 545 x 458 x 380 mm
Open: 545 x 770 x 461 mm

Weight



Approx. 39 kg

Degree of Protection



IP32
Safety and EMCCE compliant (Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU)
Environmental testing: EN 60068-2-ff
Software LanguagesEnglish, Chinese (CN), Chinese (TW), Czech, Dutch, French, German, Italian, Korean, Polish, Portuguese, Russian, Spanish, Turkish
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

1. What is the BAUR DTA 100 C used for?

The BAUR DTA 100 C is used to fully automatically test the electrical breakdown strength of insulating liquids, such as mineral oil, silicone oil, and ester liquids, in compliance with international and national standards.

2. What types of insulating liquids can be tested with the BAUR DTA 100 C?

It is suitable for testing mineral oils, silicone oils, and ester-based insulating liquids.

3. What is the maximum test voltage the DTA 100 C can provide?

The tester can apply test voltages ranging from 0 to 100 kVrms.

4. How accurate are the test results from the DTA 100 C?

The DTA 100 C delivers highly accurate and reproducible results, thanks to its direct high-voltage measurement and RBM (Rate of Breakdown Monitoring) technology, along with a short switch-off time of less than 10 µs after breakdown.

5. Can it handle continuous lab operations?

Yes, it is specifically designed for daily, continuous use in laboratories, with a robust build that supports hundreds of thousands of test cycles.

6. What test standards does the BAUR DTA 100 C support?

It supports fully automatic test sequences for 19 international and national standards, as well as user-defined spot tests.

7. Does the device include temperature monitoring of the oil?

Yes, it includes a built-in sensor to measure the temperature of the insulating liquid during testing.

8. What safety features does it offer?

The tester includes a comprehensive safety system, including high-voltage shutdown via hood contacts and an EMC screen to protect nearby electronics.

9. Is the device user-friendly?

Yes, it features an ergonomic design with an oil-proof membrane keyboard, a clear LCD color display, and a user interface available in 14 languages. It also has an integrated printer for on-the-spot results.

10. How are test results saved or shared?

Measurement results are automatically recorded and can be exported in PDF or text format using the BAUR ITS Lite data management software, which supports multiple oil testers and custom report layouts.
