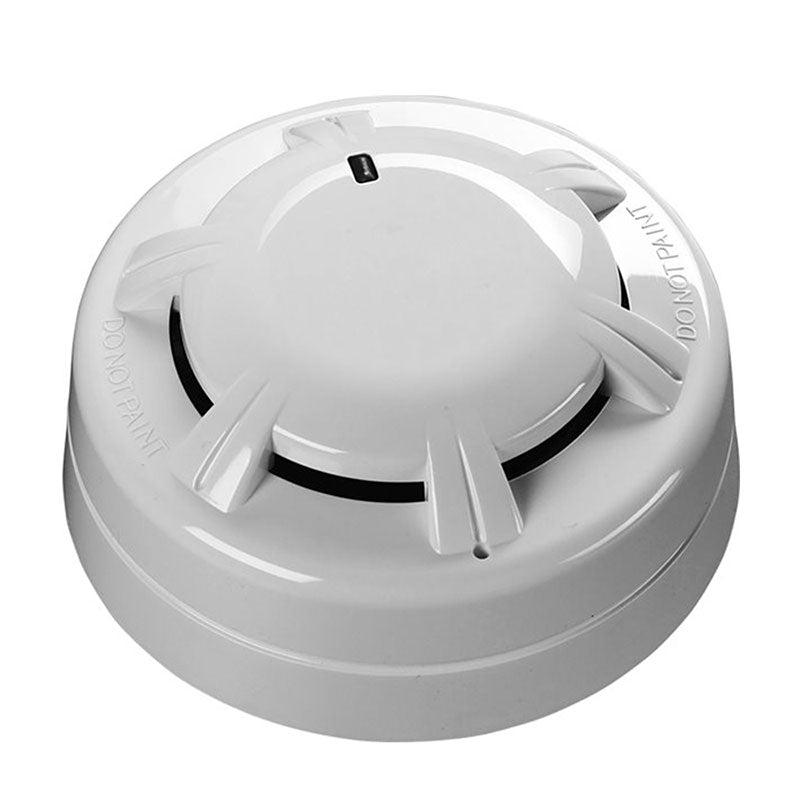

Conventional Heat Detector Mavigaurd ML-2130/M
ML-2130/M LLoyd Certificated conventional combined heat detectors have high sensitivity and stability through microprocessor control. Heat detector detects temperature change by temperature-sensitive thermistors. When the ambient temperature reaches 60°C or there is a temperature increase specified in EN 54-5 standard, this detected analog value is interpreted by the electronic circuits and the fire is detected. False alarms are prevented by advanced algorithm before the generated fire signal. Detectors are suitable for indoor use.
Supply Voltage | 10V – 30V DC |
Detection Source | Dual thermistor |
Quiescent Current (max.) | 80μA |
Alarm Current (max.) | 40mA |
Remote Indicator Output (max.) | 45 mA |
Remote Indicator | MG-4000 |
Weight | 145 gr |
Conventional Heat Detector Mavigaurd ML-2130/M
ML-2130/M LLoyd Certificated conventional combined heat detectors have high sensitivity and stability through microprocessor control. Heat detector detects temperature change by temperature-sensitive thermistors. When the ambient temperature reaches 60°C or there is a temperature increase specified in EN 54-5 standard, this detected analog value is interpreted by the electronic circuits and the fire is detected. False alarms are prevented by advanced algorithm before the generated fire signal. Detectors are suitable for indoor use.
Supply Voltage | 10V – 30V DC |
Detection Source | Dual thermistor |
Quiescent Current (max.) | 80μA |
Alarm Current (max.) | 40mA |
Remote Indicator Output (max.) | 45 mA |
Remote Indicator | MG-4000 |
Weight | 145 gr |
