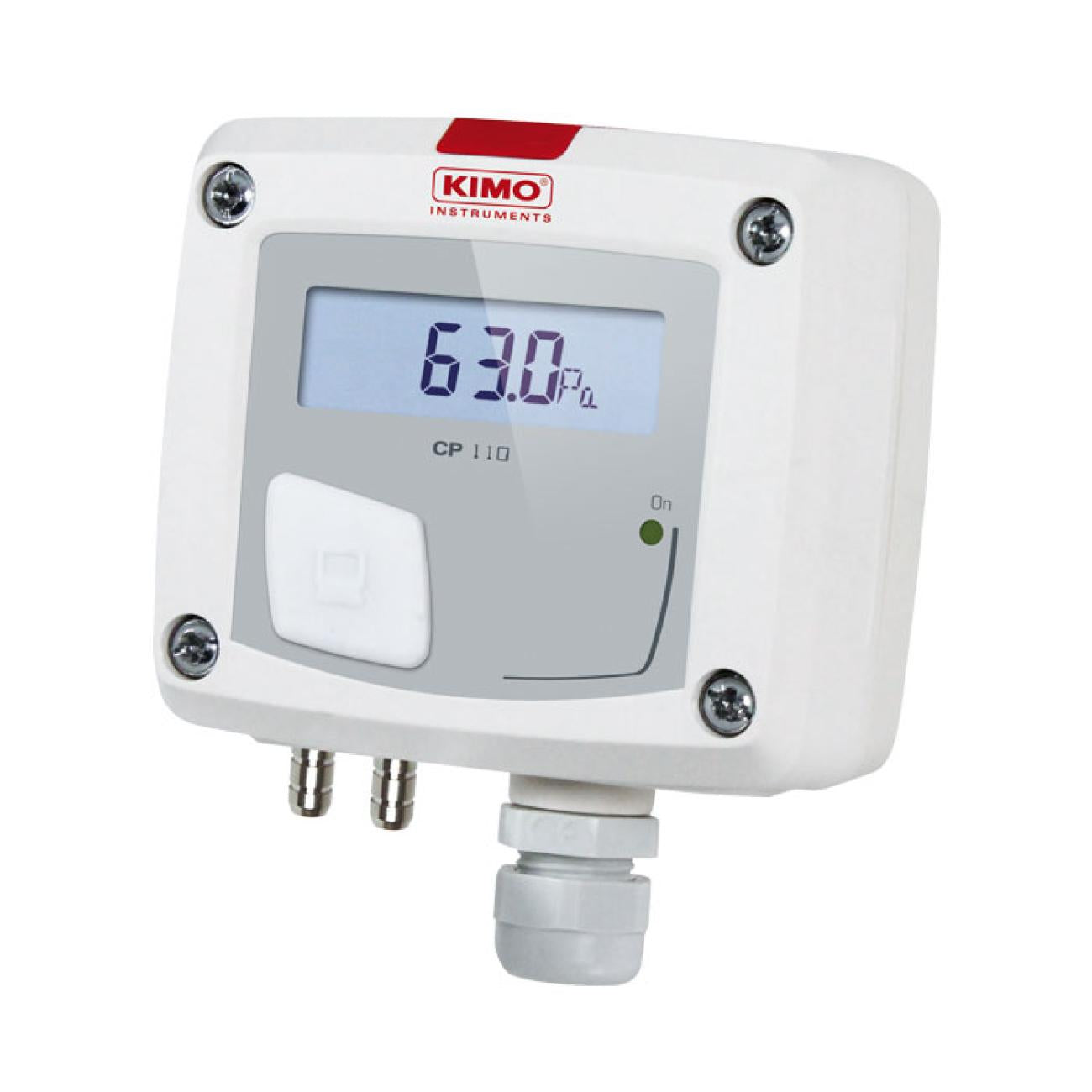

Differential Pressure Transmitter Kimo CP112 1000 Pa

SKU : CP 110
MAKE : SAUERMANN
MODEL : CP 110
WARRANTY : 1 Year

Differential Pressure Transmitter Kimo CP112 1000 Pa

The CP 110 Differential Pressure Transmitter is a highly reliable and precise instrument designed for monitoring and controlling differential pressure in HVAC systems, clean rooms, and industrial processes. This transmitter is equipped with a high-accuracy sensor capable of measuring differential pressure in various ranges, from -100/+100 Pa to -2000/+2000 mbar, making it suitable for a wide range of applications. The CP 110 is housed in a robust ABS V0 enclosure with an IP65 rating, ensuring durability in harsh environments. Available with or without an LCD display, the CP 110 offers versatile installation options, including wall mounting with a "¼ turn" system for easy setup.

Features

  • High-Accuracy Measurement: Offers precise measurement across different pressure ranges with an accuracy of up to ±1% of the reading.
  • Versatile Output Options: Provides 0-10 V or 4-20 mA active output with a 24 Vac/Vdc power supply, or 4-20 mA passive loop output with a 16-30 Vdc power supply.
  • Robust Construction: ABS V0 housing with an IP65 rating ensures protection against dust and water, making it suitable for challenging environments.
  • Easy Installation: Features a "¼ turn" mounting system with a wall-mount plate for quick and secure installation.
  • Configurable Ranges: Supports configurable intermediary pressure ranges to match specific application requirements.
  • LCD Display (Optional): Available with a 10-digit LCD display for real-time monitoring of pressure readings.
  • Auto-Calibration (CP 111 Model): The CP 111 variant includes a solenoid valve for auto-calibration, ensuring long-term stability and accuracy.
Measuring Ranges





CP 111

 -100/+100 Pa



CP 112

 -1000/+1000 Pa



CP 113

 -10,000/+10,000 Pa



CP 114

 -500/+500 mbar



CP 115

 -2000/+2000 mbar



Accuracy

 ±1% of reading ±2 Pa (CP 111), ±1.5% of reading ±3 mbar (CP 114, CP 115)



Resolution

1 Pa; 0.1 mmH2O





0.01 mbar





0.01 inWG





0.01 mmHG





0.1 daPa





0.001 kPa





0.01 hPa



Overpressure Tolerance

 Up to 4100 mbar (CP 115)



Power Supply

 24 Vac/Vdc ±10% (Active) or 16-30 Vdc (Passive)



Output

 0-10 V, 4-20 mA (active) or 4-20 mA (passive)



Protection Class

 IP65



Display

 Optional LCD, 10 digits, 50 x 17 mm



Operating Temperature

 0 to +50°C (14 to 122°F)



Housing Material

 ABS V0 as per UL94



Mounting

 Wall-mounted with "¼ turn" system



Weight

 143 g
