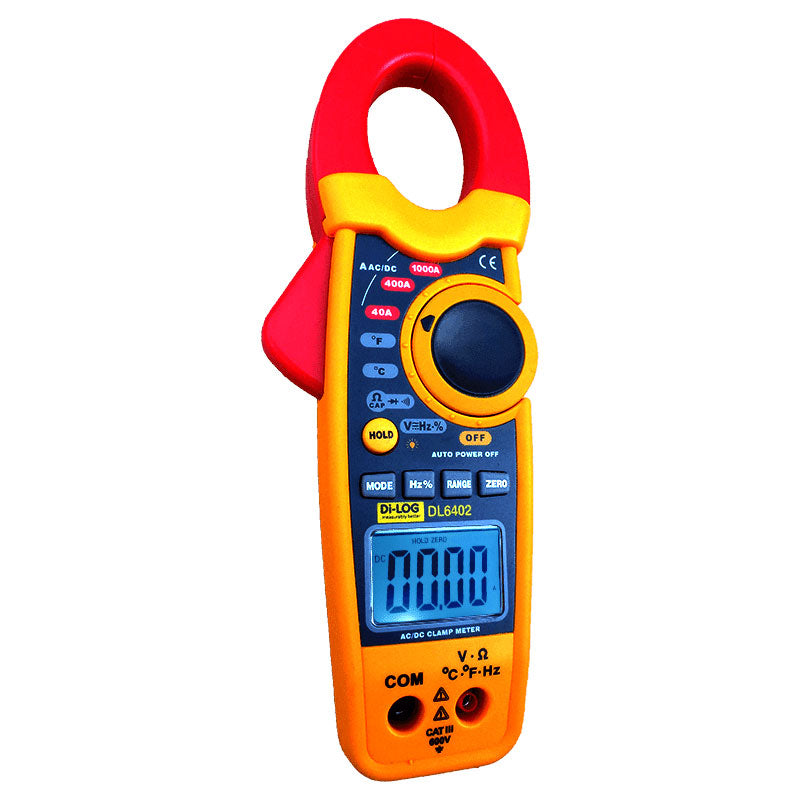

Digital Clamp Meter 1000 Amp AC/DC DL6402
With inclusion of DC current temperature & capacitance readings, this clamp meter is the ideal all purpose instrument. The slim design combined with the tear shaped jaw makes it an ideal unit for use in crowded panels and tight spaces. The data hold and peak capture function makes this a versatile and cost effective clamp meter.
Features:
- Audible Continuity
- Temperature thermocouple and K-Type adaptor supplied
- Frequency and capacitance
- 30 mm jaw opening
- 1000 AC/DC Current reading
- Electronic overload protection
- A large easy to see back lit display
- AC/DC voltage up to 600V
Weight | 10 kg |
---|---|
Dimensions | 5 × 5 × 5 cm |
Current |
AC Current 0.01A – 1000A 3% ± 5 dgts |
Voltage |
AC Voltage 0.1mV – 600V 1.8% ± 3 dgts |
Temperature |
-20 °C to 100.0 °C. |
Resistance |
Resistance 0.1Ω – 40MΩ 1.5% ± 2 dgts |
Capacitance |
40.00nF – 100.0uF 3% ± 5 dtgs |
Frequency |
0.001Hz – 100.0kHz 1.2% ± 2 dgts |
Digital Clamp Meter 1000 Amp AC/DC DL6402
With inclusion of DC current temperature & capacitance readings, this clamp meter is the ideal all purpose instrument. The slim design combined with the tear shaped jaw makes it an ideal unit for use in crowded panels and tight spaces. The data hold and peak capture function makes this a versatile and cost effective clamp meter.
Features:
- Audible Continuity
- Temperature thermocouple and K-Type adaptor supplied
- Frequency and capacitance
- 30 mm jaw opening
- 1000 AC/DC Current reading
- Electronic overload protection
- A large easy to see back lit display
- AC/DC voltage up to 600V
Weight | 10 kg |
---|---|
Dimensions | 5 × 5 × 5 cm |
Current |
AC Current 0.01A – 1000A 3% ± 5 dgts |
Voltage |
AC Voltage 0.1mV – 600V 1.8% ± 3 dgts |
Temperature |
-20 °C to 100.0 °C. |
Resistance |
Resistance 0.1Ω – 40MΩ 1.5% ± 2 dgts |
Capacitance |
40.00nF – 100.0uF 3% ± 5 dtgs |
Frequency |
0.001Hz – 100.0kHz 1.2% ± 2 dgts |
