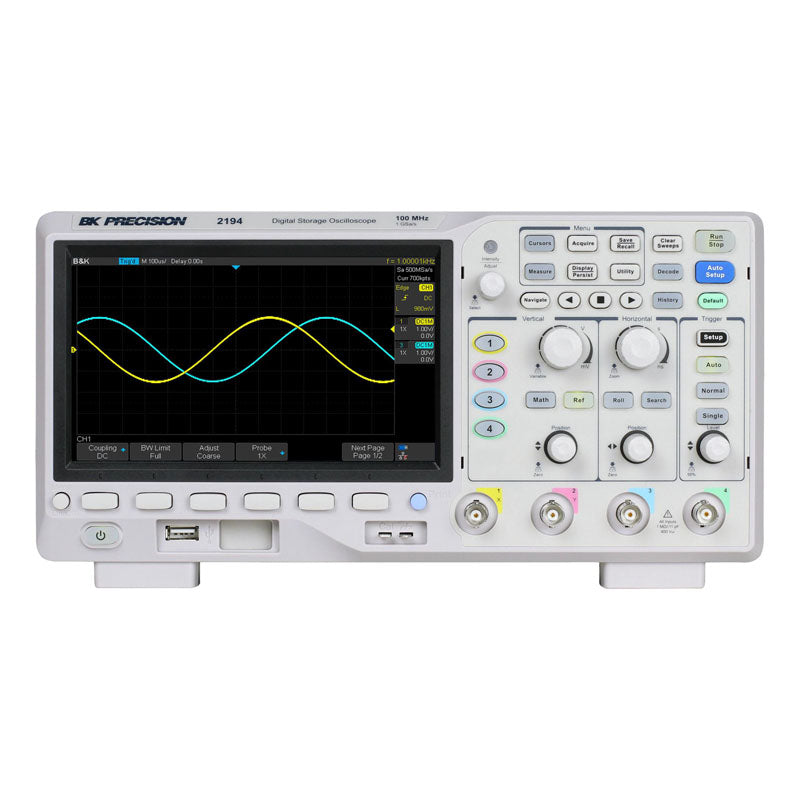

Digital Storage Oscilloscope 100 MHz - BK2194

SKU : DOBK2194
MAKE : BK PRECISION-SEFRAM
MODEL : BK2194
AVAILABILITY : IN STOCK
Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 3,750.00
AED 3,750.00 - AED 3,750.00
Current price AED 3,750.00
(Including VAT)

Digital Storage Oscilloscope 100 MHz - BK2194

The BK2194 combines performance and value all in one portable solution. This oscilloscope provides 100 MHz of bandwidth in a 4-channel configuration with a maximum sample rate of 1 GSa/s and a maximum memory depth of 14 Mpts. The BK2194 comes equipped with a 7″ widescreen display and extensive features including segmented acquisition, FTT and serial decoding for five different communication protocols. This model is the ideal solution for educational settings and hobbyists.

  •  100 MHz bandwidth
  •  4 analog channels
  •  Maximum sample rate of 1 GSa/s
  •  Maximum memory depth of 14 Mpts
  •  Waveform capture rates up to 100,000 (normal mode) and 400,000 (sequence mode) waveforms per second
  •  7″ TFT-LCD with 800 x 480 resolution
  •  Versatile triggering capabilities including pulse width, line-selectable video and serial
  •  Segmented acquisition stores up to 80,000 frames
  •  Serial decoding for I2C, SPI, UART, CAN and LIN protocols
  •  FFT feature and 7 additional math operations
  •  Masking tool with adjustable limits for pass/fail testing
  •  LAN and USBTMC compliant device ports for PC connectivity
  •  USB host port for saving and recalling waveform setups, data, and screenshots
Digital Storage Oscilloscope
Bandwidth (-3 dB)

100 MHz

Sampling Rate

Single Channel 1 GSa/s
Dual Channel 500 MSa/s
All Channel 250 MSa/s

Memory Depth

Single Channel 14 Mpts
Dual Channel 7 Mpts
All Channel 3.5 Mpts

Input

Input Channels :4 analog channels
Input Coupling : DC, AC, GND
Input Impedance : DC: 1 MΩ ± 2%, 11 pF ± 2 pF
Ch to Ch Isolation : DC – Max bandwidth > 40 dB
Probe Attenuation: 0.1x to 10000x

Triger Types

Edge, Slope, Pulse, Video, Window, Interval, Dropout, Runt, Pattern, and Serial
