Digital Stroboscope RPM Meter PCE-DSX 10

SKU : PCEDSX10
MAKE : PCE INSTRUMENTS
MODEL : PCE-DSX 10
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 1,300.00
AED 1,300.00 - AED 1,300.00
Current price AED 1,300.00
(Including VAT)

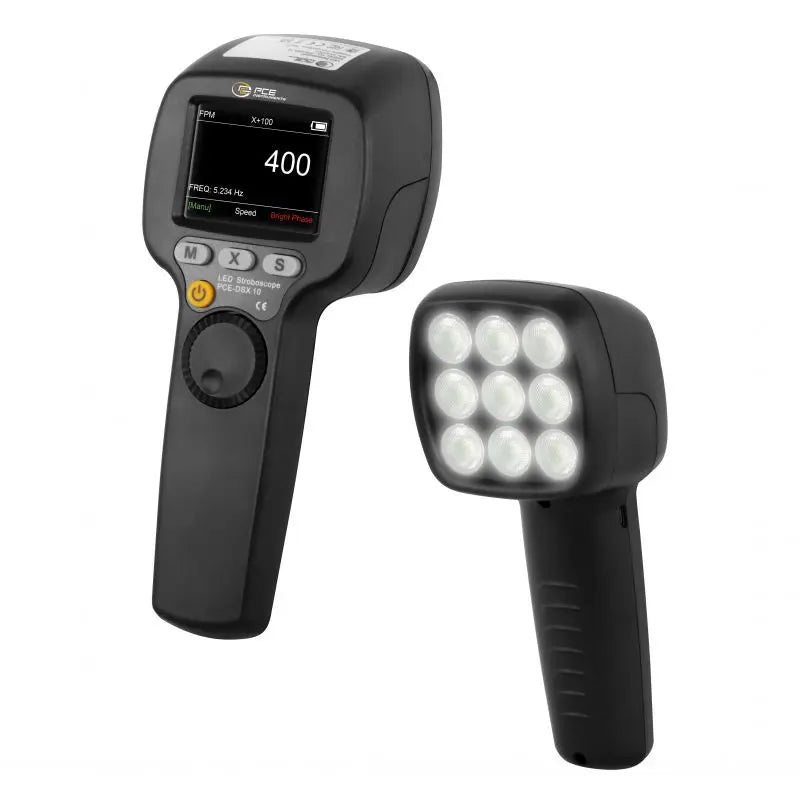

Digital Stroboscope RPM Meter PCE-DSX 10

Description: The PCE-DSX 10 Digital Stroboscope is the ideal tool for measuring rotational speed and inspecting high-speed movements with unparalleled precision. Featuring a wide measuring range of 60 to 999,999 RPM, it is equipped with 9 powerful LEDs delivering 1500 lx light intensity for clear visibility even in challenging conditions. This stroboscope is perfect for applications in HVAC, mechanical processing, production line inspection, and more. With easy one-handed operation and a built-in rechargeable battery offering up to 8 hours of runtime, the PCE-DSX 10 ensures convenience and efficiency in every use.

Features:

  • Wide Measuring Range: 60 to 999,999 RPM for versatile applications.

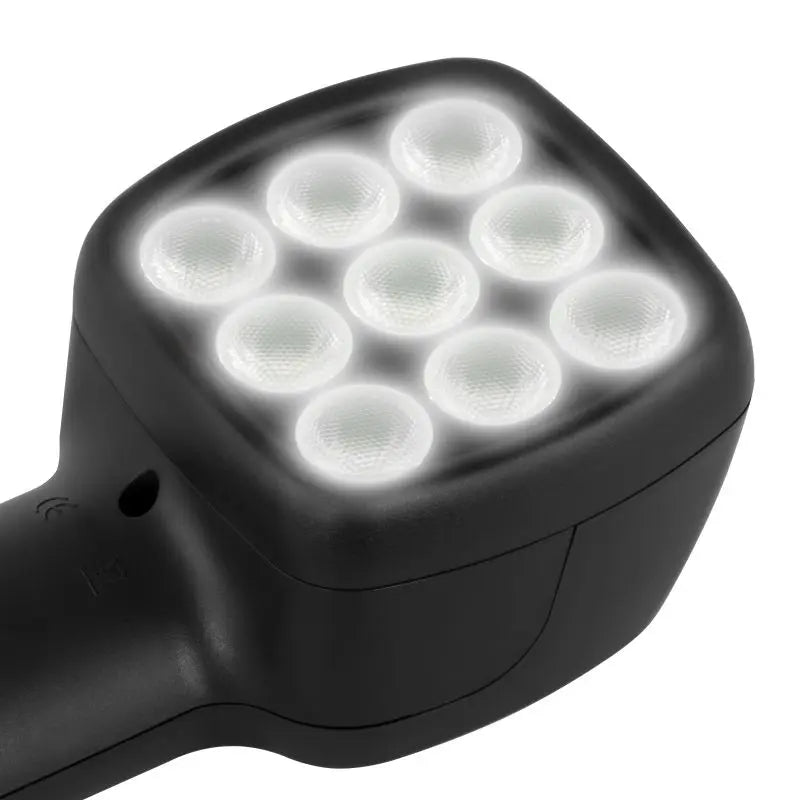

  • 9 Powerful LEDs: Generates 1500 lx light intensity for detailed inspections.
  • User-Friendly Operation: One-handed control with a rotary dial for fine adjustments.
  • Memory Function: Stores up to 5 preset flash frequencies for quick access.
  • Multi-Mode Display: View speed, frequency, or brightness on the illuminated 2.6-inch LCD screen.
  • Phase Adjustment: Adjust from -360° to +360° for dynamic observations.
  • Durable Build: Compact, lightweight design with IP20 protection rating.

Handheld Tachometer

Visual Speed Measuring Range

 60 to 999,999 RPM



Resolution

 1 RPM



Accuracy

 0.001%



Frequency Range

 1 to 16,666.66 Hz



Display

 2.6-inch illuminated LCD



Memory Capacity

 5 values



Light Source

 9 LEDs



Operating Time

 Up to 8 hours



Power Supply

 5 V (rechargeable lithium battery)



Dimensions

 210 x 90 x 57 mm



Weight

 307.5 g



Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

How does the stroboscope measure rotational speed?

The PCE-DSX 10 uses LED strobe lights synchronized with the object's movement to determine speed accurately.

What is the light intensity of the stroboscope?

It features 1500 lx light intensity for clear visibility during inspections.

How long can the battery last on a single charge?

The built-in rechargeable battery provides up to 8 hours of operation.

Can the stroboscope store preset frequencies?

Yes, it can store up to 5 preset flash frequencies for quick recall.

What is the operating temperature range of the device?

The device operates between -10°C and 55°C with up to 85% relative humidity.

Is it suitable for dynamic observation?

Yes, the PCE-DSX 10 allows phase adjustment from -360° to +360° for detailed dynamic analysis.
