Digital Stroboscope PCE-DSX 100

SKU : PCEDSX100
MAKE : PCE INSTRUMENTS
MODEL : PCE-DSX 100
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Original price AED 0.00 - Original price AED 0.00
Original price AED 0.00
AED 540.00
AED 540.00 - AED 540.00
Current price AED 540.00
(Including VAT)

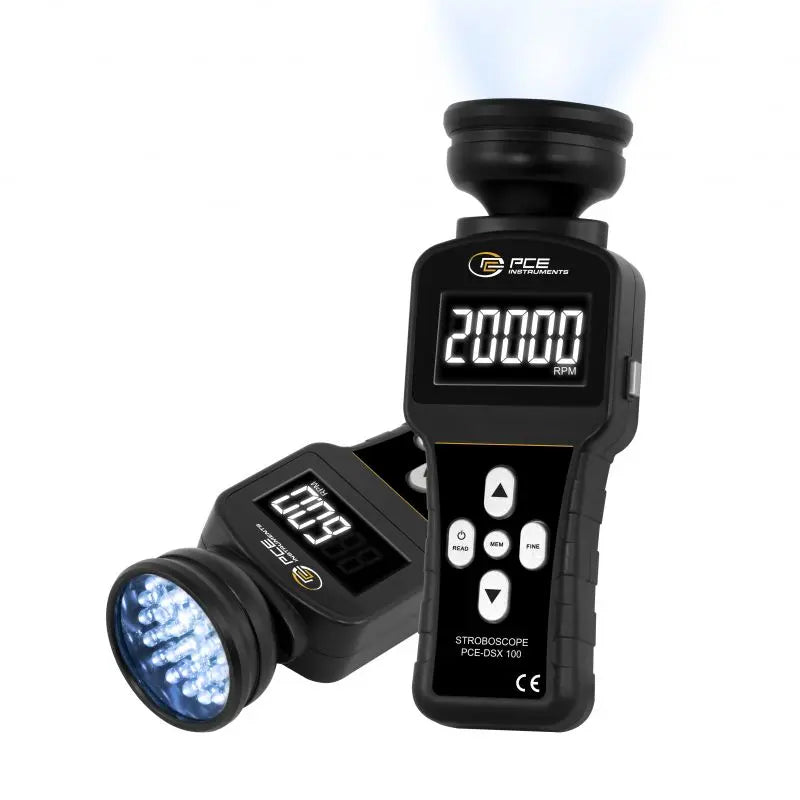

Digital Stroboscope PCE-DSX 100

The PCE-DSX 100 Digital Tachometer is a versatile and compact device for measuring object speed, ideal for periodic motion inspections and fault detection. With a broad measuring range of 60 to 20,000 RPM, it offers coarse and fine adjustments for precision. The tachometer features a 2.1-inch backlit LCD, 36 bright LEDs for optimum light intensity, and data storage for up to 10 readings. Automatic switch-off conserves battery life, making it perfect for professionals in manufacturing, quality control, and maintenance.

Features

  • Wide Measuring Range: 60 to 20,000 RPM for versatile applications.
  • Coarse and Fine Adjustment: Adjust speed in small (+0.1/+1 RPM) or large (+10/+100 RPM) steps for precision.

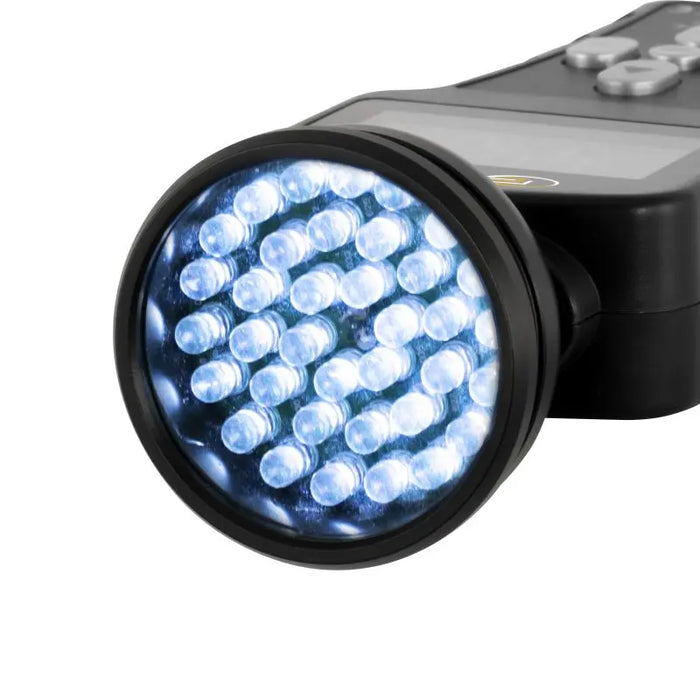

  • Bright LED Flash: Equipped with 36 LEDs for clear readings, even in low light.
  • Data Storage Function: Save up to 10 flash frequency readings for quick access.
  • Energy-Efficient Design: Automatic switch-off after 5 minutes of inactivity to save battery.
  • User-Friendly Display: 2.1-inch backlit LCD with 16 mm digit height for easy readability.
  • Portable and Lightweight: Weighs only 180 g, ideal for handheld use.

Handheld Tachometer

Visual Speed Range

 60–999.9 RPM



Resolution

 0.1 RPM



Accuracy

 ±0.05%



Visual Speed Range

 1000–20,000 RPM



Resolution

 1 RPM



Accuracy

 ±0.05%



Display Type

 Backlit LCD, 2.1 inches



Memory Capacity

 Stores up to 10 values



Light Source

 36 LEDs, approx. 1400 lx @20cm @10,000 RPM



Operating Conditions

 0–50°C, 10–85% relative humidity



Dimensions

 180 x 68 x 56 mm



Weight

 180 g



Power Supply

 4 x 1.5 V AA batteries



Protection Class

 IP20



Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

How accurate is the PCE-DSX 100 Tachometer?

The tachometer offers an accuracy of ±0.05% for precise measurements.

Can it store previous readings?

Yes, the tachometer has internal memory for up to 10 values.

What is the range of speed it can measure?

It measures speeds ranging from 60 to 20,000 RPM.

How does the fine and coarse adjustment work?

Fine adjustment allows changes in small increments of 0.1 or 1 RPM, while coarse adjustment steps in increments of 10 or 100 RPM.

Is the device suitable for low-light environments?

Yes, the tachometer features 36 bright LEDs and a backlit LCD for clear visibility in low-light conditions.

Does the device have an automatic power-saving feature?

Yes, it switches off automatically after 5 minutes of inactivity to conserve battery life.
