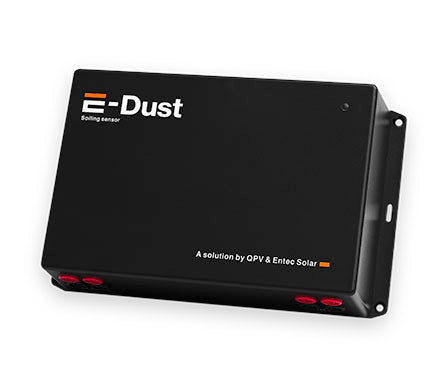

E-Dust Soiling Sensor
SKU : ESE-Dust
MODEL : E-Dust
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
E-Dust Soiling Sensor
The E-Dust Soiling Sensor is a cutting-edge tool designed to measure exact soiling losses in photovoltaic (PV) systems, enabling optimal cleaning campaigns. This innovative sensor accurately calculates energy losses by analyzing the maximum power point (MPP) rather than just the short-circuit current (Isc). With features like automatic module calibration, compensation for temperature differences, and integration with the PVET App for detailed reporting, the E-Dust sensor ensures precise soiling measurement and real-time insights into PV system performance. Its durable, lightweight design and advanced communication options make it a must-have for efficient PV plant management.
Features
- Accurate Soiling Measurement: Measures MPP for precise soiling loss analysis.
- Automatic Calibration: Ensures reliability by calibrating reference modules automatically.
- Temperature Compensation: Adjusts for temperature differences between clean and dirty modules.
- Detailed Data Analysis: PVET App integration for daily, monthly, and yearly loss tracking.
- Impact Analysis: Considers incident angles and hourly losses for comprehensive energy loss calculations.
- Fast Sampling Rate: Provides measurements every minute for real-time monitoring.
- Compact and Durable: Lightweight design with IP51-rated protection for reliable operation.
| Voltage Input | Maximum 160V
|
| Current Input | Maximum 20A
|
| Recommended Voltage (STC) | 125V
|
| Recommended Current (STC) | 12A
|
| Measurement Uncertainty | ±0.3% (Voltage/Current), ±0.5% (Power)
|
| Measurement Resolution | 2.5mV/0.3mA
|
| Communication | ModBus or Direct TCP/IP
|
| Ports | RJ45
|
| Power Input | 12V/24V DC, 500mA @ 12V
|
| IP Rating | IP51
|
| Weight | 1.0 kg
|
| Dimensions | 215 x 150 x 60.5 mm
|
E-Dust Soiling Sensor
The E-Dust Soiling Sensor is a cutting-edge tool designed to measure exact soiling losses in photovoltaic (PV) systems, enabling optimal cleaning campaigns. This innovative sensor accurately calculates energy losses by analyzing the maximum power point (MPP) rather than just the short-circuit current (Isc). With features like automatic module calibration, compensation for temperature differences, and integration with the PVET App for detailed reporting, the E-Dust sensor ensures precise soiling measurement and real-time insights into PV system performance. Its durable, lightweight design and advanced communication options make it a must-have for efficient PV plant management.
Features
- Accurate Soiling Measurement: Measures MPP for precise soiling loss analysis.
- Automatic Calibration: Ensures reliability by calibrating reference modules automatically.
- Temperature Compensation: Adjusts for temperature differences between clean and dirty modules.
- Detailed Data Analysis: PVET App integration for daily, monthly, and yearly loss tracking.
- Impact Analysis: Considers incident angles and hourly losses for comprehensive energy loss calculations.
- Fast Sampling Rate: Provides measurements every minute for real-time monitoring.
- Compact and Durable: Lightweight design with IP51-rated protection for reliable operation.
| Voltage Input | Maximum 160V
|
| Current Input | Maximum 20A
|
| Recommended Voltage (STC) | 125V
|
| Recommended Current (STC) | 12A
|
| Measurement Uncertainty | ±0.3% (Voltage/Current), ±0.5% (Power)
|
| Measurement Resolution | 2.5mV/0.3mA
|
| Communication | ModBus or Direct TCP/IP
|
| Ports | RJ45
|
| Power Input | 12V/24V DC, 500mA @ 12V
|
| IP Rating | IP51
|
| Weight | 1.0 kg
|
| Dimensions | 215 x 150 x 60.5 mm
|
