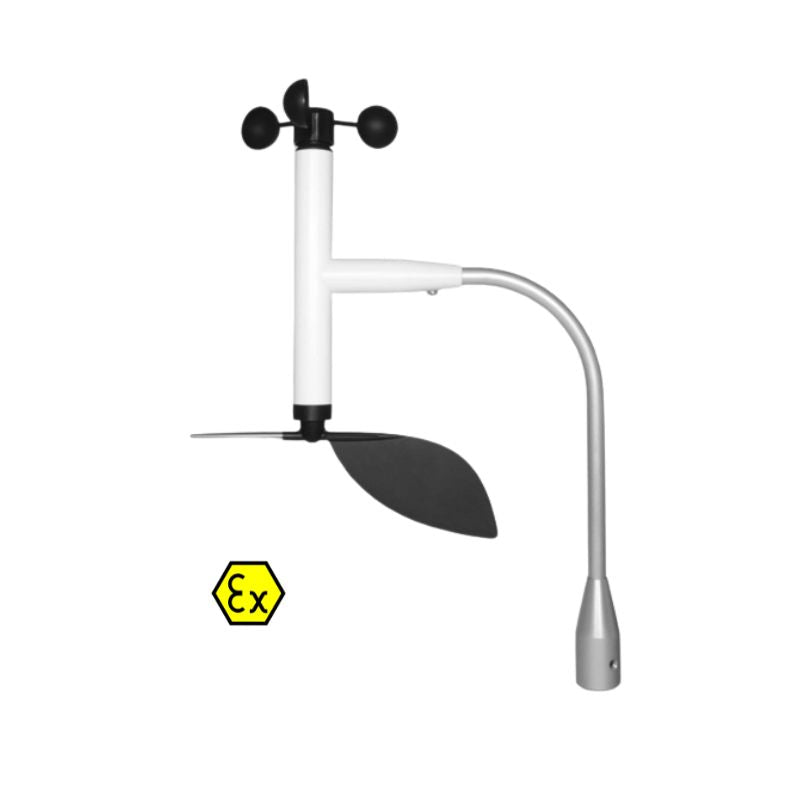

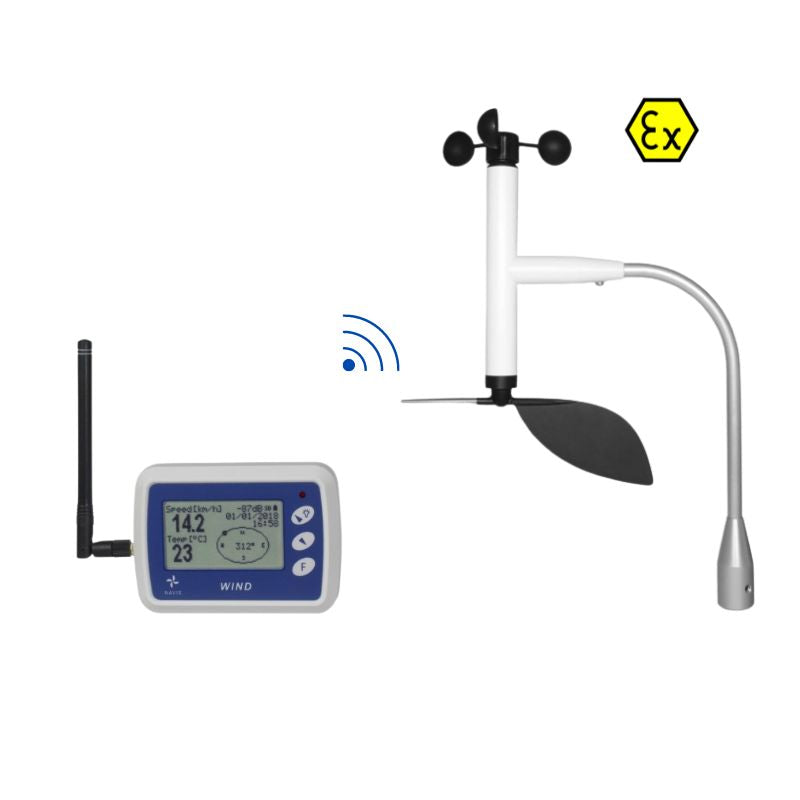

Explosion Proof Wireless Anemometer Navis WR5/WSD Ex
Navis WS 011-1A-EX & WSD 011-1A-EX feature state of the art low power wireless technology connecting sensor and displays, resulting in user friendly “plug and play” installation. Sensors are ATEX/IEC certified and provide reliable solution for wind monitoring in hazardous area.

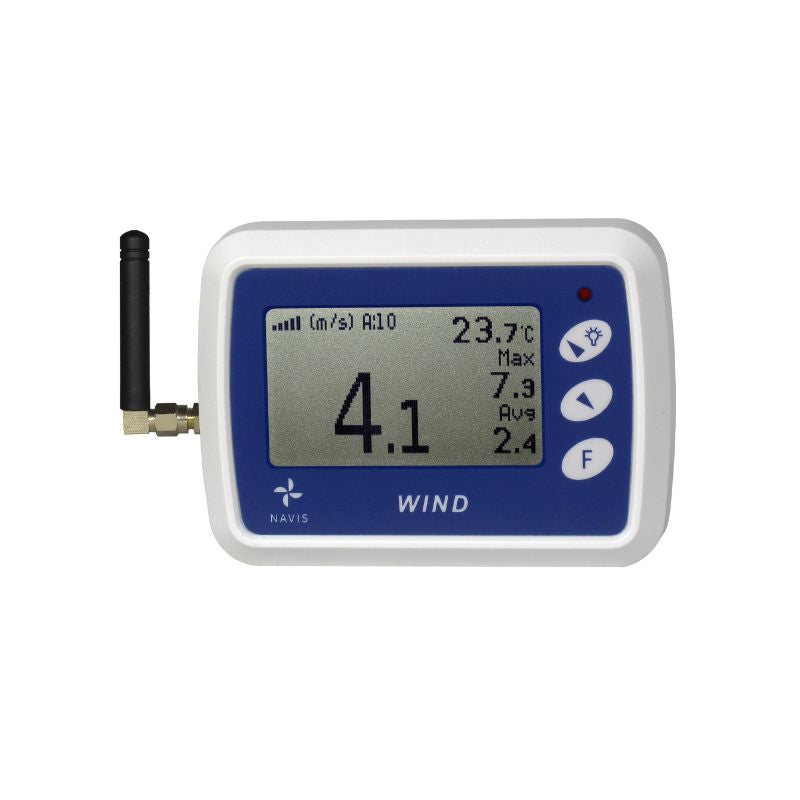

Sensors can operate with wide range of NAVIS display/receiver units enabling a lot of additional functionality like alarming, history logging Wi-Fi and Bluetooth connectivity and outputs for integration into systems.
Features :
- ATEX II 2 G Ex ib IIB T4 proofed (for potentially explosive environments, zone 1 and 2)
- range up to 1300 m ( up to 3 km with Yagi antenna)
- easy installation without running cables
- up to 3 years sensor battery life
- simple and robust design with replaceable parts
- replaceable cups, vane and bearings
- compatible with range of NAVIS display/receiver units
- simultaneously operates with multiple display/receiver units
Wind speed measurement range |
0,7…50 m/s |
---|---|
Current wind speed: |
2 seconds update |
Temperature measurement range |
-30….+60 °C |
Wind speed units: |
m/s, km/h, knots, mph, B???? |
Communication Frequency |
868 MHZ, 915 MHz (FCC model: 908 – 915 MHZ) |
Battery - sensor |
1 x 3,6 V AA Lithium battery , replaceable (included) |
Battery display unit |
2 x 1,5 V AA |
Material - sensor |
polyamide cups, Aluminum base |
Explosion Proof Wireless Anemometer Navis WR5/WSD Ex
Navis WS 011-1A-EX & WSD 011-1A-EX feature state of the art low power wireless technology connecting sensor and displays, resulting in user friendly “plug and play” installation. Sensors are ATEX/IEC certified and provide reliable solution for wind monitoring in hazardous area.
Sensors can operate with wide range of NAVIS display/receiver units enabling a lot of additional functionality like alarming, history logging Wi-Fi and Bluetooth connectivity and outputs for integration into systems.
Features :
- ATEX II 2 G Ex ib IIB T4 proofed (for potentially explosive environments, zone 1 and 2)
- range up to 1300 m ( up to 3 km with Yagi antenna)
- easy installation without running cables
- up to 3 years sensor battery life
- simple and robust design with replaceable parts
- replaceable cups, vane and bearings
- compatible with range of NAVIS display/receiver units
- simultaneously operates with multiple display/receiver units
Wind speed measurement range |
0,7…50 m/s |
---|---|
Current wind speed: |
2 seconds update |
Temperature measurement range |
-30….+60 °C |
Wind speed units: |
m/s, km/h, knots, mph, B???? |
Communication Frequency |
868 MHZ, 915 MHz (FCC model: 908 – 915 MHZ) |
Battery - sensor |
1 x 3,6 V AA Lithium battery , replaceable (included) |
Battery display unit |
2 x 1,5 V AA |
Material - sensor |
polyamide cups, Aluminum base |
