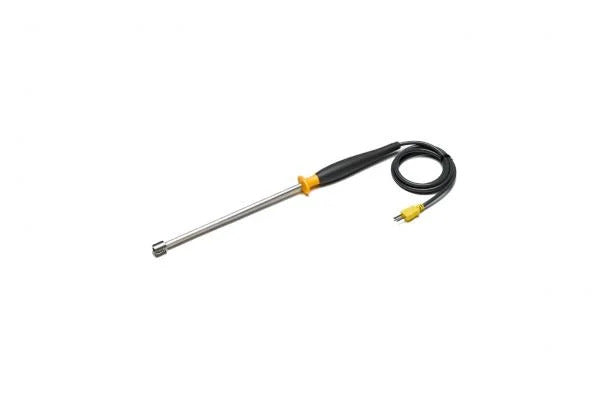

Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe

SKU : FLUKE-80PK27-STP
MAKE : FLUKE
MODEL : Fluke 80PK-27
WARRANTY : 1 Year
Fluke
AED 0.00 - AED 0.00
AED 0.00
AED 1,980.00
AED 1,980.00 - AED 1,980.00
AED 1,980.00
(Including VAT)

Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe

The Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe is a rugged, Type K thermocouple designed for precise surface temperature measurements in industrial settings. Featuring a SureGrip™ handle for a secure hold, it ensures safe and accurate readings even in challenging environments. Compatible with any instrument accepting miniature Type K thermocouples with cold junction compensation.

Features

  • Type K thermocouple compatible

  • Miniature thermocouple connector

  • SureGrip™ handle for secure hold

  • Rugged design for industrial use

  • Accurate surface temperature readings

  • Cold junction compensation supported

  • Works on flat or slightly curved surfaces

TypeK (Chromel vs Alumel)
Measurement Range-127 °C to 600 °C (-196.6 °F to 1112 °F)
Junction Accuracy-127 °C to 0 °C: ±4.4 °C (±7.92 °F)
 0 °C to 183 °C: ±2.2 °C (±4.86 °F)
 183 °C to 600 °C: ±1.2% of reading in °C (±<1.2% of reading in °F)
Output1.00 mV at 25 °C (77 °F), reference junction at 0 °C
Seebeck Coefficient40.50 µV/°C at 25 °C (77 °F)
Measurement Time (Time Constant)1 time constant = 330 ms; 5 time constants = final reading
Max Voltage Rating at Probe Tip24 V AC RMS or 60 V DC
Probe TipMax Temperature: 600 °C (1112 °F)
Material (Probe Tip & Sheath)303 Stainless Steel
Cable Length40 inches (1 meter)
Cable Insulation MaterialPVC
Cable Temperature RangeMax: 105 °C (220 °F), Min: -28.9 °C (-20 °F)
Conductor TypeType K, AWG #24 stranded (7 strands of #32)
Conductor Length1.2 meters nominal (4 ft)
Handle MaterialHytrel
Handle Temperature RangeMax: 65.6 °C (150 °F), Min: -40 °C (-40 °F)
Connector TypeYellow mini-thermocouple, 0.792 mm (0.312 in) pin spacing
Connector MaterialHytrel, Max Temp: 125 °C (275 °F)
DimensionsDiameter: 22.9 mm (0.9 in), Length: 322.6 mm (12.75 in)
Publication DateNovember 2004
Data sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

1. What type of thermocouple is the Fluke 80PK-27?

The Fluke 80PK-27 uses a Type K thermocouple for surface temperature measurement.

2. Is the 80PK-27 compatible with all Fluke temperature meters?

Type K thermocouples with a miniature connector and cold junction compensation.

3. What is the maximum temperature the 80PK-27 can measure?

The probe is rated for use up to 260°C (500°F).

4. What makes the SureGrip™ design unique?

The SureGrip™ handle provides a more secure and comfortable grip, improving accuracy and safety during use.

5. Can the Fluke 80PK-27 be used in rugged industrial environments?

Yes, it is specifically designed for tough industrial conditions and ensures reliable surface temperature readings.

6. Does the probe require cold junction compensation?

Yes, it must be used with an instrument that provides cold junction compensation for accurate readings.

7. Is the probe safe to use on electrically energized equipment?

No, the 80PK-27 is not rated for use on live electrical equipment.

8. How is the probe connected to an instrument?

It uses a standard miniature thermocouple connector for quick and secure attachment.
