Handheld LCR
In stock

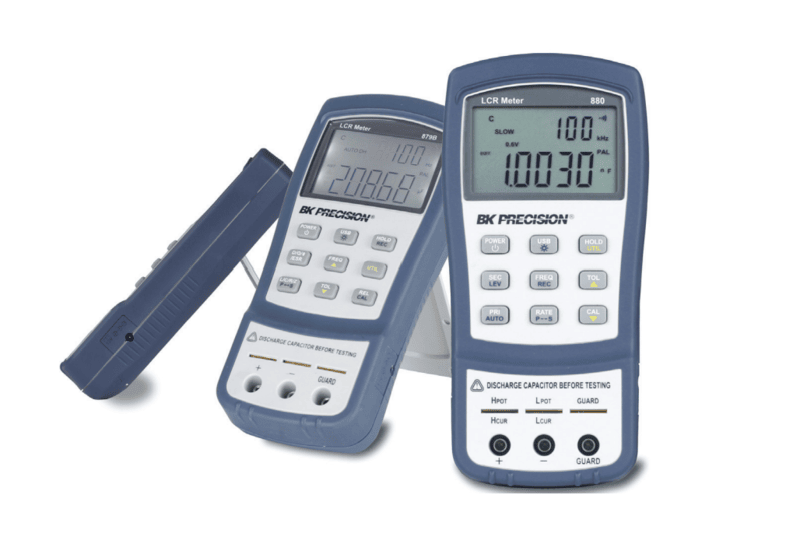

Handheld LCR Meter 879B

MODEL : 879B
AVAILABILITY : IN STOCK
bk_precision
AED 2,400.00 - AED 2,400.00
AED 2,400.00
AED 2,400.00 - AED 2,400.00
AED 2,400.00
(Including VAT)

Handheld LCR Meter 879B

The 878B, 879B, and 880 handheld LCR meters are high-performance instruments designed for fast and accurate measurement of inductance (L), capacitance (C), and resistance (R). Featuring a 40,000-count display, these meters deliver precise results for a wide range of electronic testing and troubleshooting applications.

The 879B and 880 models expand measurement capability to include impedance (Z), Theta, DCR, and ESR, providing greater insight into component performance. The 880 model further offers advanced features typically found only in bench-top LCR meters, such as a 4-terminal measurement configuration, basic accuracy up to 0.1%, test frequencies up to 100 kHz, and selectable test signal levels and measurement rates.

Fast auto-ranging and intuitive measurement configuration make these meters easy to operate, while advanced functions such as data hold, Min/Max/Average recording, tolerance sorting, and relative mode enhance productivity. Measurement data can be continuously transferred to a PC via the USB interface, using either the supplied data-logging software or SCPI commands for custom applications.

Features:

  • 40,000-count high-resolution display
  • L, C, R measurements (Z for 879B & 880)
  • ESR, Theta (879B & 880); DCR (880 only)
  • Accuracy up to 0.1% (880 only)
  • Test frequencies up to 100 kHz (880 only)
  • Fast auto-range and auto-detect mode (880 only)
  • Data Hold, Min/Max/Average
  • USB (Virtual COM) interface with SCPI support

Display Resolution

40,000 counts (Primary) / 10,000 counts (Secondary)

Measured Parameters

Inductance (L), Capacitance (C), Resistance (R), Impedance (Z)

Secondary Parameters

D, Q, Theta, ESR

Basic Accuracy

±0.5%

Test Frequencies

100 Hz, 120 Hz, 1 kHz, 10 kHz

Measurement Configuration

2-terminal, Series / Parallel

Auto Ranging

Yes

Tolerance Mode

Visual & Audible

Functions

Data Hold, Min / Max / Average, Relative Mode

Display

Backlit LCD

PC Interface

USB (Virtual COM), SCPI compliant

Power Supply

9 V battery / AC adapter (120 V standard, 230 V optional)

Data-Sheet : Download

1. What parameters can these LCR meters measure?

All models measure inductance (L), capacitance (C), and resistance (R). The 879B and 880 also measure impedance (Z), ESR, and Theta, while DCR is available on the 880 only.

2. What is the measurement accuracy of these meters?

The 880 model offers basic accuracy up to 0.1%, suitable for high-precision component testing. The 878B and 879B provide reliable accuracy for general applications.

3. What test frequencies are supported?

The 880 supports selectable test frequencies up to 100 kHz. Other models support standard frequencies for routine component measurements.

4. Can measurement data be transferred to a PC?

Yes. All models feature a USB (Virtual COM) interface and support SCPI commands for data logging and remote control via PC software.

5. Are these meters suitable for production and quality control?

Yes. Features such as fast auto-ranging, tolerance sorting, Min/Max/Average recording, and relative mode make them ideal for production testing and quality control.

6. What accessories and power options are included?

Models 879B and 880 include a 120 V AC adapter as standard (230 V versions available). AC adapters are optional for the 878B, and the 880 includes commonly required accessories.

Handheld LCR Meter 879B

The 878B, 879B, and 880 handheld LCR meters are high-performance instruments designed for fast and accurate measurement of inductance (L), capacitance (C), and resistance (R). Featuring a 40,000-count display, these meters deliver precise results for a wide range of electronic testing and troubleshooting applications.

The 879B and 880 models expand measurement capability to include impedance (Z), Theta, DCR, and ESR, providing greater insight into component performance. The 880 model further offers advanced features typically found only in bench-top LCR meters, such as a 4-terminal measurement configuration, basic accuracy up to 0.1%, test frequencies up to 100 kHz, and selectable test signal levels and measurement rates.

Fast auto-ranging and intuitive measurement configuration make these meters easy to operate, while advanced functions such as data hold, Min/Max/Average recording, tolerance sorting, and relative mode enhance productivity. Measurement data can be continuously transferred to a PC via the USB interface, using either the supplied data-logging software or SCPI commands for custom applications.

Features:

  • 40,000-count high-resolution display
  • L, C, R measurements (Z for 879B & 880)
  • ESR, Theta (879B & 880); DCR (880 only)
  • Accuracy up to 0.1% (880 only)
  • Test frequencies up to 100 kHz (880 only)
  • Fast auto-range and auto-detect mode (880 only)
  • Data Hold, Min/Max/Average
  • USB (Virtual COM) interface with SCPI support

Display Resolution

40,000 counts (Primary) / 10,000 counts (Secondary)

Measured Parameters

Inductance (L), Capacitance (C), Resistance (R), Impedance (Z)

Secondary Parameters

D, Q, Theta, ESR

Basic Accuracy

±0.5%

Test Frequencies

100 Hz, 120 Hz, 1 kHz, 10 kHz

Measurement Configuration

2-terminal, Series / Parallel

Auto Ranging

Yes

Tolerance Mode

Visual & Audible

Functions

Data Hold, Min / Max / Average, Relative Mode

Display

Backlit LCD

PC Interface

USB (Virtual COM), SCPI compliant

Power Supply

9 V battery / AC adapter (120 V standard, 230 V optional)

Data-Sheet : Download

1. What parameters can these LCR meters measure?

All models measure inductance (L), capacitance (C), and resistance (R). The 879B and 880 also measure impedance (Z), ESR, and Theta, while DCR is available on the 880 only.

2. What is the measurement accuracy of these meters?

The 880 model offers basic accuracy up to 0.1%, suitable for high-precision component testing. The 878B and 879B provide reliable accuracy for general applications.

3. What test frequencies are supported?

The 880 supports selectable test frequencies up to 100 kHz. Other models support standard frequencies for routine component measurements.

4. Can measurement data be transferred to a PC?

Yes. All models feature a USB (Virtual COM) interface and support SCPI commands for data logging and remote control via PC software.

5. Are these meters suitable for production and quality control?

Yes. Features such as fast auto-ranging, tolerance sorting, Min/Max/Average recording, and relative mode make them ideal for production testing and quality control.

6. What accessories and power options are included?

Models 879B and 880 include a 120 V AC adapter as standard (230 V versions available). AC adapters are optional for the 878B, and the 880 includes commonly required accessories.
