Hikmicro thermal Camera G61H
In stock

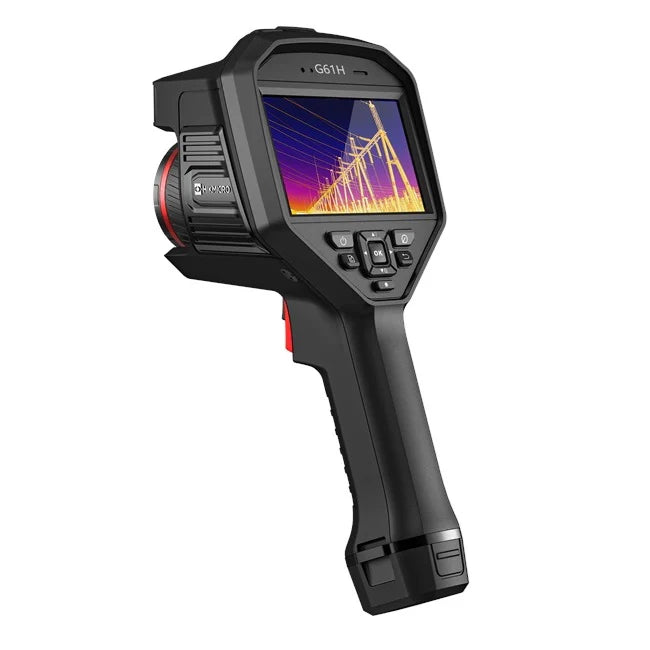

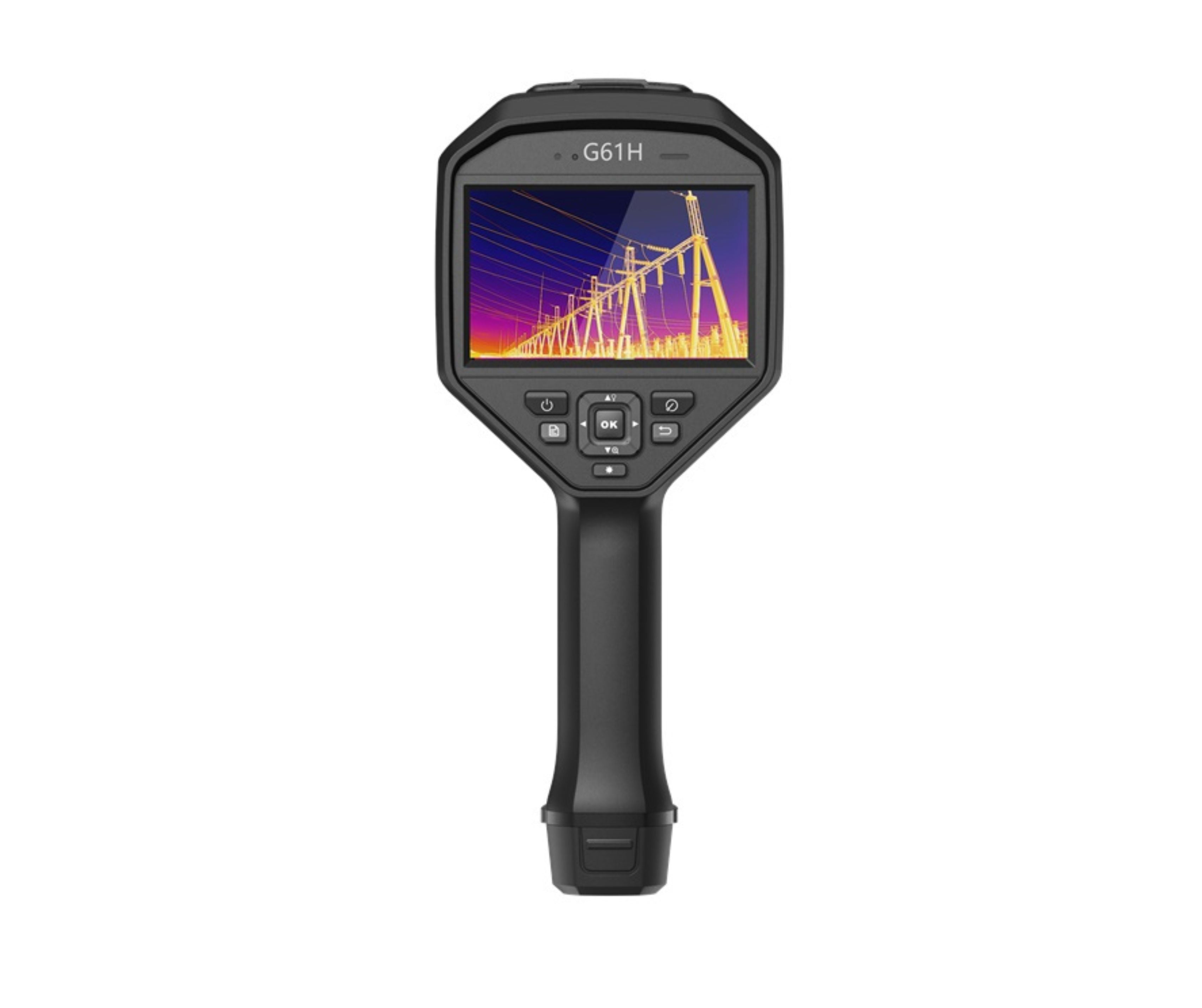

G61H Handheld Thermal Camera

SKU : HIK-G61H-640X480-35MK-2200C
MAKE : HIKMICRO
MODEL : G61H
WARRANTY : 2 Years
AVAILABILITY : IN STOCK
Hikmicro
AED 0.00 - AED 0.00
AED 0.00
AED 26,500.00
AED 26,500.00 - AED 26,500.00
AED 26,500.00
(Including VAT)

G61H Handheld Thermal Camera

The HIKMICRO G61H is a high-performance handheld thermal camera designed for demanding industrial, oil and gas, utility, and predictive maintenance applications. Equipped with a high-resolution 640 × 480 VOx thermal detector and exceptional thermal sensitivity (NETD < 35 mK), it delivers precise imaging for accurate diagnostics. The G61H supports temperature measurement up to 2200°C, making it ideal for high-heat environments. Advanced features include 1-Tap level and span, continuous digital zoom, built-in GPS, and compass for efficient fieldwork. Easily connect to the HIKMICRO Viewer App or Analyzer software to transfer, analyze, and share images or generate detailed reports — all at no extra cost.

 Features:



  • 640 × 480 VOx thermal detector

  • NETD < 35 mK sensitivity

  • Temperature range up to 2200°C

  • 1-Tap level and span

  • Continuous digital zoom

  • Built-in GPS and compass

  • Wi-Fi and USB connectivity

  • Supports HIKMICRO Viewer App & Analyzer software

  • Free image analysis and report generation

HIKMICRO G61 Handheld Thermal Camera



IR Resolution



640 × 480 (307,200 pixels)

SuperIR Resolution



1280 × 960 (1,228,800 pixels)

NETD



< 35 mK (@ 30 °C, F#=1.0)

Image Frequency



50 Hz

Detector Pitch



17 µm

Spectral Range



7.5 to 14 µm

Focal Length



25 mm (optional lenses available)

F-number



F 1.0

Field of View (FOV)



25° × 19° (optional lenses available)

Spatial Resolution (IFOV)



0.68 mrad (optional lenses available)

Min. Focus Distance



0.25 m (0.82 ft) (optional lenses available)

   Optional Accessories:

  • INR18650-1 S2P G-SERIES BATTERY
  • HM-5202ZC2
  • HM-701ZJ-G01-SHIELD HANDHELD THERMOGRAPHY ACCESSORY
  • HM-SP01-POUCH
  • HM-G605 LENS
  • HM-G630-LENS FOR G41 AND G61
Data sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What industries is the HIKMICRO G61H suitable for?

  • The HIKMICRO G61 is ideal for building inspection, electrical utilities, and the oil and gas industry.

Q2. What is the thermal resolution of the G61H?

  • The camera has a high thermal resolution of 640 × 480 pixels (307,200 pixels).

Q3. How long does the battery last on a full charge?

  • The interchangeable and rechargeable Li-ion battery provides approximately 4 hours of continuous operation on a full charge.

Q4. What is the temperature measurement range of the G61H?

  • The G61 can measure temperatures ranging from -20°C to 650°C (-4°F to 1202°F).

Q5. Does the G61H support Wi-Fi and Bluetooth?

  • Yes, the G61 supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 for seamless connectivity.

Q6. What image modes are available on the G61H?

  • The G61 offers multiple image modes including Infrared, Visual, Fusion, Picture-in-Picture (PIP), and Blending.

G61H Handheld Thermal Camera

The HIKMICRO G61H is a high-performance handheld thermal camera designed for demanding industrial, oil and gas, utility, and predictive maintenance applications. Equipped with a high-resolution 640 × 480 VOx thermal detector and exceptional thermal sensitivity (NETD < 35 mK), it delivers precise imaging for accurate diagnostics. The G61H supports temperature measurement up to 2200°C, making it ideal for high-heat environments. Advanced features include 1-Tap level and span, continuous digital zoom, built-in GPS, and compass for efficient fieldwork. Easily connect to the HIKMICRO Viewer App or Analyzer software to transfer, analyze, and share images or generate detailed reports — all at no extra cost.

 Features:



  • 640 × 480 VOx thermal detector

  • NETD < 35 mK sensitivity

  • Temperature range up to 2200°C

  • 1-Tap level and span

  • Continuous digital zoom

  • Built-in GPS and compass

  • Wi-Fi and USB connectivity

  • Supports HIKMICRO Viewer App & Analyzer software

  • Free image analysis and report generation

HIKMICRO G61 Handheld Thermal Camera



IR Resolution



640 × 480 (307,200 pixels)

SuperIR Resolution



1280 × 960 (1,228,800 pixels)

NETD



< 35 mK (@ 30 °C, F#=1.0)

Image Frequency



50 Hz

Detector Pitch



17 µm

Spectral Range



7.5 to 14 µm

Focal Length



25 mm (optional lenses available)

F-number



F 1.0

Field of View (FOV)



25° × 19° (optional lenses available)

Spatial Resolution (IFOV)



0.68 mrad (optional lenses available)

Min. Focus Distance



0.25 m (0.82 ft) (optional lenses available)

   Optional Accessories:

  • INR18650-1 S2P G-SERIES BATTERY
  • HM-5202ZC2
  • HM-701ZJ-G01-SHIELD HANDHELD THERMOGRAPHY ACCESSORY
  • HM-SP01-POUCH
  • HM-G605 LENS
  • HM-G630-LENS FOR G41 AND G61
Data sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What industries is the HIKMICRO G61H suitable for?

  • The HIKMICRO G61 is ideal for building inspection, electrical utilities, and the oil and gas industry.

Q2. What is the thermal resolution of the G61H?

  • The camera has a high thermal resolution of 640 × 480 pixels (307,200 pixels).

Q3. How long does the battery last on a full charge?

  • The interchangeable and rechargeable Li-ion battery provides approximately 4 hours of continuous operation on a full charge.

Q4. What is the temperature measurement range of the G61H?

  • The G61 can measure temperatures ranging from -20°C to 650°C (-4°F to 1202°F).

Q5. Does the G61H support Wi-Fi and Bluetooth?

  • Yes, the G61 supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 for seamless connectivity.

Q6. What image modes are available on the G61H?

  • The G61 offers multiple image modes including Infrared, Visual, Fusion, Picture-in-Picture (PIP), and Blending.
