HVA90 VLF High Voltage Test Set Rental

SKU : HVA90
MODEL : HVA90
AVAILABILITY : IN STOCK

SECURITY DEPOSIT: AED 10000.00

HVA90 VLF High Voltage Test Set Rental

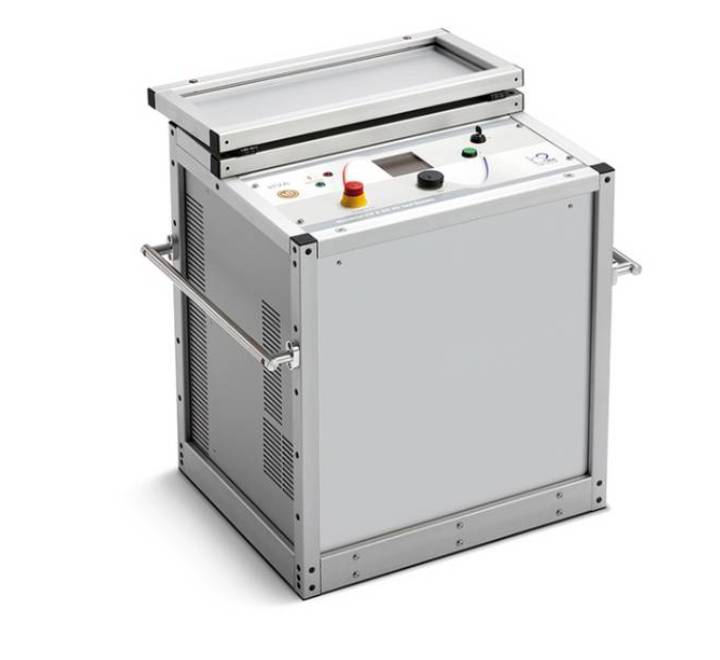

The HVA90 VLF High Voltage Test Set is an advanced, versatile tool designed for testing medium voltage cables with voltage ratings up to 69 kV. With its compact design and impressive power-to-weight ratio, the HVA90 delivers reliable and accurate testing for cables up to 64 kVrms and 90 kVpeak. The device supports VLF, DC, and sheath testing, with real-time oscilloscope displays and programmable test sequences for comprehensive diagnostics. Ideal for both field and lab use, the HVA90 ensures safety and efficiency with its dual discharge devices and integrated backfeed protection.

Features

  • Pure Sinusoidal Output: Load-independent pure sinusoidal output voltage.
  • Sheath Fault Pinpointing: Compatible with sheath fault locators for precise fault detection.
  • High Voltage Output: Delivers up to 64 kVrms and 90 kVpeak.
  • Programmable Tests: Customizable test sequences via built-in software.
  • Real-Time Oscilloscope: Displays output voltage in real-time on the device screen.
  • Continuous Operation: No thermal limitations, enabling uninterrupted use.
  • Data Connectivity: USB and RS232 ports for easy data transfer and report downloads.
  • Robust Design: Solid HV connectors and maintenance-free dry system construction.
  • Safety Features: Dual discharge devices and 12 kV backfeed protection ensure safe operation.
Output Voltage
VLF Sine Wave

0 - 64 kVrms / 0 - 90 kVpeak



DC

-90 kV to 90 kV



VLF Square Wave

0 - 90 kV



Sheath Test

0 - 10 kV (negative polarity)



Resolution

0.1 kV



Output Current
AC

41 mArms max.



DC

57 mA max.



Sheath Test Trip Current

0.1 - 5 mA



Sheath Fault Location

40 mA max.



Measurement Accuracy
AC Voltage

± 0.1 kVrms ± 1% of reading



DC Voltage

 ± 0.1 kV ± 1% of reading



AC Current

± 1 µArms ± 1% of reading



DC Current

 ± 1 µA ± 1% of reading



Environmental Conditions
Operating Temperature

 -10 to +50°C



Storage Temperature

 -25 to +70°C



Humidity

 5 - 85%, non-condensing



Dimensions

 545 x 445 x 610 mm (21.45 x 17.51 x 24 in)



Weight

 127 kg (280 lbs)



Power Supply

 210 - 240 V, 50/60 Hz, 3.000 VA







Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1: What is the maximum voltage the HVA90 can output?

A1: The HVA90 can output up to 64 kVrms and 90 kVpeak for VLF sine wave testing.

Q2: Can the HVA90 perform sheath testing?

A2: Yes, the HVA90 can perform sheath testing with a maximum output of 10 kV (negative polarity).

Q3: Does the HVA90 support continuous operation?

A3: Yes, the HVA90 is designed for continuous operation without any thermal limitations.

Q4: How can I transfer test data from the HVA90?

A4: Test data can be transferred via USB flash drive or RS232 port for further analysis and reporting.

Q5: What safety features are included in the HVA90?

A5: The HVA90 includes dual discharge devices (electronic and mechanical) and a 12 kV backfeed protection system to ensure safe operation.

Q6: What optional accessories are available for the HVA90?

A6: Optional accessories include a discharge stick, transport case with wheels, Tan Delta diagnostics system (TD90-MC), and a combined PD & TD diagnostics system (PDTD90-2).
