Intrinsically Safe Thermal Camera Hikmicro BX20
In stock

Intrinsically Safe Thermal Camera Hikmicro BX20

SKU : TICHMBX20
MAKE : HIKMICRO
MODEL : BX20
WARRANTY : 2 Years
AVAILABILITY : IN STOCK
Hikmicro
AED 5,100.00 - AED 5,100.00
AED 5,100.00
AED 5,100.00 - AED 5,100.00
AED 5,100.00
(Including VAT)

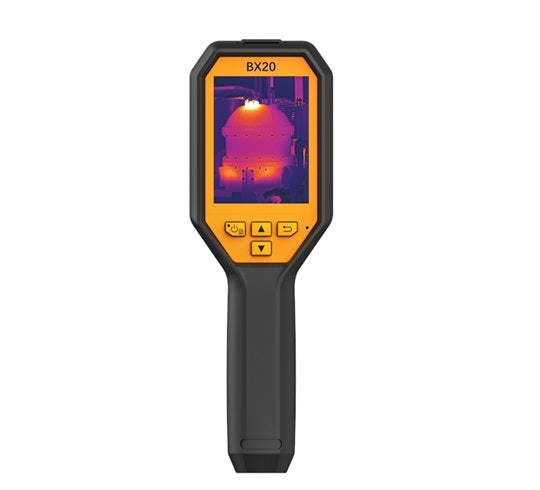

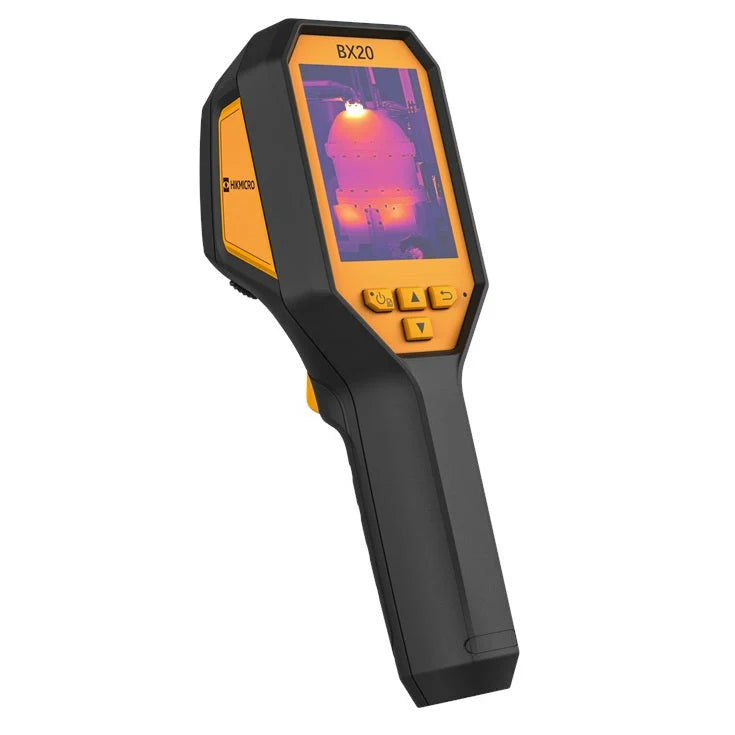

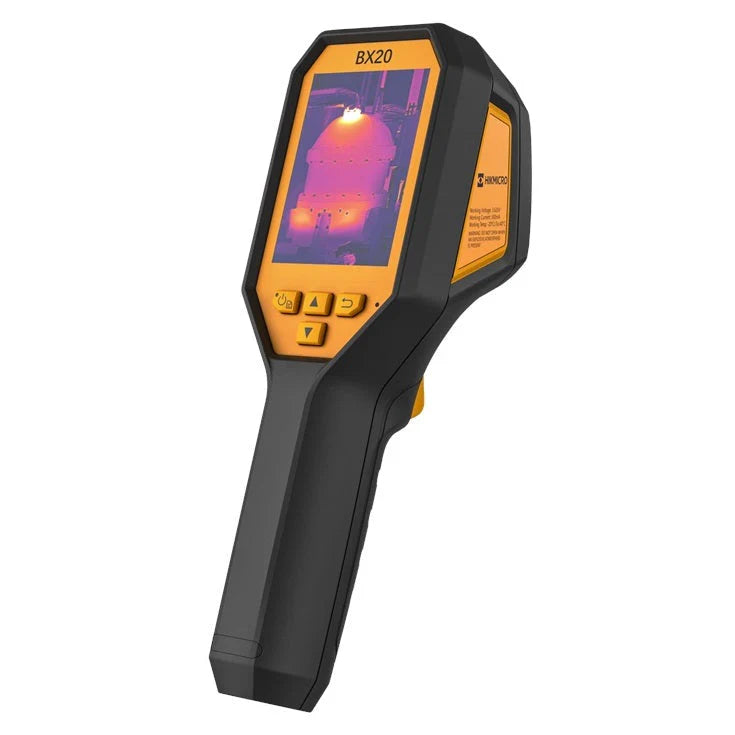

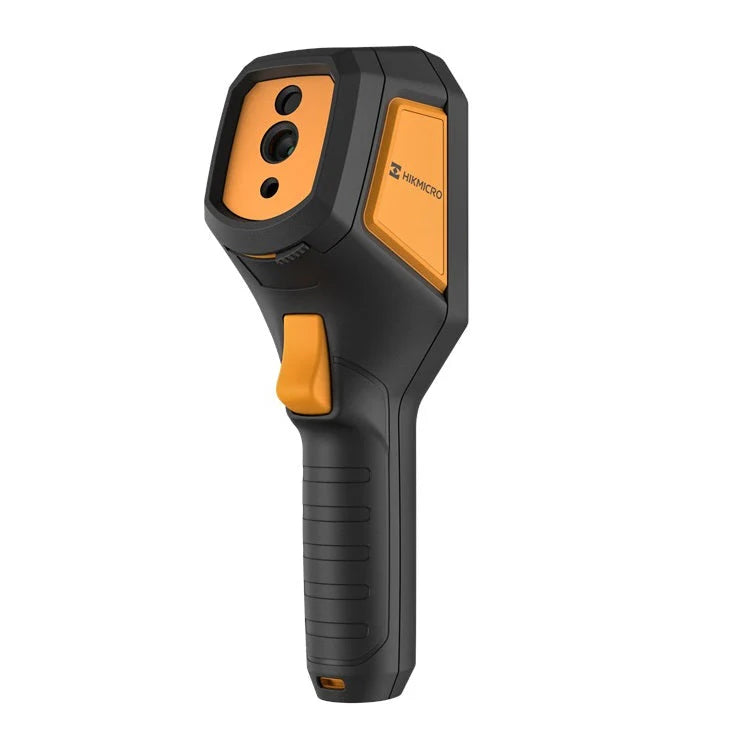

Intrinsically Safe Thermal Camera Hikmicro BX20

The Hikmicro BX20 Intrinsically Safe Thermal Camera is a handheld thermography device designed for use in explosive environments. It is equipped with a 256 x 192 resolution thermal detector and a 2MP visual camera, making it ideal for quickly identifying faults through accurate temperature measurements. The camera is ATEX and IECEx certified, ensuring safety and reliability in hazardous conditions. With a temperature measurement range from -20°C to 550°C (-4°F to 1022°F), the BX20 is versatile and essential for maintaining safety and efficiency in challenging environments.

Features:

  • ATEX and IECEx Certified: Suitable for use in explosive environments.
  • High Thermal Resolution: 256 x 192 pixels for detailed thermal imaging.
  • Wide Temperature Range: Measures from -20°C to 550°C (-4°F to 1022°F).
  • Fast Image Frequency: 25 Hz for real-time imaging.
  • Large Display: 3.2" LCD screen for clear visuals.
  • Long Battery Life: Up to 6 hours of continuous operation.
  • Multiple Image Modes: Thermal, Visual, Fusion, and Picture-in-Picture (PIP).
  • User-Definable Measurement Tools: Center spot, hot spot, cold spot, and up to 3 customizable spots.

ATEX & IECEx Certified Compact Intrinsically Safe Thermal

  • Infrared Image:
    • Resolution: 256 x 192 (49,152 pixels)
    • NETD: < 40 mK (@ 25 °C, F#=1.0)
    • Image Frequency: 25 Hz
    • Detector Pitch: 12 μm
    • Spectral Range: 7.5 to 14 μm
    • Focal Length: 3.6 mm
    • F-number: F1.0
    • Field of View: 37.2° × 50.0°
    • Spatial Resolution: 3.3 mrad
    • Min. Focus Distance: 0.3 m (0.98 ft)
    • Focus Mode: Focus Free
  • Image Display:
    • Visual Camera: 1600 x 1200 (2 MP)
    • Display: 240 x 320 Resolution, 3.2” LCD Screen
    • Color Palettes: White Hot, Black Hot, Rainbow, Ironbow
    • Image Modes: Thermal, Visual, Fusion, PIP
  • Measurement and Analysis:
    • Temperature Range: -20°C to 550°C (-4°F to 1022°F)
    • Accuracy: Max. (± 2°C/3.6°F, ± 2%) for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
    • Measurement Tools: Center Spot, Hot Spot, Cold Spot, and 3 user-definable spots
    • Level and Span Mode: Auto/Manual
  • Data Storage and Communication:
    • Storage Media: Built-in 16 GB flash memory
    • Image Storage Capacity: Approx. 90,000 Images
    • USB Interface: USB Type-C
  • General:
    • LED Light: Yes
    • Battery Type: Rechargeable Li-ion battery
    • Battery Operating Time: Approx. 6 hours
    • Battery Charging Time: Approx. 3 hours fully charged
    • Protection Level: IP64
    • Drop Test Height: 2 m (6.56 ft)
    • Working Temperature Range: -20°C to 50°C (-4°F to 122°F)
    • Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
    • Relative Humidity: < 95% non-condensing
    • Weight: Approx. 380 g (0.84 lb)
    • Dimension: 221.7 x 73.5 x 123.8 mm (8.73 x 2.89 x 4.87 in)
    • Tripod Mounting: UNC ¼”-20

Optional Accessory: HM-B01-POUCH

Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What certifications does the Hikmicro BX20 have?

  • The Hikmicro BX20 is ATEX and IECEx certified, making it safe for use in explosive environments.

Q2. What is the thermal resolution of the BX20?

  • The camera has a thermal resolution of 256 x 192 pixels, providing detailed thermal imaging.

Q3. How long does the battery last on a full charge?

  • The rechargeable Li-ion battery offers up to 6 hours of continuous operation on a full charge.

Q4. What is the temperature measurement range of the BX20?

  • The BX20 can measure temperatures ranging from -20°C to 550°C (-4°F to 1022°F).

Q5. Can the camera store images?

  • Yes, the BX20 has a built-in 16 GB flash memory capable of storing approximately 90,000 images.

Q6. What image modes are available on the BX20?

  • The BX20 offers multiple image modes, including Thermal, Visual, Fusion, and Picture-in-Picture (PIP).
