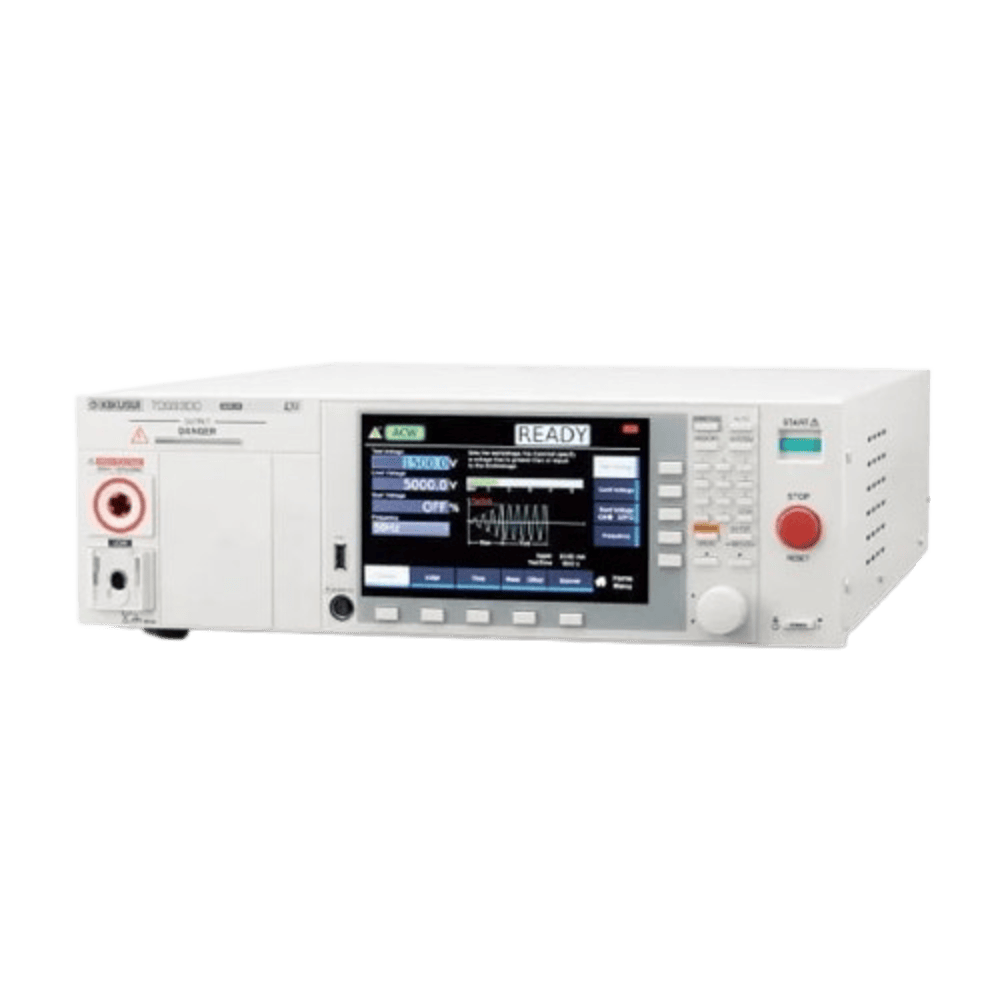

TOS9300 Kikusui

Kikusui TOS9300 Series Electrical Safety Multi-Analyzer

SKU : KITOS9300
MODEL : TOS9300
WARRANTY : 1 Year
Kikusui
AED 15,500.00 - AED 15,500.00
AED 15,500.00
AED 15,500.00 - AED 15,500.00
AED 15,500.00
(Including VAT)

Kikusui TOS9300 Series Electrical Safety Multi-Analyzer

The Kikusui TOS9300 Series is a high-performance electrical safety analyzer designed for comprehensive safety testing of electrical and electronic products. It supports multiple test functions such as AC Hipot, DC Hipot, insulation resistance, ground bond, leakage current, and partial discharge testing, depending on the selected model.

The TOS9300 series is suitable for production lines, quality control, R&D laboratories, and compliance testing applications. With its stable output, color LCD display, programmable test sequences, and standard communication interfaces, it provides reliable and efficient testing for a wide range of electrical safety standards.

Features:

  • All-in-one electrical safety analyzer
  • AC Hipot test up to 5 kV / 100 mA
  • DC Hipot test up to 7.2 kV / 20 mA
  • Insulation resistance test up to 100 GΩ
  • Ground bond test up to 40 A AC/DC
  • Leakage current test available on TOS9303LC
  • Partial discharge test available on TOS9301PD
  • Large color LCD display
  • Programmable automatic test sequence
  • Stable high-voltage output
  • LAN, USB, and RS232C interfaces
  • Optional multi-channel scanner support

Product Name

Kikusui TOS9300 Series

Product Type

Electrical Safety Multi-Analyzer

Test Functions

AC Hipot, DC Hipot, Insulation Resistance, Ground Bond, Leakage Current, Partial Discharge

AC Hipot Test

Up to 5 kV / 100 mA

DC Hipot Test

Up to 7.2 kV / 20 mA

Insulation Resistance Test

0.001 MΩ to 100 GΩ

Ground Bond Test

Up to 40 A AC/DC

Leakage Current Test

1 µA to 100 mA rms

Partial Discharge Test

Available on TOS9301PD

Display

Color LCD screen

Automatic Test

Programmable automatic test sequence

Interface

LAN, USB, RS232C

Input Power

Universal input support

Scanner Option

TOS9320 High-Voltage Scanner

Suitable Applications

Electrical safety compliance, production line testing, R&D, QA/QC testing

Models Available

TOS9300, TOS9301, TOS9301PD, TOS9302, TOS9303, TOS9303LC

Tos9300-Datasheet : Download

1. What is the Kikusui TOS9300 Series used for?

The TOS9300 Series is used for electrical safety testing, including AC/DC Hipot, insulation resistance, ground bond, leakage current, and partial discharge testing.

2. What is the maximum AC Hipot output of the TOS9300 Series?

The TOS9300 Series supports AC Hipot testing up to 5 kV / 100 mA.

3. Can the TOS9300 perform DC Hipot testing?

Yes, selected models support DC Hipot testing up to 7.2 kV / 20 mA.

4. Which model supports leakage current testing?

The TOS9303LC model supports leakage current testing, including touch current and protective conductor current tests.

5. Which model supports partial discharge testing?

The TOS9301PD model supports partial discharge testing for insulation diagnosis.

6. Does the TOS9300 Series support computer connectivity? Yes, it comes with standard LAN, USB, and RS232C interfaces for remote control, data transfer, and production line integration.

Kikusui TOS9300 Series Electrical Safety Multi-Analyzer

The Kikusui TOS9300 Series is a high-performance electrical safety analyzer designed for comprehensive safety testing of electrical and electronic products. It supports multiple test functions such as AC Hipot, DC Hipot, insulation resistance, ground bond, leakage current, and partial discharge testing, depending on the selected model.

The TOS9300 series is suitable for production lines, quality control, R&D laboratories, and compliance testing applications. With its stable output, color LCD display, programmable test sequences, and standard communication interfaces, it provides reliable and efficient testing for a wide range of electrical safety standards.

Features:

  • All-in-one electrical safety analyzer
  • AC Hipot test up to 5 kV / 100 mA
  • DC Hipot test up to 7.2 kV / 20 mA
  • Insulation resistance test up to 100 GΩ
  • Ground bond test up to 40 A AC/DC
  • Leakage current test available on TOS9303LC
  • Partial discharge test available on TOS9301PD
  • Large color LCD display
  • Programmable automatic test sequence
  • Stable high-voltage output
  • LAN, USB, and RS232C interfaces
  • Optional multi-channel scanner support

Product Name

Kikusui TOS9300 Series

Product Type

Electrical Safety Multi-Analyzer

Test Functions

AC Hipot, DC Hipot, Insulation Resistance, Ground Bond, Leakage Current, Partial Discharge

AC Hipot Test

Up to 5 kV / 100 mA

DC Hipot Test

Up to 7.2 kV / 20 mA

Insulation Resistance Test

0.001 MΩ to 100 GΩ

Ground Bond Test

Up to 40 A AC/DC

Leakage Current Test

1 µA to 100 mA rms

Partial Discharge Test

Available on TOS9301PD

Display

Color LCD screen

Automatic Test

Programmable automatic test sequence

Interface

LAN, USB, RS232C

Input Power

Universal input support

Scanner Option

TOS9320 High-Voltage Scanner

Suitable Applications

Electrical safety compliance, production line testing, R&D, QA/QC testing

Models Available

TOS9300, TOS9301, TOS9301PD, TOS9302, TOS9303, TOS9303LC

Tos9300-Datasheet : Download

1. What is the Kikusui TOS9300 Series used for?

The TOS9300 Series is used for electrical safety testing, including AC/DC Hipot, insulation resistance, ground bond, leakage current, and partial discharge testing.

2. What is the maximum AC Hipot output of the TOS9300 Series?

The TOS9300 Series supports AC Hipot testing up to 5 kV / 100 mA.

3. Can the TOS9300 perform DC Hipot testing?

Yes, selected models support DC Hipot testing up to 7.2 kV / 20 mA.

4. Which model supports leakage current testing?

The TOS9303LC model supports leakage current testing, including touch current and protective conductor current tests.

5. Which model supports partial discharge testing?

The TOS9301PD model supports partial discharge testing for insulation diagnosis.

6. Does the TOS9300 Series support computer connectivity? Yes, it comes with standard LAN, USB, and RS232C interfaces for remote control, data transfer, and production line integration.
