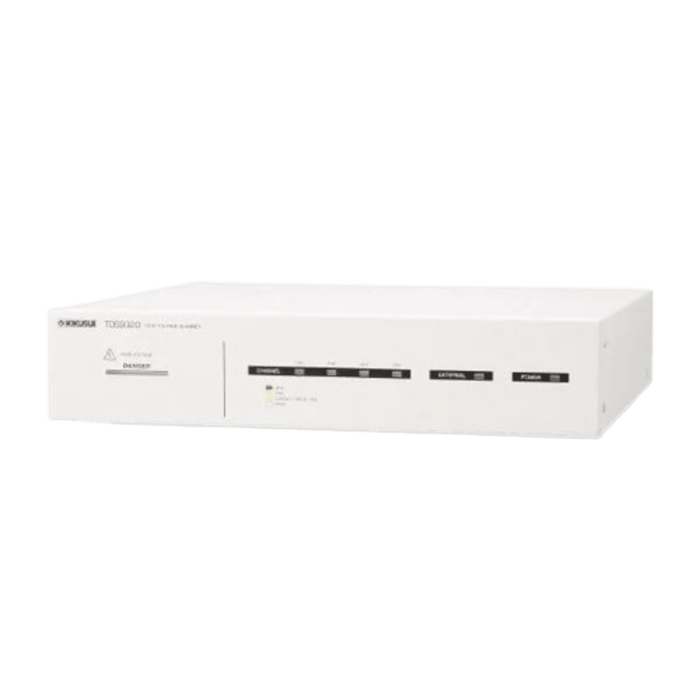

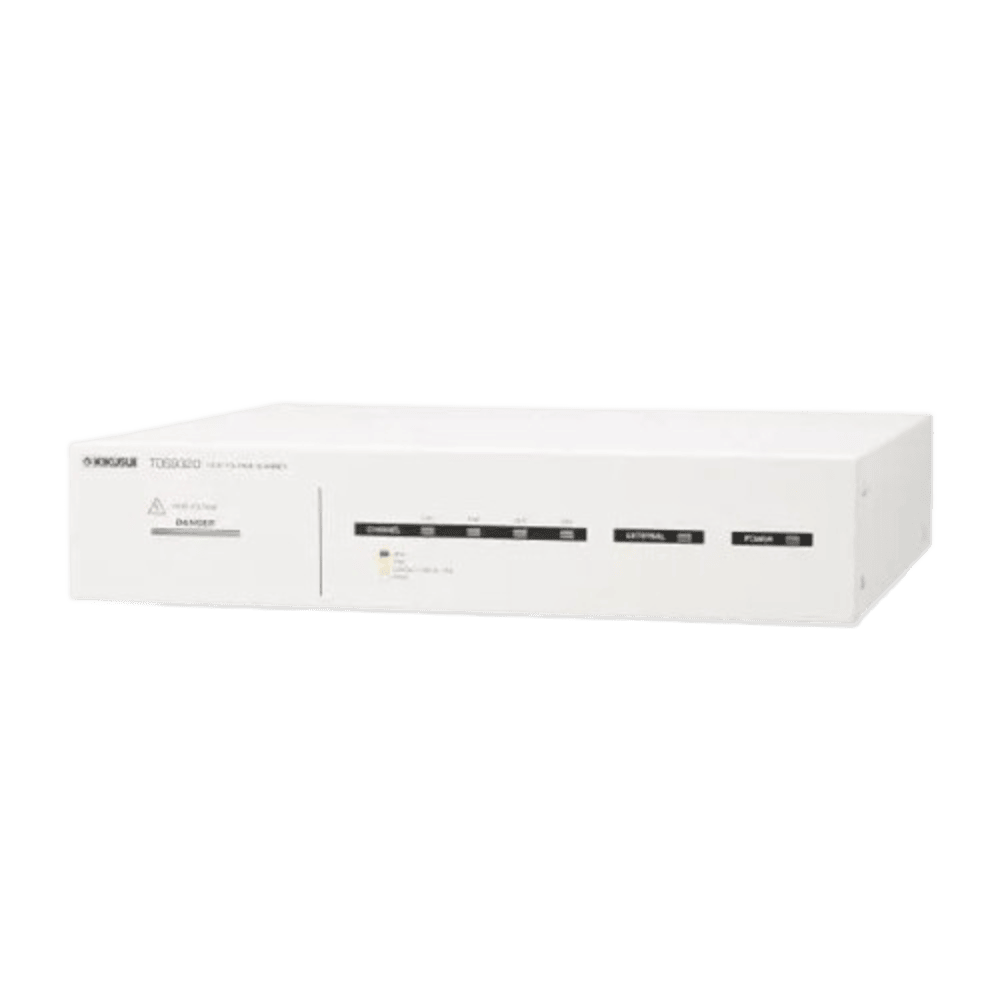

Kikusui TOS9320 High Voltage Scanner

Kikusui TOS9320 High Voltage Scanner

SKU : KITOS9320
MODEL : TOS9320
WARRANTY : 1 Year
Kikusui
AED 10,800.00 - AED 10,800.00
AED 10,800.00
AED 10,800.00 - AED 10,800.00
AED 10,800.00
(Including VAT)

Kikusui TOS9320 High Voltage Scanner

The Kikusui TOS9320 is a 4-channel high-voltage scanner designed for use with the TOS9300 Series electrical safety analyzers. It allows the test voltage from the main unit to be distributed to multiple test points, making it ideal for multi-point withstand voltage and insulation resistance testing.

The TOS9320 can also be used as a standalone scanner and supports contact check functions for safer and more reliable testing. It is suitable for production lines, quality inspection, electrical safety testing, and automated test systems where several points need to be tested quickly.

Features:

  • 4-channel high-voltage scanning
  • Can expand testing points by connecting multiple scanners
  • Up to 4 scanners can be connected, giving a maximum of 16 channels
  • Each channel output can be set to High, Low, or Open
  • Supports contact check function
  • Can be used with TOS9300 Series testers
  • Can also operate as a standalone high-voltage scanner
  • Suitable for withstand voltage and insulation resistance test systems
  • Helps reduce manual wiring changes during multi-point testing
  • Useful for production line safety testing and automated testing applications
  • Front and rear panel design for easy system integration
  • Compact bench-top design

Product Type

High-Voltage Scanner

Compatible Series

Kikusui TOS9300 Series Safety Analyzers

Number of Channels

4 channels

Main Function

Distributes high-voltage output to multiple testing points

Supported Tests

Withstand voltage test and insulation resistance test

Channel Output Setting

High, Low, or Open

Expansion Capability

Up to 4 scanners can be connected

Maximum Channels with Expansion

Up to 16 channels

Contact Check Function

Yes

Standalone Operation

Yes

Interface Connection

Controller interface connection with TOS9300 Series

Application

Multi-point electrical safety testing

Suitable For

Production line testing, quality control, automated safety test systems

Dimensions

Approx. 430 W × 88 H × 370 D mm

Weight

Approx. 8 kg

TOS9320-Datasheet : Download

1. What is the Kikusui TOS9320 used for?

The TOS9320 is used to distribute high-voltage test output from a TOS9300 Series safety analyzer to multiple test points for faster multi-point testing.

2. How many channels does the TOS9320 have?

The TOS9320 has 4 high-voltage output channels.

3. Can multiple TOS9320 scanners be connected together?

Yes. Up to 4 units can be connected, allowing a maximum of 16 test channels.

4. Can the TOS9320 be used as a standalone unit?

Yes. The TOS9320 can be used as a standalone high-voltage scanner.

5. What tests can be performed using the TOS9320?

It is mainly used with withstand voltage and insulation resistance testing systems, especially for multi-point safety testing.

6. What is the benefit of using the TOS9320?

It reduces manual cable changes, improves testing speed, and helps create a safer and more efficient automated safety test setup.

Kikusui TOS9320 High Voltage Scanner

The Kikusui TOS9320 is a 4-channel high-voltage scanner designed for use with the TOS9300 Series electrical safety analyzers. It allows the test voltage from the main unit to be distributed to multiple test points, making it ideal for multi-point withstand voltage and insulation resistance testing.

The TOS9320 can also be used as a standalone scanner and supports contact check functions for safer and more reliable testing. It is suitable for production lines, quality inspection, electrical safety testing, and automated test systems where several points need to be tested quickly.

Features:

  • 4-channel high-voltage scanning
  • Can expand testing points by connecting multiple scanners
  • Up to 4 scanners can be connected, giving a maximum of 16 channels
  • Each channel output can be set to High, Low, or Open
  • Supports contact check function
  • Can be used with TOS9300 Series testers
  • Can also operate as a standalone high-voltage scanner
  • Suitable for withstand voltage and insulation resistance test systems
  • Helps reduce manual wiring changes during multi-point testing
  • Useful for production line safety testing and automated testing applications
  • Front and rear panel design for easy system integration
  • Compact bench-top design

Product Type

High-Voltage Scanner

Compatible Series

Kikusui TOS9300 Series Safety Analyzers

Number of Channels

4 channels

Main Function

Distributes high-voltage output to multiple testing points

Supported Tests

Withstand voltage test and insulation resistance test

Channel Output Setting

High, Low, or Open

Expansion Capability

Up to 4 scanners can be connected

Maximum Channels with Expansion

Up to 16 channels

Contact Check Function

Yes

Standalone Operation

Yes

Interface Connection

Controller interface connection with TOS9300 Series

Application

Multi-point electrical safety testing

Suitable For

Production line testing, quality control, automated safety test systems

Dimensions

Approx. 430 W × 88 H × 370 D mm

Weight

Approx. 8 kg

TOS9320-Datasheet : Download

1. What is the Kikusui TOS9320 used for?

The TOS9320 is used to distribute high-voltage test output from a TOS9300 Series safety analyzer to multiple test points for faster multi-point testing.

2. How many channels does the TOS9320 have?

The TOS9320 has 4 high-voltage output channels.

3. Can multiple TOS9320 scanners be connected together?

Yes. Up to 4 units can be connected, allowing a maximum of 16 test channels.

4. Can the TOS9320 be used as a standalone unit?

Yes. The TOS9320 can be used as a standalone high-voltage scanner.

5. What tests can be performed using the TOS9320?

It is mainly used with withstand voltage and insulation resistance testing systems, especially for multi-point safety testing.

6. What is the benefit of using the TOS9320?

It reduces manual cable changes, improves testing speed, and helps create a safer and more efficient automated safety test setup.
