Klauke EK354CFM

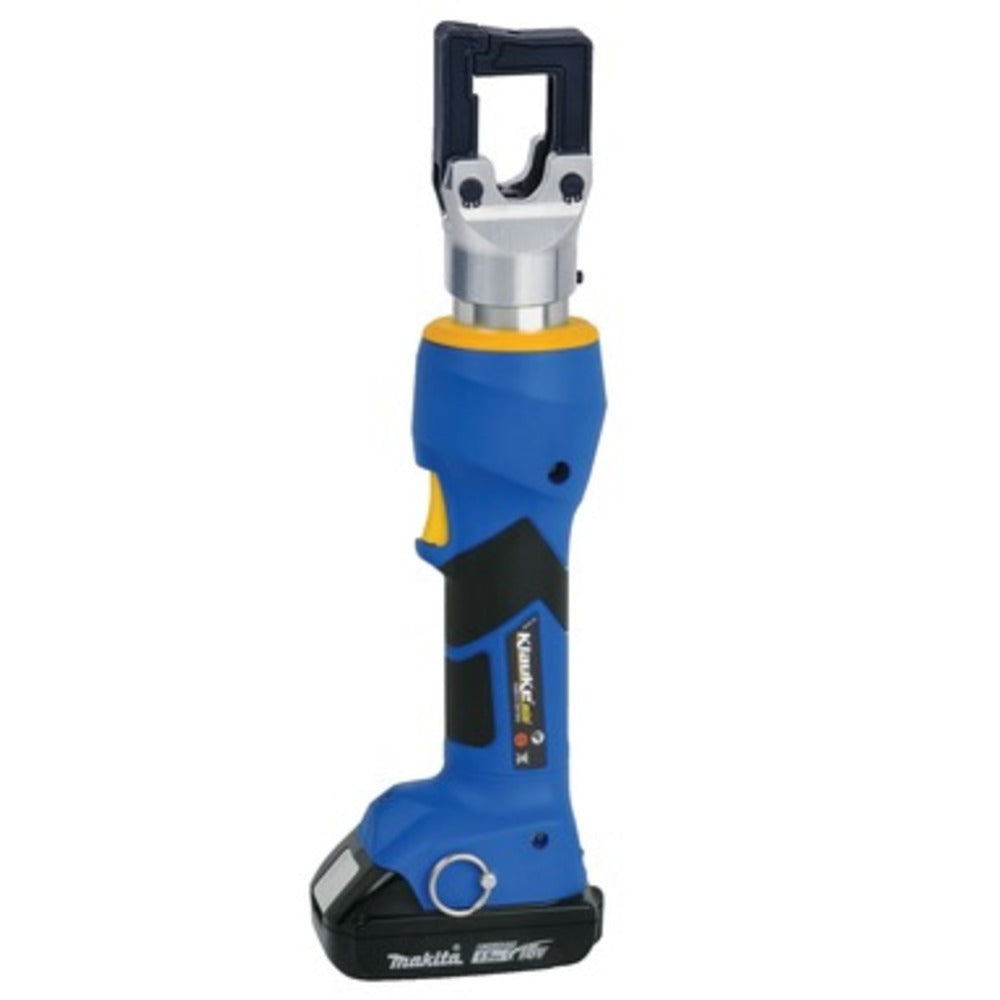

Klauke EK354CFM Battery Powered Hydraulic Crimping Tool 6-150 mm²

SKU : KLEK354CFM
MODEL : EK354CFM
WARRANTY : 1 Year
Klauke
AED 9,800.00 - AED 9,800.00
AED 9,800.00
AED 9,800.00 - AED 9,800.00
AED 9,800.00
(Including VAT)

Klauke EK354CFM Battery Powered Hydraulic Crimping Tool 6-150 mm²

The Klauke EK354CFM is a battery-powered hydraulic crimping tool designed for professional crimping of cable lugs and connectors. This model is supplied without dies, allowing the user to select the required crimping dies separately based on the cable size and application.

It is suitable for crimping applications from 6 mm² to 150 mm² and provides a strong 35 kN crimping force. The tool has a compact, slim crimping head, making it ideal for work in tight or confined spaces. It is commonly used in electrical installation, panel wiring, maintenance, utilities, and industrial cable termination jobs.

Features:

  • Battery powered hydraulic crimping tool
  • Supplied without crimping dies
  • Crimping range up to 6–150 mm²
  • 35 kN crimping force
  • Slim crimping head for narrow working areas
  • Closed head, flip-top style and rotatable design
  • One-button operation for easy and safe use
  • Visual and audible error indication
  • LED light for work area illumination
  • Battery charge and service display
  • Bluetooth data reading via Klauke Link® app
  • Compatible with 4-series interchangeable crimping dies

Model

EK354CFM

Product Type

Battery Powered Hydraulic Crimping Tool

Supply

Without Dies

Crimping Force

35 kN

Crimping Range

6–150 mm²

Stroke

9 mm

Crimping Cycle

Approx. 3–4 seconds

Battery Voltage

18 V

Battery Type

Li-ion

Head Type

Closed head, flip-top, rotatable

Die Compatibility

4-Series interchangeable crimping dies

Application

Cable lug and connector crimping

Suitable For

Electrical installation, maintenance, panel building, industrial use

EK354CFM-Datasheet : Download

1. What is the Klauke EK354CFM used for?

The Klauke EK354CFM is used for crimping cable lugs and connectors in electrical installation, panel wiring, maintenance, and industrial applications.

2. Does the EK354CFM come with crimping dies?

No, the EK354CFM is supplied without dies. The required crimping dies should be selected separately based on the cable size and application.

3. What is the crimping range of EK354CFM?

The tool is suitable for crimping cable sizes from 6 mm² to 150 mm².

4. What is the crimping force of this model?

The EK354CFM provides a crimping force of 35 kN for reliable and consistent crimping.

5. Is EK354CFM suitable for tight working spaces?

Yes, it has a slim, rotatable crimping head with a flip-top design, making it suitable for confined areas.

6. Which dies are compatible with EK354CFM?

The EK354CFM is compatible with Klauke 4-series interchangeable crimping dies, which need to be purchased separately.
