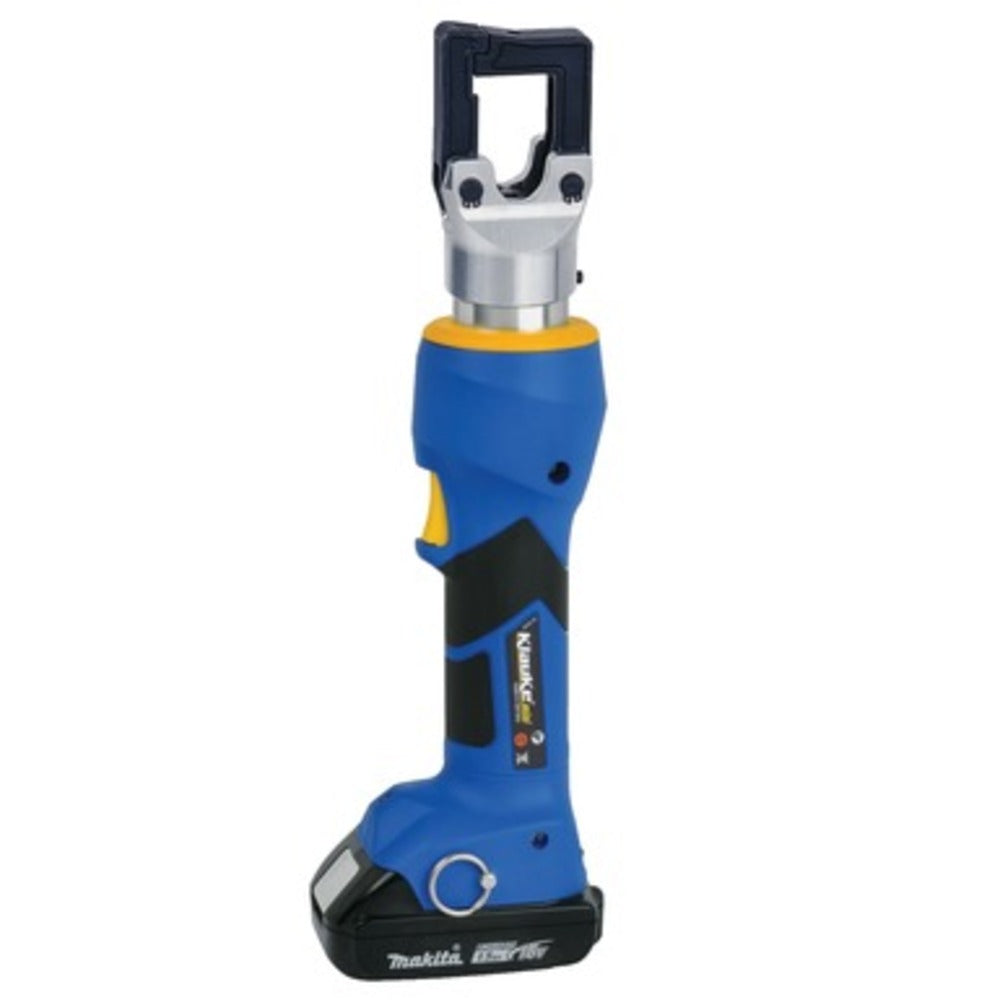

Klauke EK354MLSETHL
In stock

Klauke EK354MLSETHL Battery Powered Hydraulic Crimping 6 - 150Sqmm Tool with Dies

SKU : KLEK354MLSETHL
MODEL : EK354MLSETHL
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Klauke
AED 10,800.00 - AED 10,800.00
AED 10,800.00
AED 10,800.00 - AED 10,800.00
AED 10,800.00
(Including VAT)

Klauke EK354MLSETHL Battery Powered Hydraulic Crimping 6 - 150Sqmm Tool with Dies

The Klauke EK354MLSETHL is a professional battery-powered hydraulic crimping tool designed for crimping cable lugs and connectors from 6 mm² to 150 mm². It features a compact and slim crimping head, making it suitable for work in confined spaces. The tool operates on an 18 V battery platform and is supplied with crimping dies for different cable sizes, making it ideal for electrical installation, panel building, maintenance, and industrial cable termination work.

This tool provides reliable crimping performance with 35 kN crimping force, quick crimping cycles, and user-friendly one-button operation. It also supports data reading through Bluetooth and the Klauke Link® app, allowing users to monitor tool data and service information easily.

Features:

  • Battery-powered hydraulic crimping tool for fast and easy operation
  • Crimping range: 6 mm² to 150 mm²
  • Supplied with interchangeable crimping dies
  • 35 kN crimping force for reliable cable lug crimping
  • Slim and rotatable crimping head for use in narrow spaces
  • Closed head with flip-top design
  • One-button operation for simple and safe use
  • LED light for work area illumination
  • Visual and audible signals for error indication
  • Bluetooth data transfer via Klauke Link® app
  • Battery charge and service display for easy monitoring
  • Compatible with 18 V Bosch / Makita battery system depending on version

Model

EK354MLSETHL

Tool Type

Battery Powered Hydraulic Crimping Tool

Crimping Force

35 kN

Crimping Range

6 mm² to 150 mm²

Stroke

9 mm

Crimping Cycle

Approx. 3 to 4 seconds

Battery Voltage

18 V

Battery Capacity

2.0 Ah Li-ion

Battery Charging Time

Approx. 15 minutes

Weight Including Battery

Approx. 2.4 kg

Head Type

Closed head, flip-top, rotatable

Application

Cable lugs, connectors, electrical crimping

Suitable Dies

4-Series interchangeable crimping dies

Operating Temperature

-10 °C to +40 °C

EK354MLSETH-Datasheet : Download

1. What is the crimping range of Klauke EK354MLSETHL?

The Klauke EK354MLSETHL can crimp cable lugs and connectors from 6 mm² to 150 mm².

2. What is the crimping force of this tool?

This tool provides a crimping force of 35 kN, suitable for reliable electrical cable termination work.

3. Is the EK354MLSETHL suitable for narrow spaces?

Yes, it has a slim, rotatable crimping head, making it suitable for use in confined or limited-access areas.

4. Does this model come with crimping dies?

Yes, the EK354MLSETHL set is supplied with interchangeable crimping dies for different cable sizes.

5. Can tool data be checked digitally?

Yes, tool data can be read easily through Bluetooth using the Klauke Link® app.

6. What type of battery does it use?

It works on an 18 V Li-ion battery platform, depending on the version, with Bosch or Makita battery system compatibility.

Klauke EK354MLSETHL Battery Powered Hydraulic Crimping 6 - 150Sqmm Tool with Dies

The Klauke EK354MLSETHL is a professional battery-powered hydraulic crimping tool designed for crimping cable lugs and connectors from 6 mm² to 150 mm². It features a compact and slim crimping head, making it suitable for work in confined spaces. The tool operates on an 18 V battery platform and is supplied with crimping dies for different cable sizes, making it ideal for electrical installation, panel building, maintenance, and industrial cable termination work.

This tool provides reliable crimping performance with 35 kN crimping force, quick crimping cycles, and user-friendly one-button operation. It also supports data reading through Bluetooth and the Klauke Link® app, allowing users to monitor tool data and service information easily.

Features:

  • Battery-powered hydraulic crimping tool for fast and easy operation
  • Crimping range: 6 mm² to 150 mm²
  • Supplied with interchangeable crimping dies
  • 35 kN crimping force for reliable cable lug crimping
  • Slim and rotatable crimping head for use in narrow spaces
  • Closed head with flip-top design
  • One-button operation for simple and safe use
  • LED light for work area illumination
  • Visual and audible signals for error indication
  • Bluetooth data transfer via Klauke Link® app
  • Battery charge and service display for easy monitoring
  • Compatible with 18 V Bosch / Makita battery system depending on version

Model

EK354MLSETHL

Tool Type

Battery Powered Hydraulic Crimping Tool

Crimping Force

35 kN

Crimping Range

6 mm² to 150 mm²

Stroke

9 mm

Crimping Cycle

Approx. 3 to 4 seconds

Battery Voltage

18 V

Battery Capacity

2.0 Ah Li-ion

Battery Charging Time

Approx. 15 minutes

Weight Including Battery

Approx. 2.4 kg

Head Type

Closed head, flip-top, rotatable

Application

Cable lugs, connectors, electrical crimping

Suitable Dies

4-Series interchangeable crimping dies

Operating Temperature

-10 °C to +40 °C

EK354MLSETH-Datasheet : Download

1. What is the crimping range of Klauke EK354MLSETHL?

The Klauke EK354MLSETHL can crimp cable lugs and connectors from 6 mm² to 150 mm².

2. What is the crimping force of this tool?

This tool provides a crimping force of 35 kN, suitable for reliable electrical cable termination work.

3. Is the EK354MLSETHL suitable for narrow spaces?

Yes, it has a slim, rotatable crimping head, making it suitable for use in confined or limited-access areas.

4. Does this model come with crimping dies?

Yes, the EK354MLSETHL set is supplied with interchangeable crimping dies for different cable sizes.

5. Can tool data be checked digitally?

Yes, tool data can be read easily through Bluetooth using the Klauke Link® app.

6. What type of battery does it use?

It works on an 18 V Li-ion battery platform, depending on the version, with Bosch or Makita battery system compatibility.
