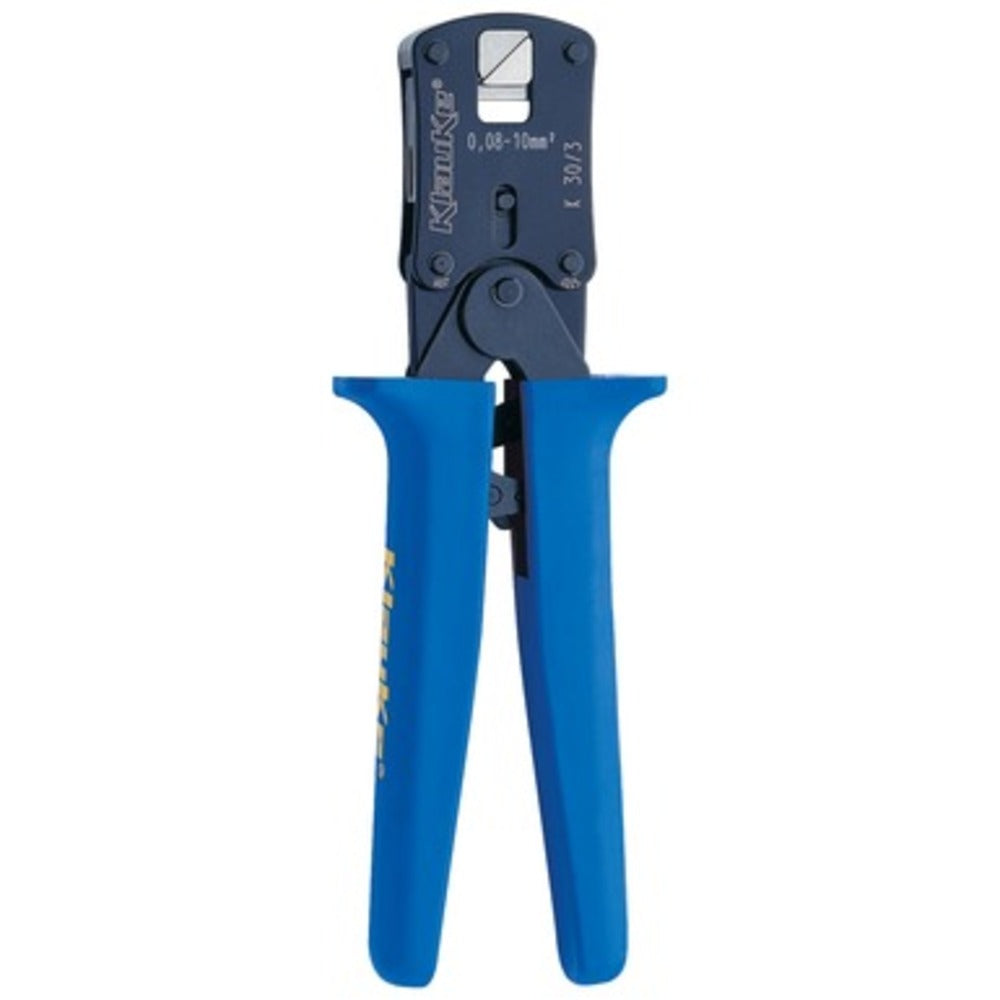

Klauke K30/3 Crimping Tool

Klauke K30/3 Crimping Tool for Cable End-Sleeves & Twin Cable End-Sleeves, 0.08–10 mm²

SKU : KLK303
MAKE : KLAUKE
MODEL : K30/3
WARRANTY : 1 Year
Klauke
AED 890.00 - AED 890.00
AED 890.00
AED 890.00 - AED 890.00
AED 890.00
(Including VAT)

Klauke K30/3 Crimping Tool for Cable End-Sleeves & Twin Cable End-Sleeves, 0.08–10 mm²

The Klauke K 30/3 is a professional manual crimping tool designed for reliable crimping of cable end-sleeves and twin cable end-sleeves. It features automatic cross-section adjustment and a square crimping profile, making it suitable for box terminals and spring clamp technology. Its ergonomic design and ratchet mechanism provide consistent and controlled crimping results.

Features:

  • Crimping range: 0.08–10 mm² for cable end-sleeves
  • Twin cable end-sleeve range: 2 × 0.25–2 × 4 mm²
  • Square crimping profile for box terminals and spring clamp technology
  • Automatic cross-section adjustment for different cable sizes
  • One crimping profile covering 0.08–10 mm²
  • Ratchet mechanism for consistent crimping results
  • Lateral insertion for convenient side crimping
  • Ergonomic handle with slip guard
  • Inscription panel for easy tool identification
  • Compact 190 mm length
  • Lightweight design weighing approximately 0.3 kg
  • Suitable for professional electrical installation and wiring applications

Model

Klauke K 30/3

Tool Type

Manual Crimping Tool

Application

Cable End-Sleeves & Twin Cable End-Sleeves

Crimping Range – Cable End-Sleeves

0.08–10 mm²

Crimping Range – Twin End-Sleeves

2 × 0.25–2 × 4 mm²

Crimping Profile

Square

Cross-Section Adjustment

Automatic

Crimping Mechanism

Ratchet

Insertion Type

Lateral / Side Insertion

Length

190 mm

Weight

0.3 kg

Part Number

K303

Optional Carrying Case

Steel Carrying Case – SK30L




K30/3-Datasheet : Download

1. What is the Klauke K 30/3 used for?

It is used for crimping cable end-sleeves and twin cable end-sleeves.

2. What is the crimping range of the K 30/3?

The cable end-sleeve crimping range is 0.08–10 mm².

3. What is the twin cable end-sleeve range?

It supports twin cable end-sleeves from 2 × 0.25 to 2 × 4 mm².

4. What type of crimp does the tool produce?

It produces a square crimp, suitable for box terminals and spring clamp technology.

5. Does the tool require manual cross-section adjustment?

No. It features automatic cross-section adjustment for different cable sizes.

6. What is the weight and length of the tool?

The K 30/3 is approximately 190 mm long and weighs 0.3 kg.

Klauke K30/3 Crimping Tool for Cable End-Sleeves & Twin Cable End-Sleeves, 0.08–10 mm²

The Klauke K 30/3 is a professional manual crimping tool designed for reliable crimping of cable end-sleeves and twin cable end-sleeves. It features automatic cross-section adjustment and a square crimping profile, making it suitable for box terminals and spring clamp technology. Its ergonomic design and ratchet mechanism provide consistent and controlled crimping results.

Features:

  • Crimping range: 0.08–10 mm² for cable end-sleeves
  • Twin cable end-sleeve range: 2 × 0.25–2 × 4 mm²
  • Square crimping profile for box terminals and spring clamp technology
  • Automatic cross-section adjustment for different cable sizes
  • One crimping profile covering 0.08–10 mm²
  • Ratchet mechanism for consistent crimping results
  • Lateral insertion for convenient side crimping
  • Ergonomic handle with slip guard
  • Inscription panel for easy tool identification
  • Compact 190 mm length
  • Lightweight design weighing approximately 0.3 kg
  • Suitable for professional electrical installation and wiring applications

Model

Klauke K 30/3

Tool Type

Manual Crimping Tool

Application

Cable End-Sleeves & Twin Cable End-Sleeves

Crimping Range – Cable End-Sleeves

0.08–10 mm²

Crimping Range – Twin End-Sleeves

2 × 0.25–2 × 4 mm²

Crimping Profile

Square

Cross-Section Adjustment

Automatic

Crimping Mechanism

Ratchet

Insertion Type

Lateral / Side Insertion

Length

190 mm

Weight

0.3 kg

Part Number

K303

Optional Carrying Case

Steel Carrying Case – SK30L




K30/3-Datasheet : Download

1. What is the Klauke K 30/3 used for?

It is used for crimping cable end-sleeves and twin cable end-sleeves.

2. What is the crimping range of the K 30/3?

The cable end-sleeve crimping range is 0.08–10 mm².

3. What is the twin cable end-sleeve range?

It supports twin cable end-sleeves from 2 × 0.25 to 2 × 4 mm².

4. What type of crimp does the tool produce?

It produces a square crimp, suitable for box terminals and spring clamp technology.

5. Does the tool require manual cross-section adjustment?

No. It features automatic cross-section adjustment for different cable sizes.

6. What is the weight and length of the tool?

The K 30/3 is approximately 190 mm long and weighs 0.3 kg.
