AC High Voltage Test Kit KV15-80D
Fwd. Delivery In stock

AC High Voltage Test Kit KV15-80D

SKU : KV15-80D
MAKE : T&R TEST EQUIPMENT
MODEL : KV15-80D
AVAILABILITY : IN STOCK
T&R Test Equipment

AC High Voltage Test Kit KV15-80D

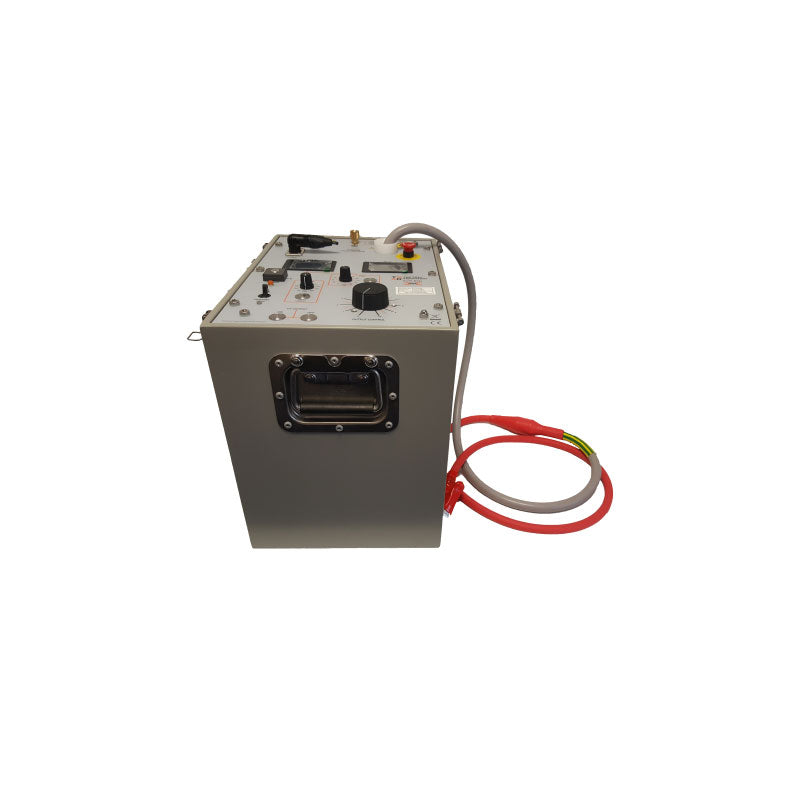

The KV15-80D Mk3 Test Set functions as a high voltage general purpose test instrument designed specifically for testing insulation systems and measuring breakdown voltage on electrical plant and components. It offers a variable output voltage range of zero to 15kV, ensuring accurate metering for both the output voltage and current. Additionally, it includes a zero-voltage interlock feature that requires the voltage control to be set at zero before energizing the output.

Features :

  • Output voltage and current are metered by large, accurate true RMS digital meters
  • 0-15kV output voltage
  • 1.2kVA output capability
  • Key operated supply switch to prevent unauthorised operation
  • Dual overload protection
  • Variable electronic trip – 10-110% of rated output
  • Test timer
  • Voltage and current metering
Model

KV15-80D
Output voltage

0-15 kV
Maximum Current

80mA
