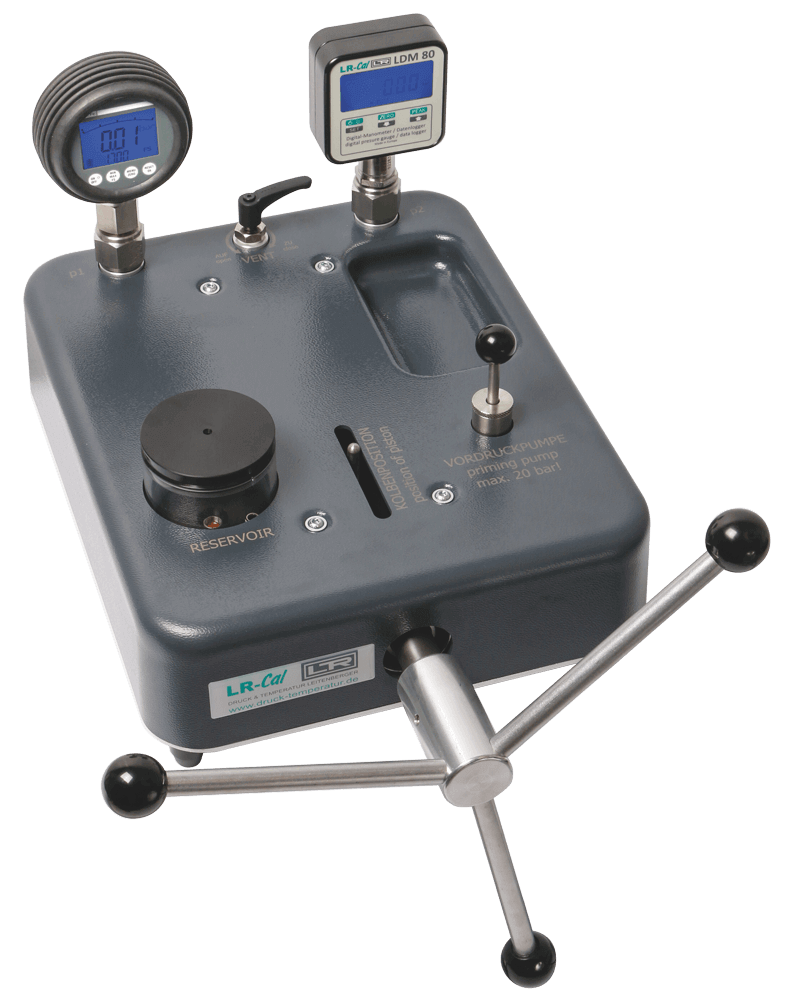

LR-Cal LSP 1600-H Pressure comparison test pump
MAKE : LR CAL
MODEL : LSP 1600-H
WARRANTY : 1 Year
LR-Cal LSP 1600-H Pressure comparison test pump
The LR-Cal LSP 1600-H is a high-precision hydraulic pressure comparison test pump designed to generate manual test pressures up to 1600 bar (23,200 psi). This robust and reliable pump is ideal for calibrating and verifying the accuracy of both mechanical and electronic pressure measuring instruments. It is suitable for use in laboratories, workshops, or directly at the measurement point on-site. The LR-Cal LSP 1600-H ensures accurate pressure generation with minimal effort, making it an essential tool for professionals requiring precise calibration in high-pressure environments.
Features
- High-Pressure Capability: Capable of generating hydraulic pressures up to 1600 bar (23,200 psi) for accurate calibration.
- Dual Pump System: Features both a spindle pump for fine pressure adjustments and a priming pump for quick pressure setup.
- Durable Construction: Built with high-quality materials including stainless steel, aluminum, Viton, and NBR, ensuring long-lasting performance.
- Compact and Portable Design: Easy to transport and use in various settings, with a base plate and rigid housing for stability.
- Contamination Protection: Equipped with strainer dirt collectors in the pressure ports and fluid reservoir to minimize the risk of contamination.
- Versatile Fluid Compatibility: Operates with mineral oil-based hydraulic fluids or distilled water, with versions available for aggressive media like SKYDROL® brake fluids.
| Pressure Range | Up to 1600 bar (23,200 psi)
|
| Operating Fluid | Mineral oil-based hydraulic fluids or distilled water
|
| Pressure Connections | 2 x 1/2" BSP female, rotating (includes strainers and gaskets)
|
| Fluid Reservoir Capacity | 200 cm³
|
| Piston Diameter | 8 mm
|
| Spindle Stroke | Approx. 3.9 cm³ per turn
|
| Dimensions |
|
| Depth | 388 mm without star-handle; 490 mm with star-handle
|
| Width | 322 mm
|
| Height | 167 mm without star-handle; 337 mm with star-handle
|
| Weight | 10.5 kg
|
| Materials | Stainless steel, aluminum, Viton, NBR, and plastics
|
LR-Cal LSP 1600-H Pressure comparison test pump
The LR-Cal LSP 1600-H is a high-precision hydraulic pressure comparison test pump designed to generate manual test pressures up to 1600 bar (23,200 psi). This robust and reliable pump is ideal for calibrating and verifying the accuracy of both mechanical and electronic pressure measuring instruments. It is suitable for use in laboratories, workshops, or directly at the measurement point on-site. The LR-Cal LSP 1600-H ensures accurate pressure generation with minimal effort, making it an essential tool for professionals requiring precise calibration in high-pressure environments.
Features
- High-Pressure Capability: Capable of generating hydraulic pressures up to 1600 bar (23,200 psi) for accurate calibration.
- Dual Pump System: Features both a spindle pump for fine pressure adjustments and a priming pump for quick pressure setup.
- Durable Construction: Built with high-quality materials including stainless steel, aluminum, Viton, and NBR, ensuring long-lasting performance.
- Compact and Portable Design: Easy to transport and use in various settings, with a base plate and rigid housing for stability.
- Contamination Protection: Equipped with strainer dirt collectors in the pressure ports and fluid reservoir to minimize the risk of contamination.
- Versatile Fluid Compatibility: Operates with mineral oil-based hydraulic fluids or distilled water, with versions available for aggressive media like SKYDROL® brake fluids.
| Pressure Range | Up to 1600 bar (23,200 psi)
|
| Operating Fluid | Mineral oil-based hydraulic fluids or distilled water
|
| Pressure Connections | 2 x 1/2" BSP female, rotating (includes strainers and gaskets)
|
| Fluid Reservoir Capacity | 200 cm³
|
| Piston Diameter | 8 mm
|
| Spindle Stroke | Approx. 3.9 cm³ per turn
|
| Dimensions |
|
| Depth | 388 mm without star-handle; 490 mm with star-handle
|
| Width | 322 mm
|
| Height | 167 mm without star-handle; 337 mm with star-handle
|
| Weight | 10.5 kg
|
| Materials | Stainless steel, aluminum, Viton, NBR, and plastics
|
