Hikmicro Thermal Camera M60
In stock

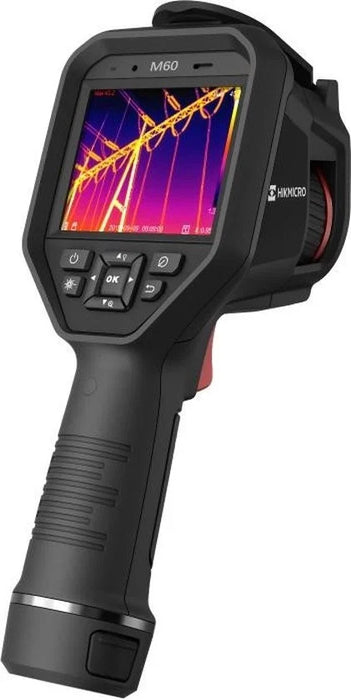

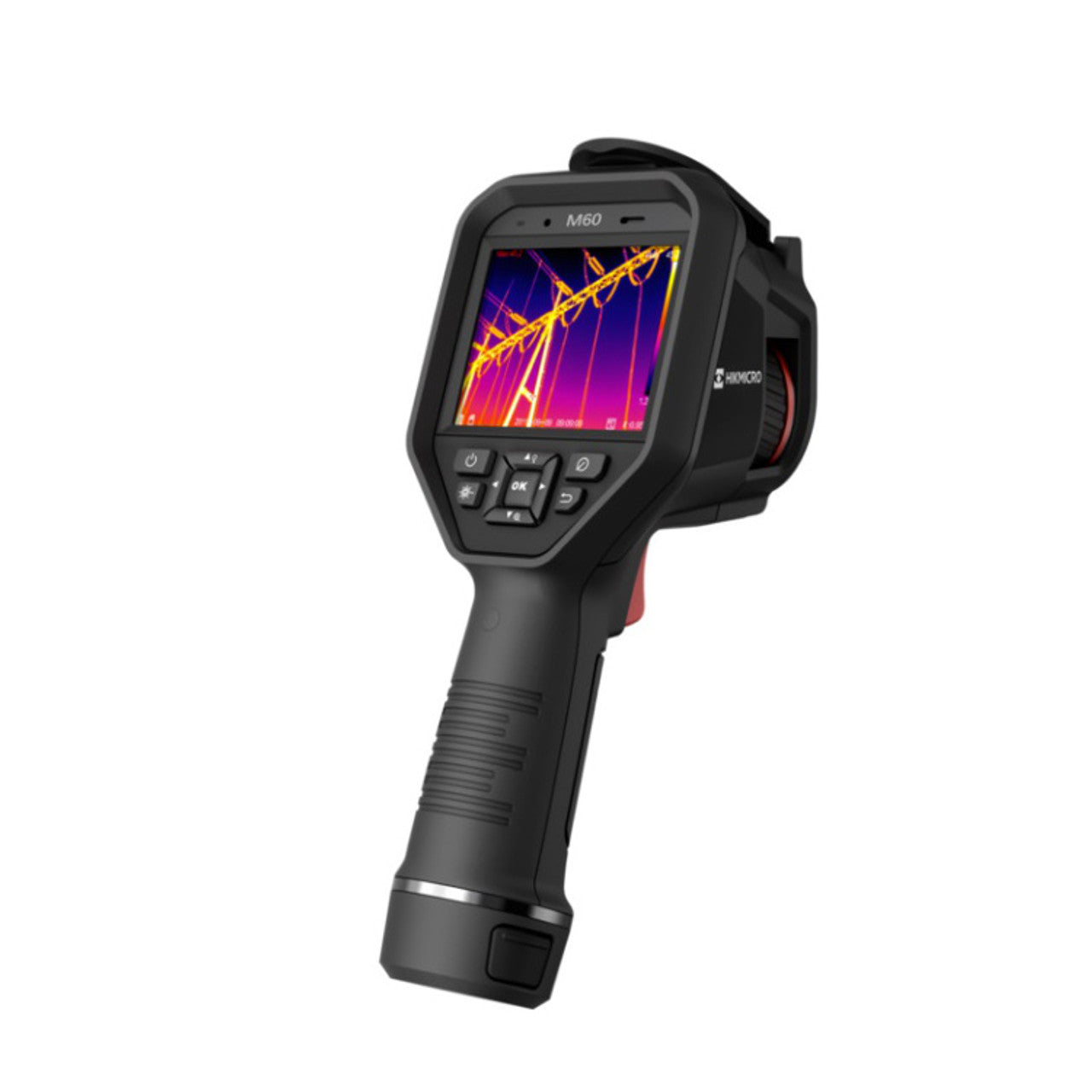

M60 Handheld Thermography Camera

SKU : HIK-M60-640TH-IRPRO
MAKE : HIKMICRO
MODEL : M60
WARRANTY : 2 Years
AVAILABILITY : IN STOCK
Hikmicro
AED 0.00 - AED 0.00
AED 0.00
AED 16,890.00
AED 16,890.00 - AED 16,890.00
AED 16,890.00
(Including VAT)

M60 Handheld Thermography Camera


The HIKMICRO M60 is a high-performance handheld thermal imaging camera designed for precise temperature measurement across a wide range of industrial applications, including building inspection, HVAC, and automotive diagnostics. It features a 640 × 480 resolution thermal detector, SuperIR enhancement up to 1280 × 960, and a high-accuracy temperature range from -20°C to 650°C. Equipped with a 3.5'' LCD touchscreen, bi-spectrum image fusion, 8 MP visual camera, and digital zoom up to 8x, it ensures clear, detailed thermal analysis. Additional features include laser and LED light supplements, multiple color palettes, and remote access via a mobile app for fast reporting and image sharing.


 Features:



  • 640 × 480 thermal resolution (SuperIR up to 1280 × 960)

  • Wide temperature range: -20°C to 650°C

  • High accuracy: ±2°C or ±2%

  • 8 MP visual camera with bi-spectrum fusion

  • 3.5" LCD touchscreen

  • LED and laser light supplements

  • 1.0x to 8.0x digital zoom

  • Multiple color palettes

  • Remote access and quick report via app



HIKMICRO G61 Handheld Thermal Camera



IR Resolution



640 × 480 (307,200 pixels)

SuperIR Resolution



1280 × 960 (1,228,800 pixels)

NETD



< 35 mK (@ 30 °C, F#=1.0)

Image Frequency



50 Hz

Detector Pitch



17 µm

Spectral Range



7.5 to 14 µm

Focal Length



25 mm (optional lenses available)

F-number



F 1.0

Field of View (FOV)



25° × 19° (optional lenses available)

Spatial Resolution (IFOV)



0.68 mrad (optional lenses available)

Min. Focus Distance



0.25 m (0.82 ft) (optional lenses available)



  • E09-13-1S1P26650
  • HM-52027C
  • HM-SP01-POUCH

  • HM-2925ZJ-TM01-BRACKET



Data sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1: What is the thermal resolution of the HIKMICRO M60?

The M60 features a high-sensitivity thermal detector with 640 × 480 resolution and supports SuperIR enhancement up to 1280 × 960.

Q2: What is the temperature measurement range?

The camera can measure temperatures from -20°C to 650°C with an accuracy of ±2°C or ±2%.

Q3: Can the M60 capture regular images as well?

Yes, it includes an 8 MP visual camera and supports bi-spectrum image fusion and picture-in-picture mode.

Q4: Does it support digital zoom?

Yes, it offers 1.0x to 8.0x continuous digital zoom.

Q5: Can I access data remotely?

Yes, the M60 supports remote album access, download, and quick reporting via the mobile app.

Q6: Is the display touchscreen?

Yes, it features a 3.5-inch LCD touchscreen for intuitive control and image viewing.

Q7: What industries is the M60 suitable for?

It's ideal for building inspection, HVAC maintenance, automotive diagnostics, and general industrial use.

M60 Handheld Thermography Camera


The HIKMICRO M60 is a high-performance handheld thermal imaging camera designed for precise temperature measurement across a wide range of industrial applications, including building inspection, HVAC, and automotive diagnostics. It features a 640 × 480 resolution thermal detector, SuperIR enhancement up to 1280 × 960, and a high-accuracy temperature range from -20°C to 650°C. Equipped with a 3.5'' LCD touchscreen, bi-spectrum image fusion, 8 MP visual camera, and digital zoom up to 8x, it ensures clear, detailed thermal analysis. Additional features include laser and LED light supplements, multiple color palettes, and remote access via a mobile app for fast reporting and image sharing.


 Features:



  • 640 × 480 thermal resolution (SuperIR up to 1280 × 960)

  • Wide temperature range: -20°C to 650°C

  • High accuracy: ±2°C or ±2%

  • 8 MP visual camera with bi-spectrum fusion

  • 3.5" LCD touchscreen

  • LED and laser light supplements

  • 1.0x to 8.0x digital zoom

  • Multiple color palettes

  • Remote access and quick report via app



HIKMICRO G61 Handheld Thermal Camera



IR Resolution



640 × 480 (307,200 pixels)

SuperIR Resolution



1280 × 960 (1,228,800 pixels)

NETD



< 35 mK (@ 30 °C, F#=1.0)

Image Frequency



50 Hz

Detector Pitch



17 µm

Spectral Range



7.5 to 14 µm

Focal Length



25 mm (optional lenses available)

F-number



F 1.0

Field of View (FOV)



25° × 19° (optional lenses available)

Spatial Resolution (IFOV)



0.68 mrad (optional lenses available)

Min. Focus Distance



0.25 m (0.82 ft) (optional lenses available)



  • E09-13-1S1P26650
  • HM-52027C
  • HM-SP01-POUCH

  • HM-2925ZJ-TM01-BRACKET



Data sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1: What is the thermal resolution of the HIKMICRO M60?

The M60 features a high-sensitivity thermal detector with 640 × 480 resolution and supports SuperIR enhancement up to 1280 × 960.

Q2: What is the temperature measurement range?

The camera can measure temperatures from -20°C to 650°C with an accuracy of ±2°C or ±2%.

Q3: Can the M60 capture regular images as well?

Yes, it includes an 8 MP visual camera and supports bi-spectrum image fusion and picture-in-picture mode.

Q4: Does it support digital zoom?

Yes, it offers 1.0x to 8.0x continuous digital zoom.

Q5: Can I access data remotely?

Yes, the M60 supports remote album access, download, and quick reporting via the mobile app.

Q6: Is the display touchscreen?

Yes, it features a 3.5-inch LCD touchscreen for intuitive control and image viewing.

Q7: What industries is the M60 suitable for?

It's ideal for building inspection, HVAC maintenance, automotive diagnostics, and general industrial use.
