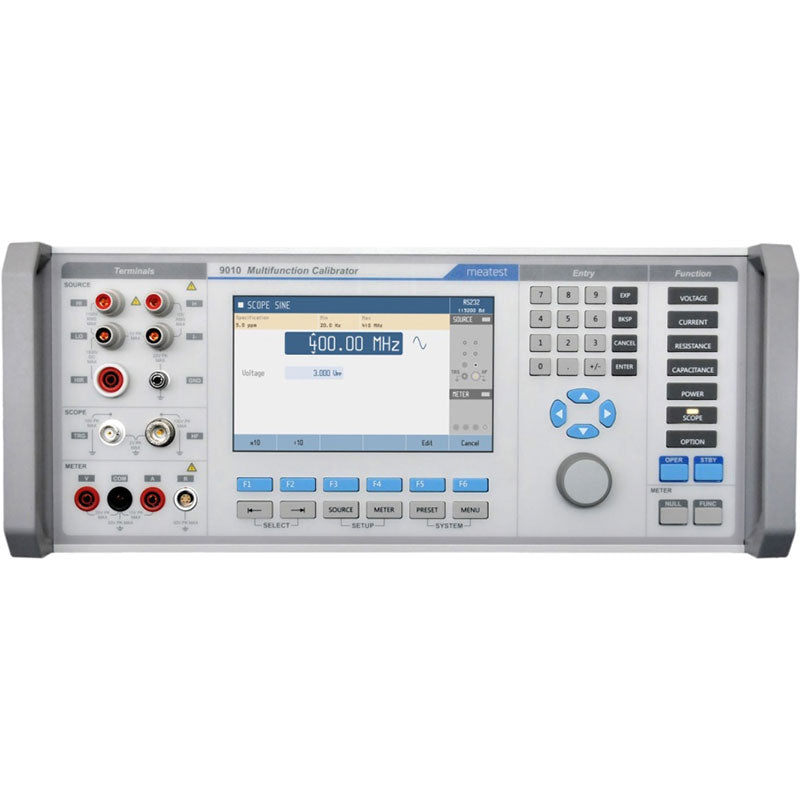

Meatest MultiProduct Calibrator 9010
In stock

Multi Product Calibrator Meates 9010

SKU : MMPC9010
MAKE : MEATEST
MODEL : 9010
AVAILABILITY : IN STOCK
Meatest
AED 0.00 - AED 0.00
AED 0.00
AED 86,000.00
AED 86,000.00 - AED 86,000.00
AED 86,000.00
(Including VAT)

Multi Product Calibrator Meates 9010

35 ppm AC/DC multifunction calibrator for multimeters, power meters and generally all kinds of electric meters. Implementing modular design, 9010 can be further customized to calibrate oscilloscopes, insulation testers, sources and transducers.

  •  35 ppm accuracy
  •  400 MHz scope option
  •  Power quality functions, voltage from current

Multifunction calibrator 9010 is designed as universal calibration tool for electrical calibration laboratories, covering most of their workload like multimeters, clamp meters, ohm meters, power meters and power analysers, energy meters, transducers, insulation testers, process meters, scopes and many others. High load capacity of voltage output (up to 50 mA) allows for calibration of high-consumption analogue meters. Installed harmonic and non-harmonic shape signals allow for testing meter sensitivity to distorted signals by a signal with various crest factor. Advancing from previous M14x calibrator series, 9010 can now calibrate even 400 MHz scopes, 1.5 kV insulation testers and 287 kW power meters. On the other hand we kept all the popular functions including complete transducer and external sensor calibration (strain gauge, pressure, torsion, force, etc.) using built-in multimeter, automatic uncertainty calculation, remote control and easy recalibration.

MeaTest Multi Product Calibrator

DC Voltage

0 – 1050 V
± 35 ppm / year
AC Voltage

1 mV – 1050 V, 15 Hz – 300 kHz
sinusoidal & non-sinusoidal waveforms, harmonics
± 250 ppm / year
DC Current

0 – 20.5 A (1025 A with 140-50 Current Coil)
± 150 ppm / year
AC Current

10 uA – 20.5 A, 15 Hz – 10 kHz (1025 A with 140-50 Current Coil)
sinusoidal & non-sinusoidal waveforms, harmonics
± 500 ppm / year
DC Power & Energy

40 uW – 5.74 kW (287 kW with 140-50 Current Coil)
± 210 ppm / year
AC Power & Energy

40 uW – 5.74 kW, 15 – 1000 Hz (287 kW with 140-50 Current Coil)
50 harmonic products, voltage from current
± 730 ppm / year
Resistance

0 Ω – 1.1 GΩ, resolution 6½ digits
± 15 ppm / year
Insulation Resistance

100 kΩ – 100 GΩ
rated up to 1.5 kV
Capacitance

800 pF – 120 mF, resolution 6½ digits
± 0.25 % / year
Temperature

TC BCDEG2JKMNRST with cold junction compensation
RTD ± 0.03°C / year
Frequency

0.1 Hz – 400 MHz
± 2.5 ppm / year
Download Datasheet : Download
