Multi-Use Data Transmitter
In stock

Multifunction Transmitter Sauermann SI-C320

SKU : SMTSIC320
MAKE : SAUERMANN
MODEL : SI-C320
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Sauermann
AED 2,000.00 - AED 2,000.00
AED 2,000.00
AED 2,600.00
AED 2,600.00 - AED 2,600.00
AED 2,600.00
(Including VAT)

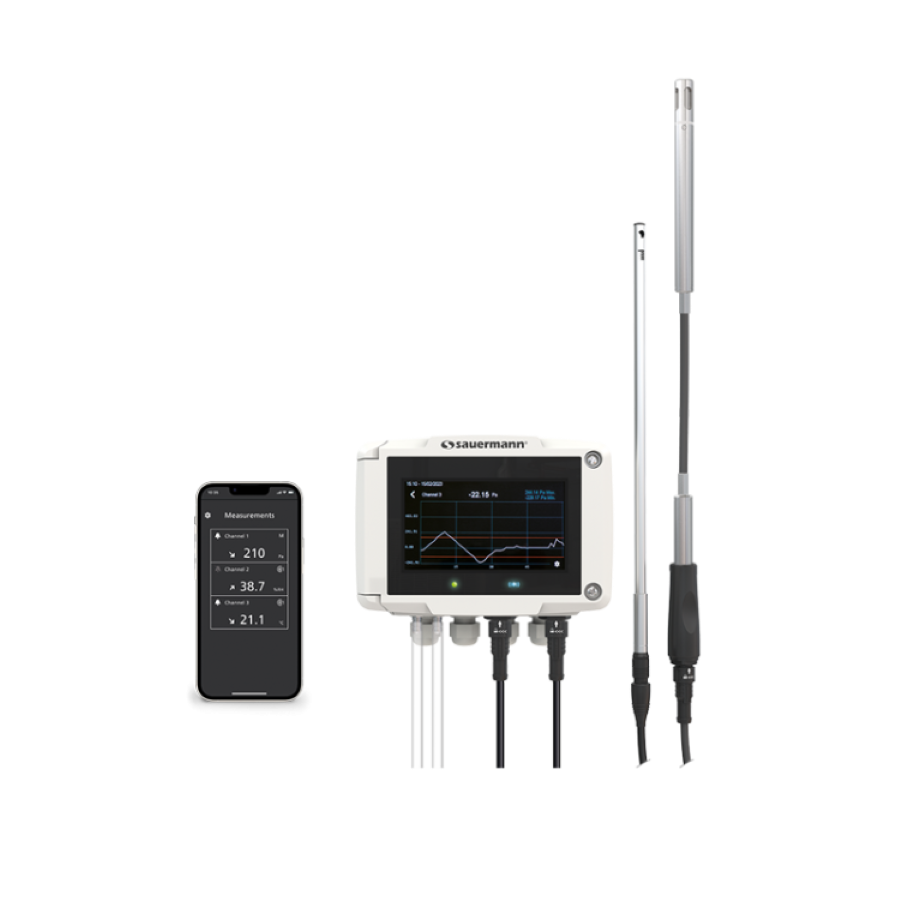

Multifunction Transmitter Sauermann SI-C320

The SI-C320 Multifunction Transmitter is a highly versatile and advanced instrument designed for monitoring and controlling various environmental and HVAC parameters in cleanrooms, regulated environments, and industrial applications. This transmitter is equipped with multiple inputs for external probes, configurable analog outputs, and supports both wired and wireless communication. With its robust IP66-rated housing and customizable settings, the SI-C320 is ideal for applications that demand precise regulation and monitoring of air parameters, ensuring compliance with the strictest industry standards.

Features

  • Multi-Parameter Measurement: Capable of monitoring differential pressure, temperature, relative humidity, air velocity, and more, depending on the connected probes.
  • Touchscreen Interface: Features a user-friendly color touchscreen display that provides real-time data visualization and easy access to configuration settings.
  • Wireless Communication: Optional wireless module allows for remote monitoring and configuration via a mobile app, enhancing convenience and flexibility.
  • Multiple Analog Outputs: Includes four configurable analog outputs (4-20 mA, 0-20 mA, 0-10 V, 0-5 V) for seamless integration with various control systems.
  • Modbus RTU Protocol: Equipped with an RS-485 interface for integration into PLCs and BMS systems using the Modbus RTU communication protocol.
  • Customizable Alarms: Supports up to four configurable alarms with visual and audible alerts, ensuring immediate notification of any deviations.
  • Rugged Design: IP66-rated enclosure, resistant to vaporized hydrogen peroxide (VHP), ensures durability and protection in harsh environments.
Differential Pressure

 Ranges available from -50 to +10,000 Pa (-0.2 to +40.0 inH2O)



Temperature

 -200 to +1300°C (-328 to 2372°F) depending on the connected probe



Relative Humidity

 0 to 100% RH



Air Velocity

 Up to 100 m/s (328 fps)



CO2

 0 to 10,000 ppm



CO

 0 to 500 ppm



Outputs

 4 x analog outputs (0-10 V, 0-5 V, 4-20 mA, 0-20 mA)



Communication

 RS-485 interface, Modbus RTU protocol



Wireless Range

 Up to 15 meters (50 feet) depending on smartphone signal strength



Power Supply

 24 VAC/VDC ±10%



Operating Temperature

 -10 to +50°C (14 to 122°F)



Housing Material

 ABS V0, IP66-rated



Dimensions

 158.25 x 135.80 x 76.65 mm



Weight

 626 g



  • Included:
    • Wall-mount fixing plate
    • Terminal blocks for power and output connections
    • Instruction manual
  • Optional:
    • Wireless communication module (Si-ACC-WLM)
    • Relay module with SPDT relays (Si-M4R)
    • USB-mini DIN interface for PC configuration (Si-ACC-USB-CC)
    • DIN rail mounting kit (Si-ACC-rail)
    • Protective shield for outdoor installations (Si-ACC-OS)
    • Class 2 power supply units (KI-AL-750-A for 24 VAC, KI-AL-1000-C for 24 VDC)
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1: What applications is the SI-C320 Multifunction Transmitter suitable for?

A1: The SI-C320 is ideal for cleanrooms, HVAC systems, industrial environments, and regulated areas where precise monitoring of differential pressure, temperature, humidity, and air quality is critical.

Q2: Can the SI-C320 be configured remotely?

A2: Yes, with the optional wireless communication module, the SI-C320 can be remotely configured and monitored via a mobile app, enhancing flexibility and convenience.

Q3: What is the protection rating of the SI-C320?

A3: The SI-C320 features an IP66-rated housing, making it resistant to dust, water, and vaporized hydrogen peroxide (VHP), ensuring durability in harsh environments.

Q4: How many alarms can the SI-C320 handle?

A4: The SI-C320 can manage up to four configurable alarms, providing visual and audible alerts to ensure immediate response to any parameter deviations.

Q5: What communication protocols does the SI-C320 support?

A5: The SI-C320 supports the Modbus RTU protocol via its RS-485 interface, allowing for easy integration into PLCs and BMS systems.

Q6: Is the SI-C320 capable of data logging?

A6: Yes, the SI-C320 can record data, which can then be downloaded via the Sauermann Control software or mobile app, providing comprehensive monitoring and analysis capabilities.
