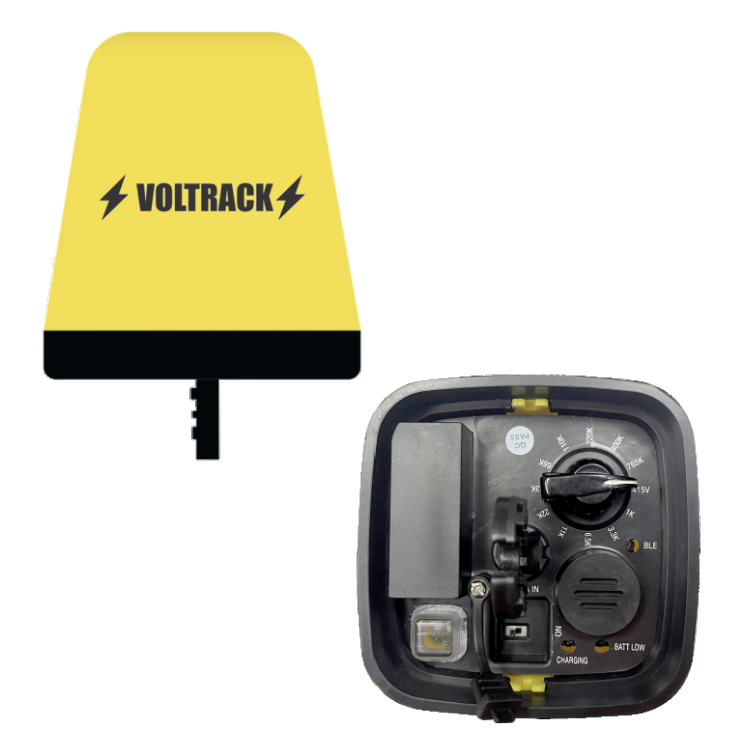

Non-Contact High Voltage Detector 765kV - Voltrack T5

MODEL : Voltrack
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Taurus powertronics
AED 3,360.00 - AED 3,360.00
AED 3,360.00
AED 3,360.00 - AED 3,360.00
AED 3,360.00
(Including VAT)

Non-Contact High Voltage Detector 765kV - Voltrack T5

Voltrack is a non-contact high voltage and induced voltage detector designed for safe detection of AC live voltage on overhead lines, substations, transmission and distribution networks. It detects voltage presence from a safe distance without direct contact, helping maintenance personnel confirm live or dead conditions before work begins. The device ensures maximum safety in HV and EHV environments.

Feartures:

  • Non-contact detection of AC and induced voltage
  • Voltage range: 230 V to 765 kV AC
  • Safe detection from a distance (beyond arcing zone)
  • Visual LED and audible buzzer indication
  • Adjustable sensitivity (manual / Bluetooth)
  • Automatic continuous self-test
  • Indoor and outdoor use
  • Universal hot-stick (sunrise) connector

Product Name

Voltrack – Non-Contact High Voltage & Induced Voltage Detector

Detection Type

Non-contact AC voltage detection

Voltage Range

230 V to 765 kV AC

Frequency

50 / 60 Hz

Detection Distance

Beyond arcing distance (model & voltage dependent)

Indication

Visual LED and audible buzzer

Sensitivity Adjustment

Manual / Bluetooth (optional)

Self-Test

Automatic continuous self-test

Mounting

Universal sunrise (hot-stick) connector

Application

Overhead lines, substations, transmission & distribution networks

Operating Environment

Indoor & outdoor

Compliance

IEC standards (type tested)

Data-Sheet : Download

1. What does the Voltrack detect?

Voltrack detects the presence of AC high voltage and induced voltage on live conductors without direct contact.

2. What is the voltage detection range?

The device can detect voltages from 230 V up to 765 kV AC.

3. Is direct contact with the conductor required?

No. Voltrack is a non-contact detector and works from a safe distance beyond the arcing zone.

4. Can it be used on both overhead and underground lines?

Yes. It is suitable for overhead lines, substations, and underground cables at URD test points.

5. How does the user know voltage is present?

The device provides visual LED indication and an audible buzzer when voltage is detected.

6. Is the device safe for outdoor use?

Yes. Voltrack is designed for both indoor and outdoor applications and includes continuous self-testing for reliability.
